Hardware options installation 55
13. Connect each power cord to the server.
14. Connect each power cord to the power source.
15. Power up the server (on page 18).
GPU supporting holder option
The server supports both K2200 and K4200 GPU cards. Install the GPU card in the first PCIe slot only.
This option is only required if you install the K4200 GPU card.
To install the component:
1. Power down the server (on page 18).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 18).
5. If installed, remove the PCI air baffle (on page 22).
6. Remove the system air baffle (on page 23).
7. Remove the GPU bracket and retain the screws for future use.

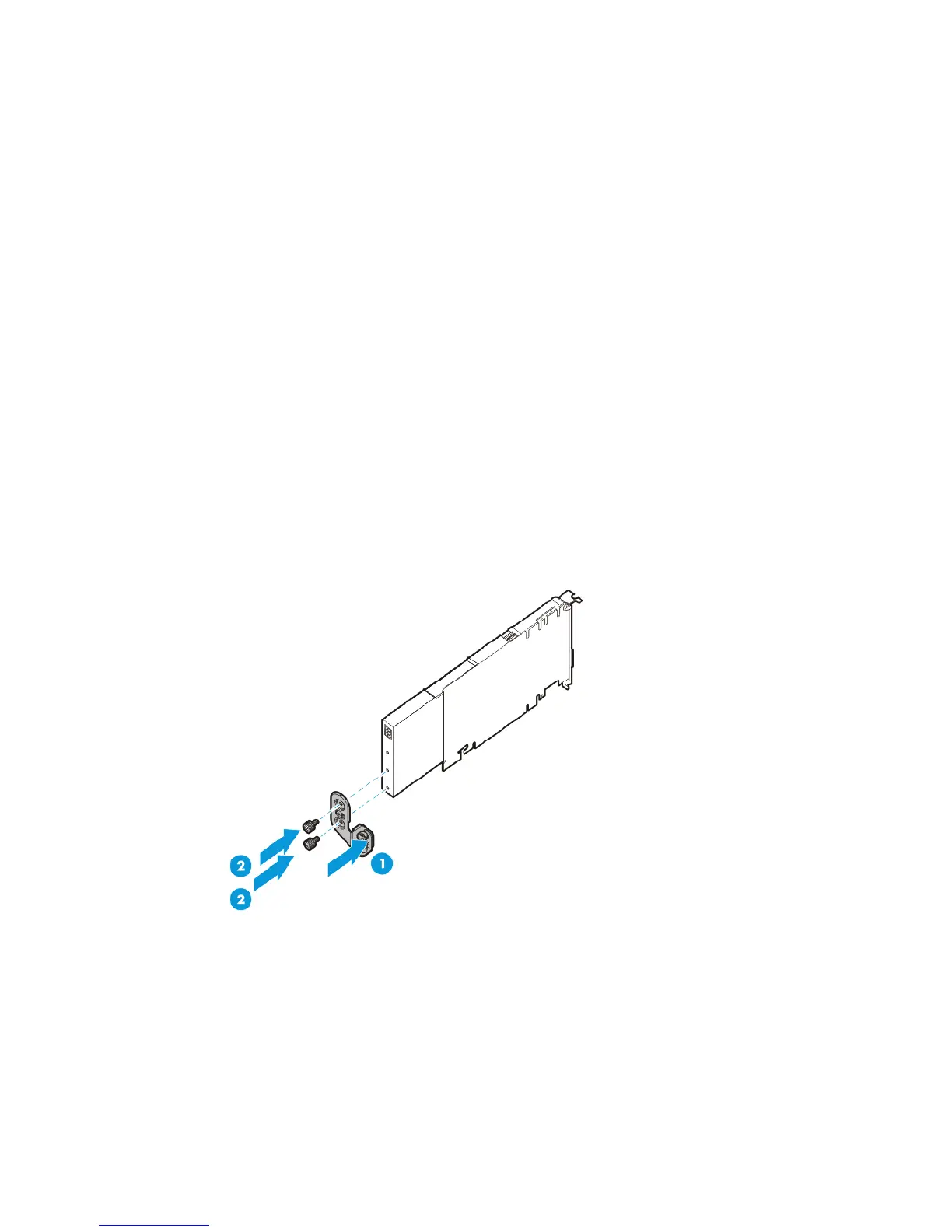

8. Install the supporting holder.
