Hardware options installation 39

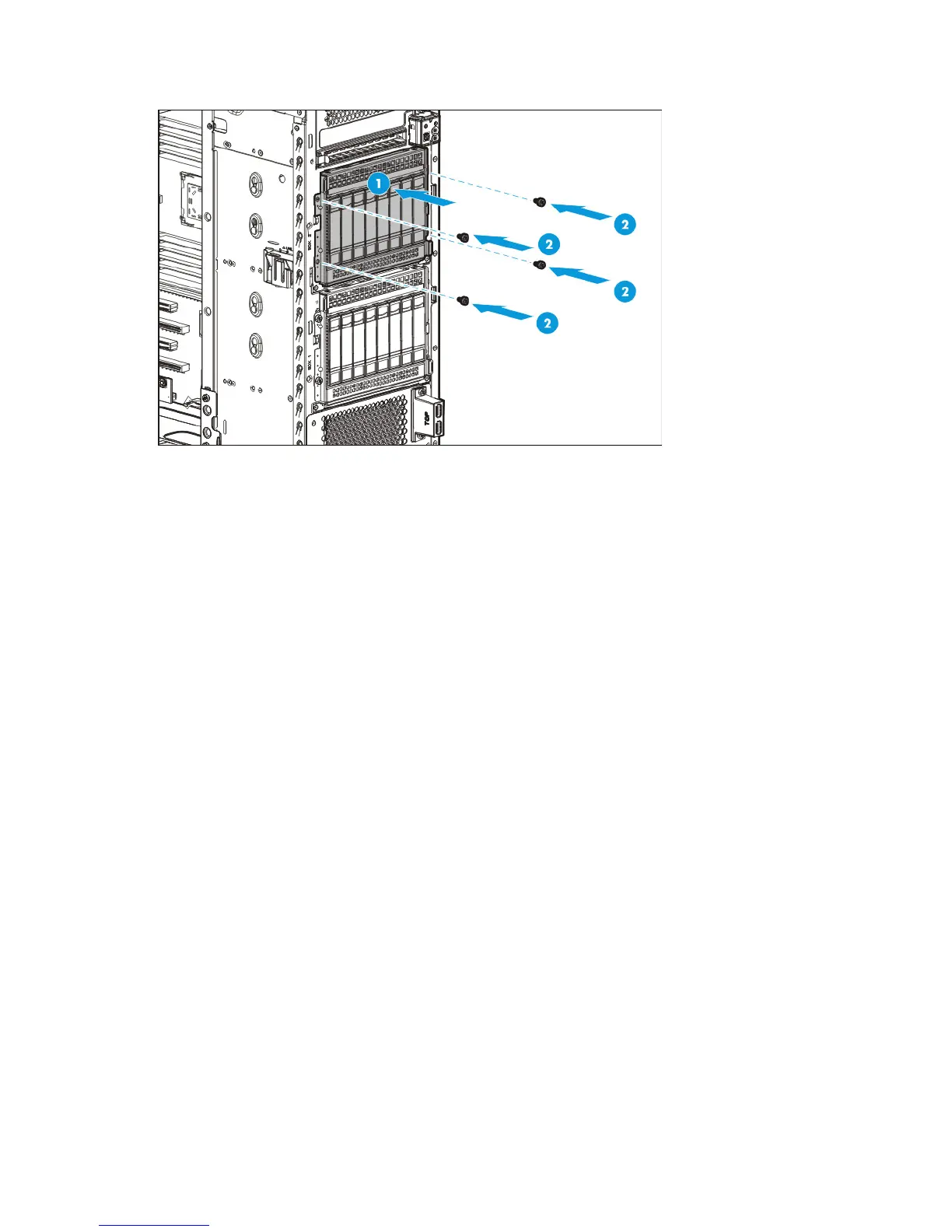

14. Install the 8-bay SFF hot-plug drive cage assembly in box 2.
15. If two 8-bay SFF hot-plug drive cages are installed, install the storage controller ("Installing the storage
controller and FBWC module options" on page 49).
16. Connect the drive cage cables. See 8-bay SFF hot-plug drive cabling (on page 88). Then, install the
drives.
17. Install the system air baffle (on page 24).
18. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 22).
19. Install the front bezel (on page 21).
20. Install the access panel (on page 19).
21. Return the server to an upright position.
22. Connect each power cord to the server.
23. Connect each power cord to the power source.
24. Power up the server (on page 18).
Drive options
For a list of drive configurations supported in this server, see "Drive numbering (on page 14)."
The embedded storage controller supports SATA drive installation. For SAS drive installation, install an HP
Host Bus Adapter or an HP Smart Array Controller board option.
For more information about product features, specifications, options, configurations, and compatibility, see
the product QuickSpecs on the HP website (http://www.hp.com/go/qs).
Drive installation guidelines
When adding drives to the server, observe the following general guidelines:
• The system automatically sets all device numbers.
• Populate drive bays, based on the drive numbering sequence. Start from the drive bay with the lowest
device number ("Drive numbering" on page 14).
