Hardware options installation 58
Optical drive option
To install the component:
1. Power down the server (on page 18).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 18).
5. Remove the front bezel (on page 20).
6. If installed, remove the PCI air baffle (on page 22).
7. Remove the system air baffle (on page 23).

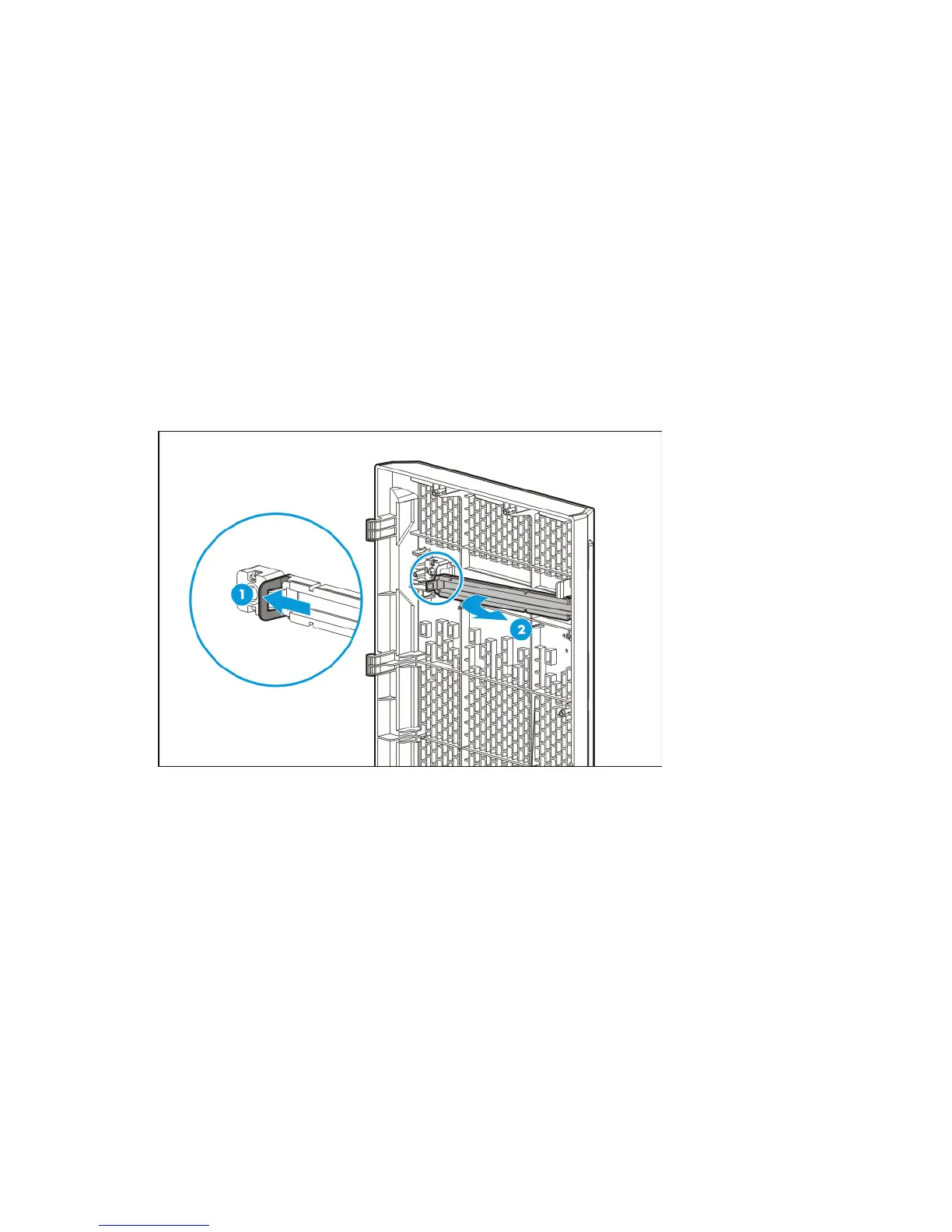

8. Remove the optical drive cover.
