Hardware options installation 53
Installing an HP Smart Storage Battery
To install the component:
1. Power down the server (on page 18).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 18).
5. If installed, remove the PCI air baffle (on page 22).
6. Remove the system air baffle (on page 23).
7. Install HP Smart Storage Battery holder if not installed ("HP Smart Storage Battery holder option" on
page 53).

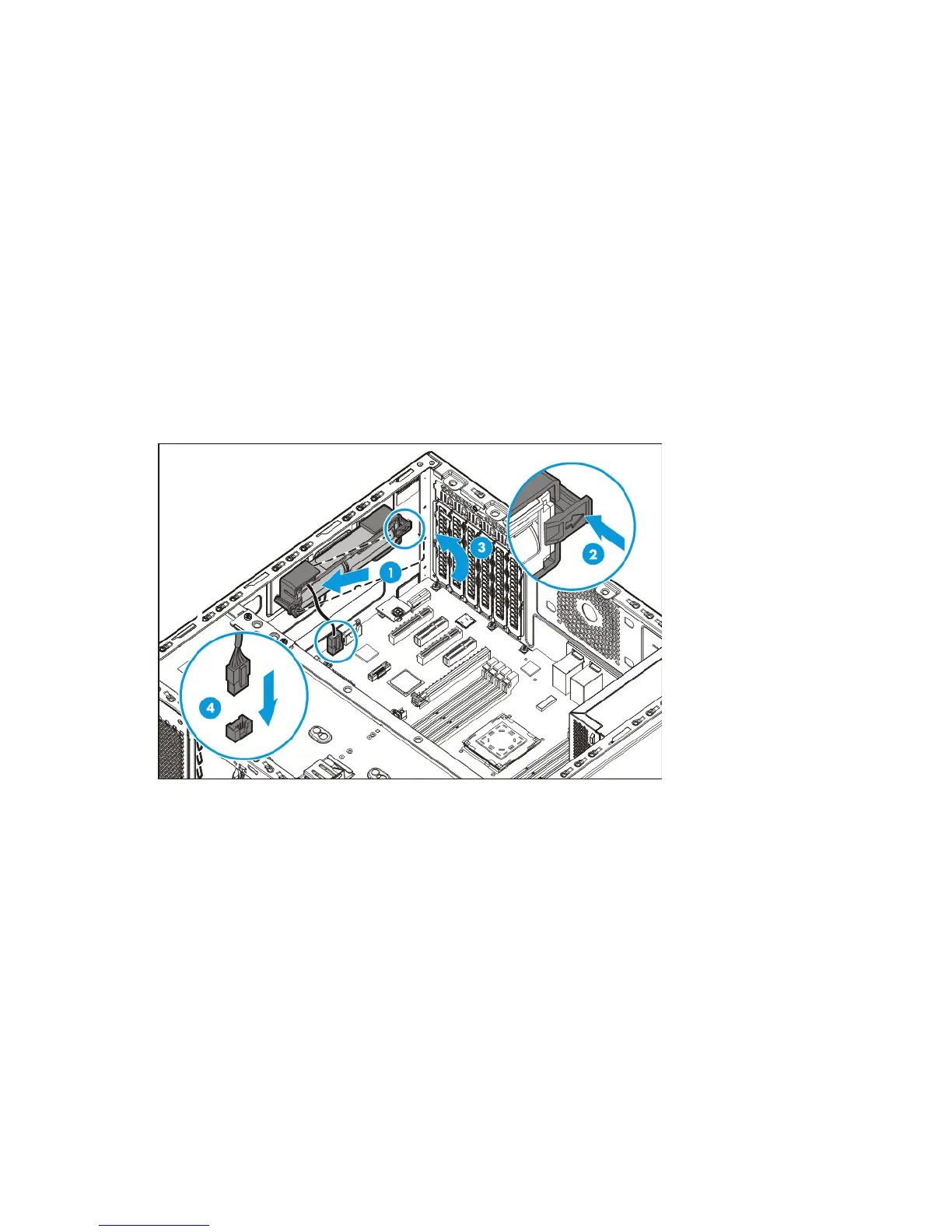

8. Install the HP Smart Storage Battery, and then connect the battery cable to the system board connector.
9. Install the system air baffle (on page 24).
10. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 22).
11. Install the access panel (on page 19).
12. Return the server to an upright position.
13. Connect each power cord to the server.
14. Connect each power cord to the power source.
15. Power up the server (on page 18).
HP Smart Storage Battery holder option
To install the component:
1. Power down the server (on page 18).
2. Remove all power:
