Hardware options installation 36

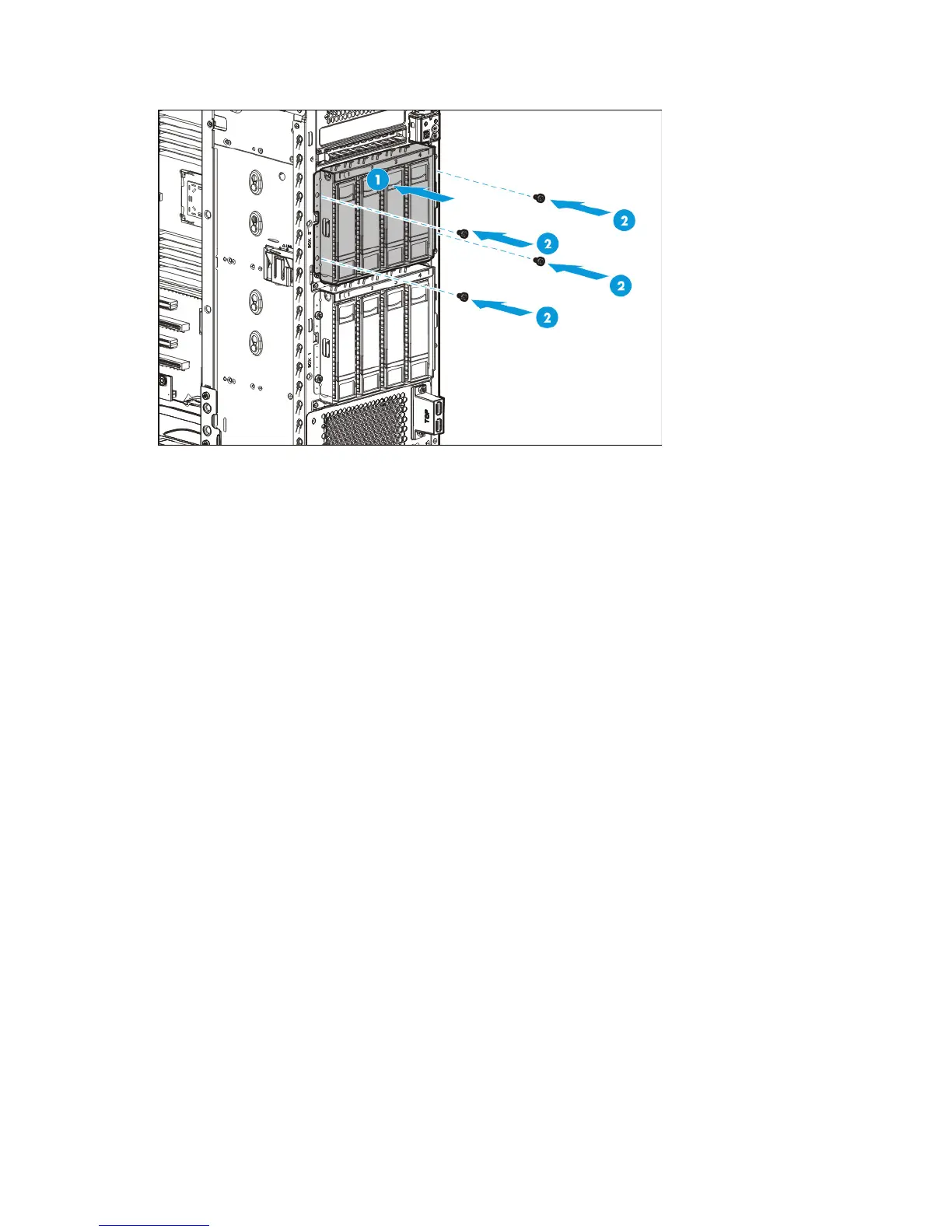

14. Install the 4-bay LFF hot-plug drive cage assembly in box 2.
15. Connect the drive cage cables. See 4-bay LFF hot-plug drive cabling (on page 85). Then, install the
drives.
16. Install the system air baffle (on page 24).
17. If removed, install the PCI air baffle ("Install the PCI air baffle" on page 22).
18. Install the front bezel (on page 21).
19. Install the access panel (on page 19).
20. Return the server to an upright position.
21. Connect each power cord to the server.
22. Connect each power cord to the power source.
23. Power up the server (on page 18).
8-bay SFF hot-plug drive cage option
To install the component:
1. Power down the server (on page 18).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 18).
5. Remove the front bezel (on page 20).
6. If installed, remove the PCI air baffle (on page 22).
7. Remove the system air baffle (on page 23).
8. Disconnect all existing drive cage cables.
