Removal and replacement procedures 43

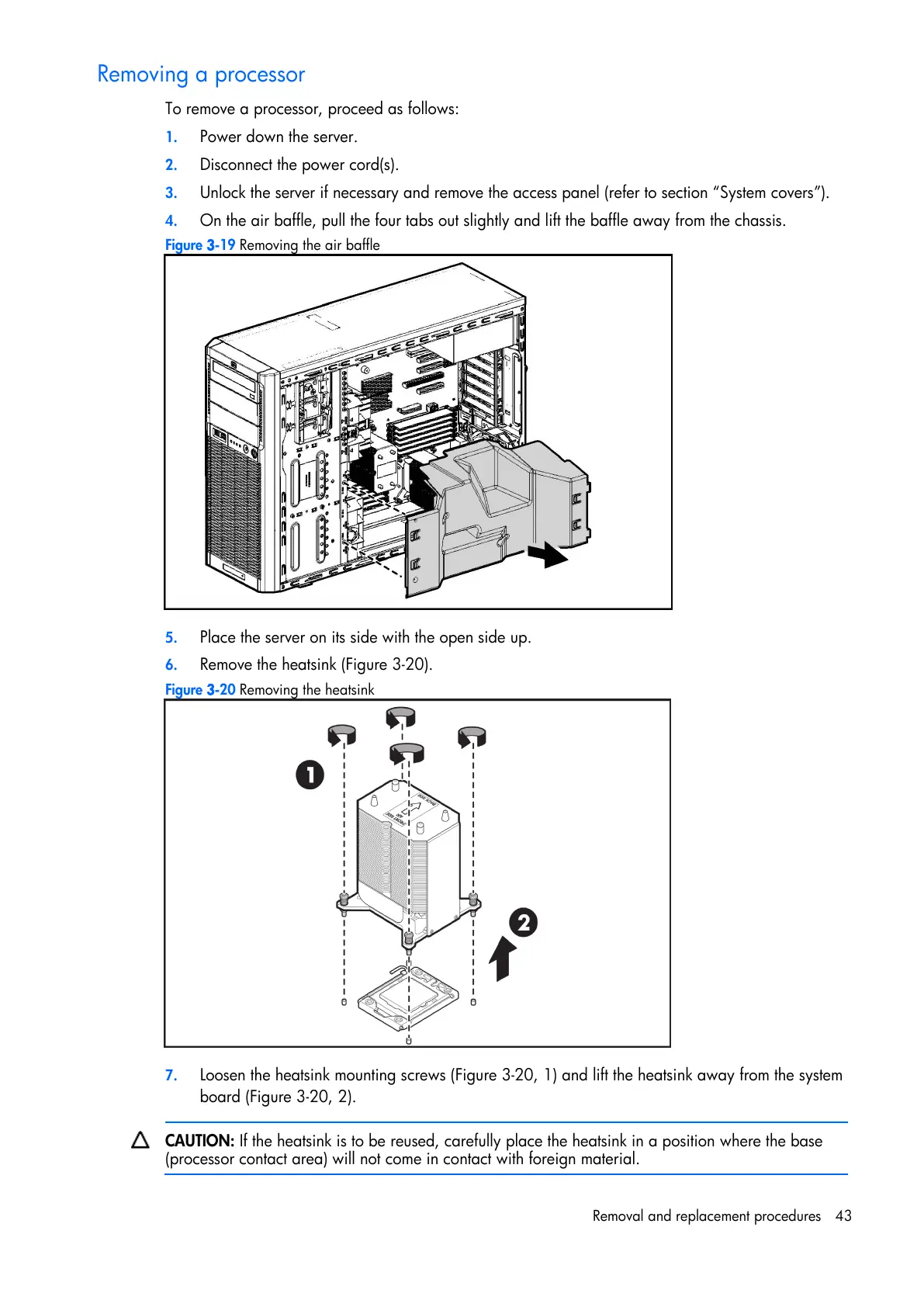

Removing a processor
To remove a proces sor, proceed as follows:
1. Power down the server.
2. Disconnect th e p ower cord(s).
3. Unlock the server if necessary and remove t h e access panel (refer to section “System covers”).
4. On the air baffle, pull the four tabs out slightly and lift the baffle away from the chassis.
Figure 3-19 Removing the air baffle
5. Place the server on its side w ith the open side up.
6. Remove the heatsink (Figure 3-20).
Figure 3-20 Removing the heatsink
7. Loosen the heatsink mounting screws (Figure 3-20, 1) and lift the heatsink away from the system
board (Figure 3-20, 2).
CAUTION: If the heatsink is to be reused, carefully place the heatsink in a position where the base
(processor contact area) will not come in contact with foreign material.
