Diagnostic Tools and Setup Utilities 77

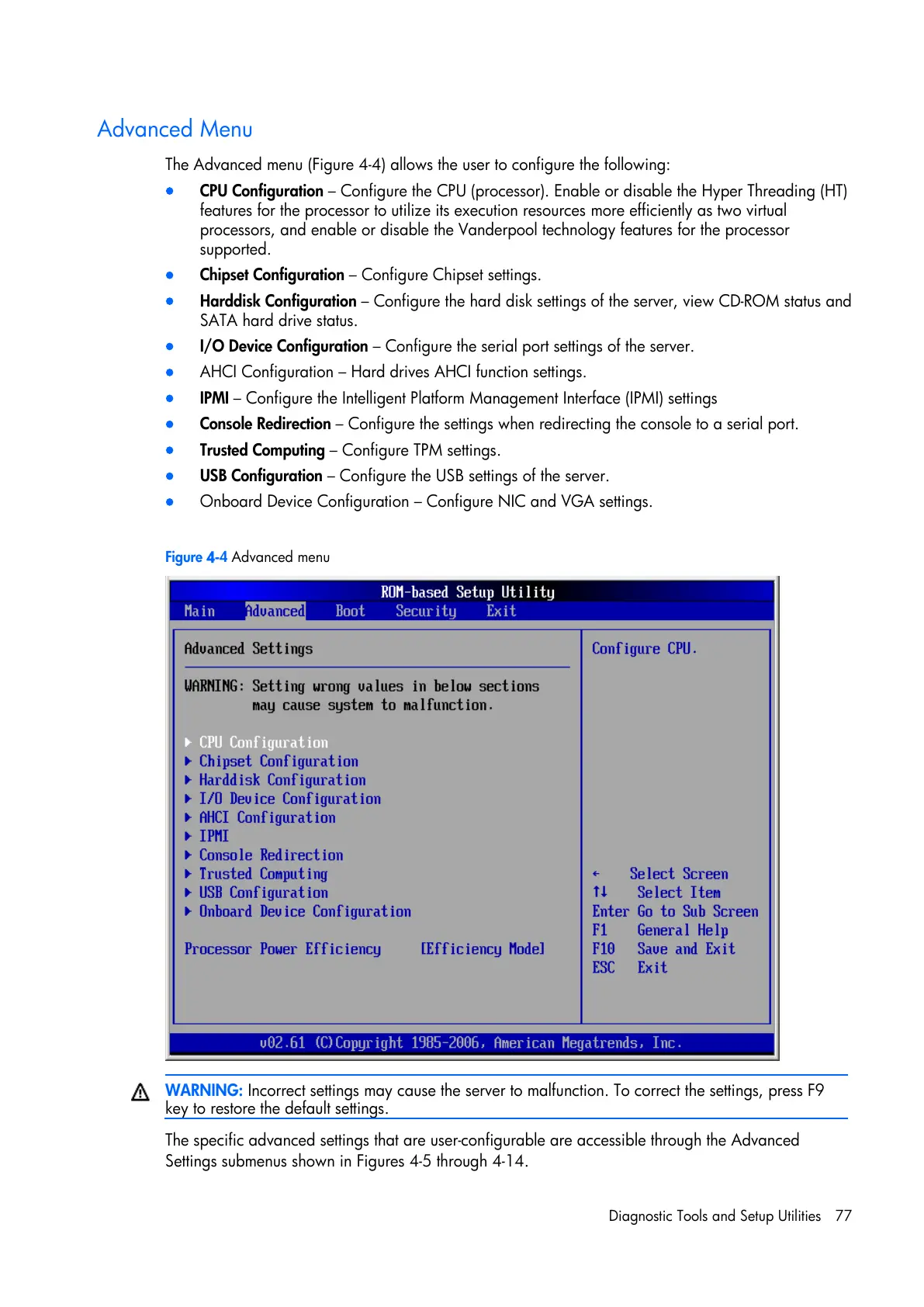

Advanced Menu
The Advanced menu (Figure 4-4) allows the user to con figure the following:
• CPU Configuration – Configure the CPU (processor). Enable or disable the Hyper Threading (HT)
features for the processor to utilize its exe cution resources more efficiently as two virtual
process ors, and enable or disable th e Vanderpool technology features for the processor
supported.
• Chipset Configuration – Configure Chipset settin gs.
• Harddisk Configuration – Configure the hard disk settings of the server, view CD-ROM status and
SATA hard drive status.
• I/O Device Configuration – Configure the serial port settin gs o f the server.
• AHCI Configurat ion – Hard drives AHCI function settings.
• IPMI – Configure the Intelligent Platform Management Interface (IPMI) settings
• Console Redirection – Configure th e set tings when redirecting the console to a serial port.
• Trusted Computing – Config ure TPM settings.
• USB Configuration – Configure the USB sett i ngs of the server.
• Onboard Device Configura tion – Configure NIC and VGA set tings.
Figure 4-4 Advanced menu
WARNING: Incorrect settings may cause the server to malfunction. To correct the settings, press F9
The specific advanced setti n g s t hat are user-configurable are accessible through the Advanced
Settings submenus shown in Figures 4-5 through 4-14.
