Removal and replacement procedures 31
9.

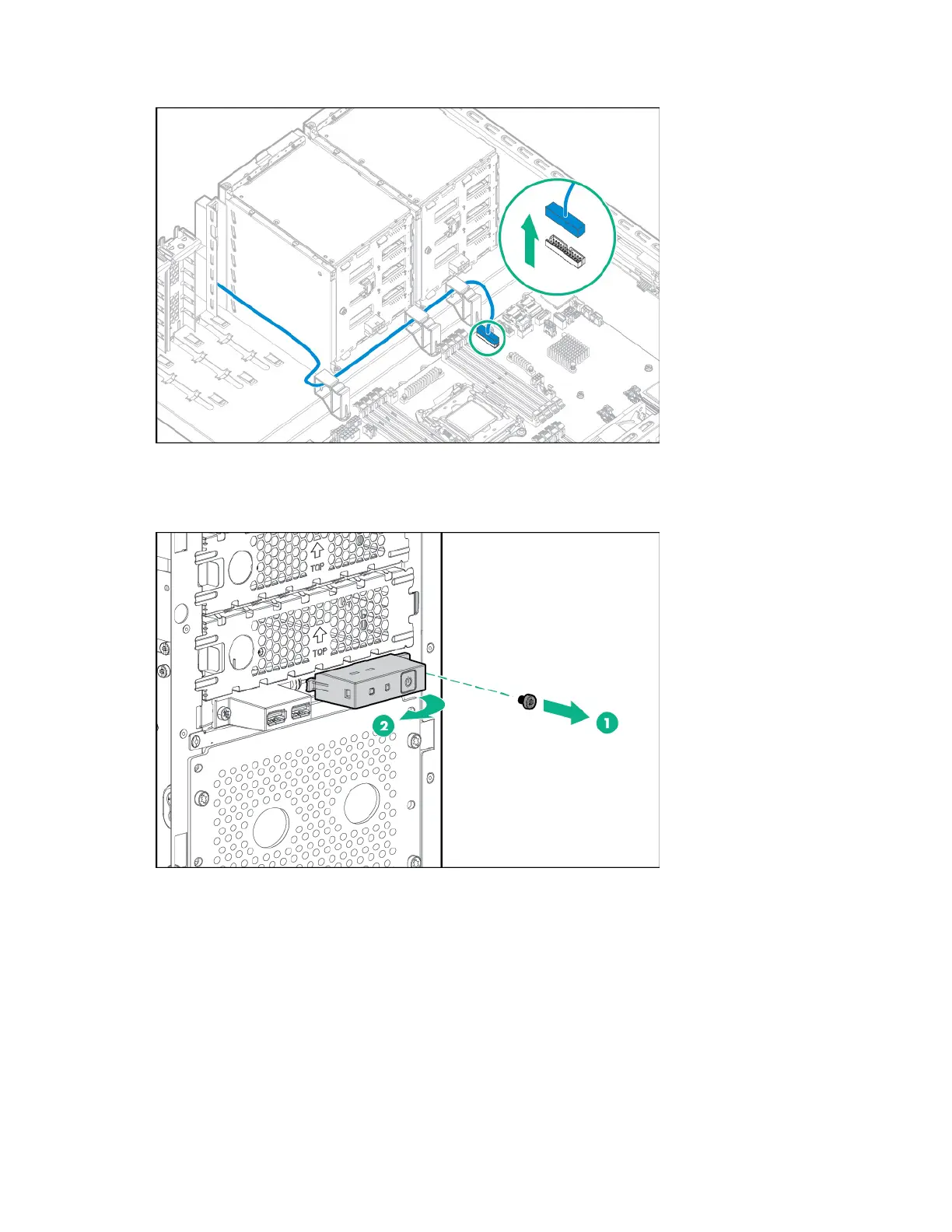

Disconnect the front LED cable from the system board.
10. Remove the front panel LED module:
a. Remove the front panel LED module screw.
b. Pull the LED module out of the server.
To replace the component, reverse the removal procedure.
Front panel USB
To remove the component:
1. Unlock and remove the tower bezel ("Remove the tower bezel" on page 23).
2. Power down the server (on page 23).
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
