Removal and Replacement Procedures
HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-9
HP CONFIDENTIAL Codename: Stone Soup 2 Part Number: 368148-003 Last Saved On: 6/10/05 4:28 PM
Cable Routing Diagrams
Figure 2-4 through Figure 2-8 show the cable routing for the server.
CAUTION: When routing cables, be sure that the cables are not in a position where they can
be pinched or crimped.
IDE CD-ROM Drive Signal Cable

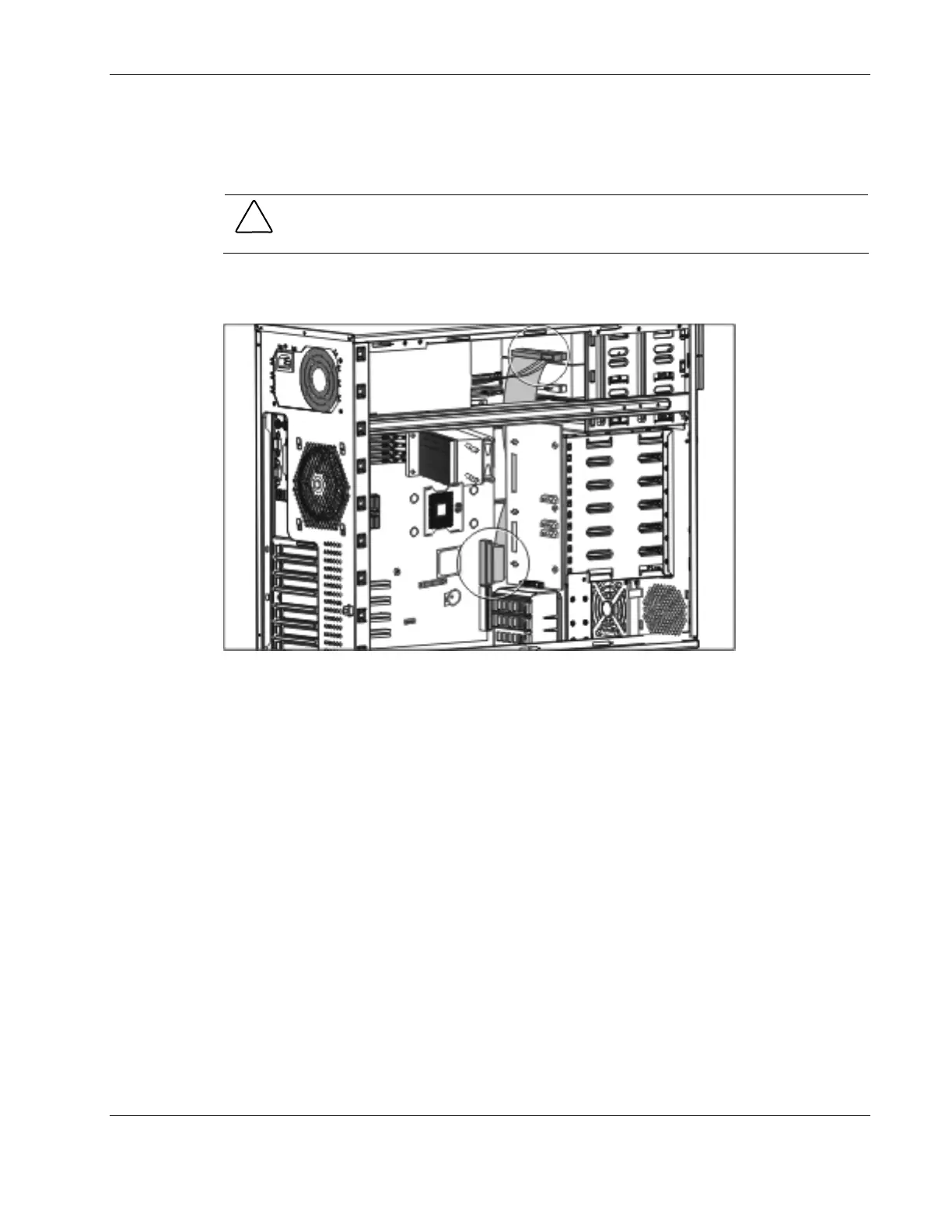

Figure 2-4: IDE CD-ROM drive signal cable routing
