HP ProLiant ML150 Generation 2 - Expansion Slots and Boards

Removal and Replacement Procedures
HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 2-35
HP CONFIDENTIAL Codename: Stone Soup 2 Part Number: 368148-003 Last Saved On: 6/10/05 4:28 PM
Expansion Slots

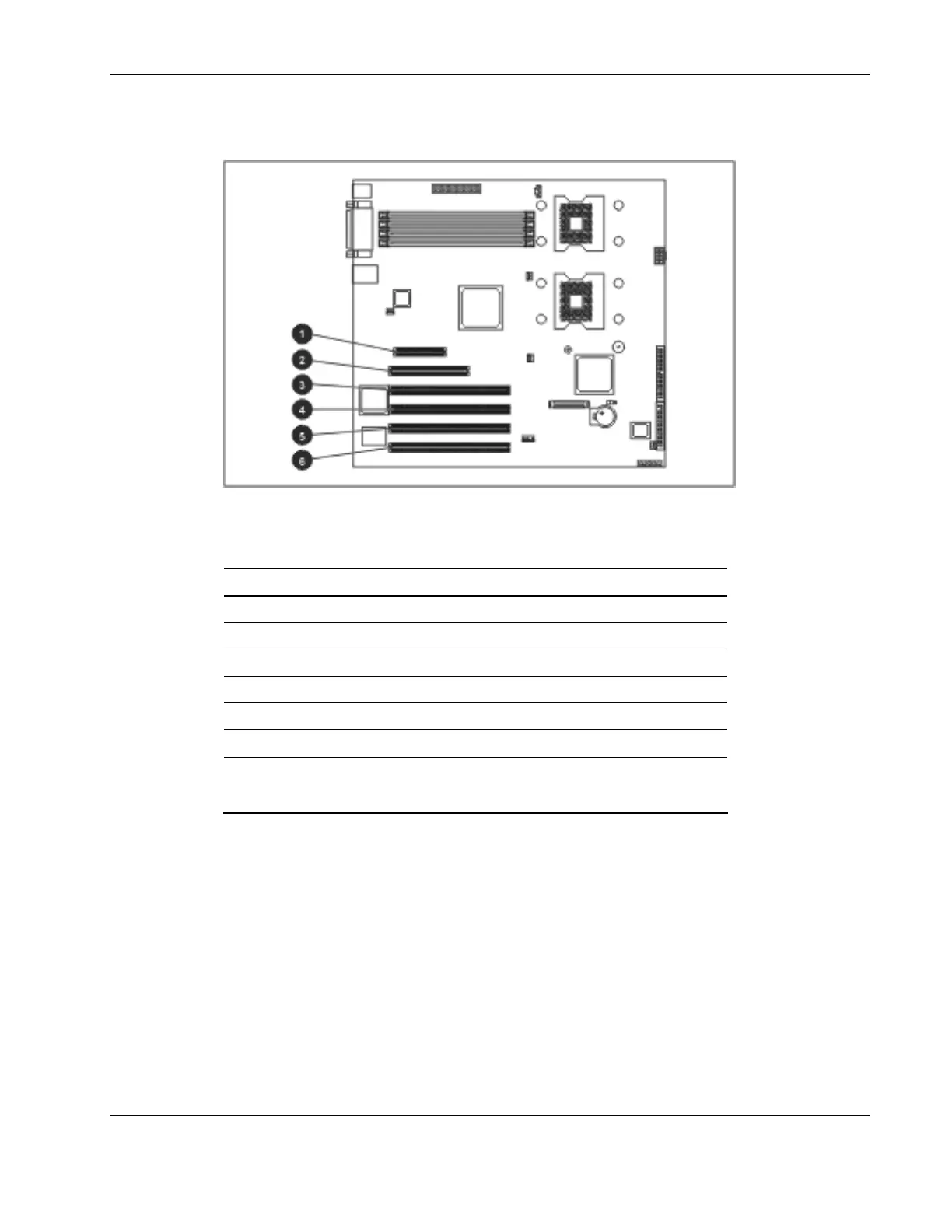

Figure 2-35: Expansion slot locations
Table 2-2: Expansion Slots
Item Slot Slot Number
1 PCI-Express x4 6
2 32-bit 33-MHz PCI, 5-V 5
3
64-bit 66-MHz PCI-X, 3.3-V

4
4 64-bit 66-MHz PCI-X, 3.3-V 3
5 64-bit 66-MHz PCI-X, 3.3-V 2
6
64-bit 66-MHz PCI-X, 3.3-V

1

Pre-installed with a SCSI or SATA card

Do not insert an add-on card with an RJ-45 connector into PCI-X slot 1.
