Connectors, Jumpers, and LEDs
HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 4-5
HP CONFIDENTIAL Codename: Stone Soup 2 Part Number: 368148-003 Last Saved On: 4/19/05 5:18 PM
Jumpers
System Configuration Jumper Settings
The server system board has a 3-position configuration jumper (J29). Figure 4-3 and
Table 4-3 show the use of the jumper.

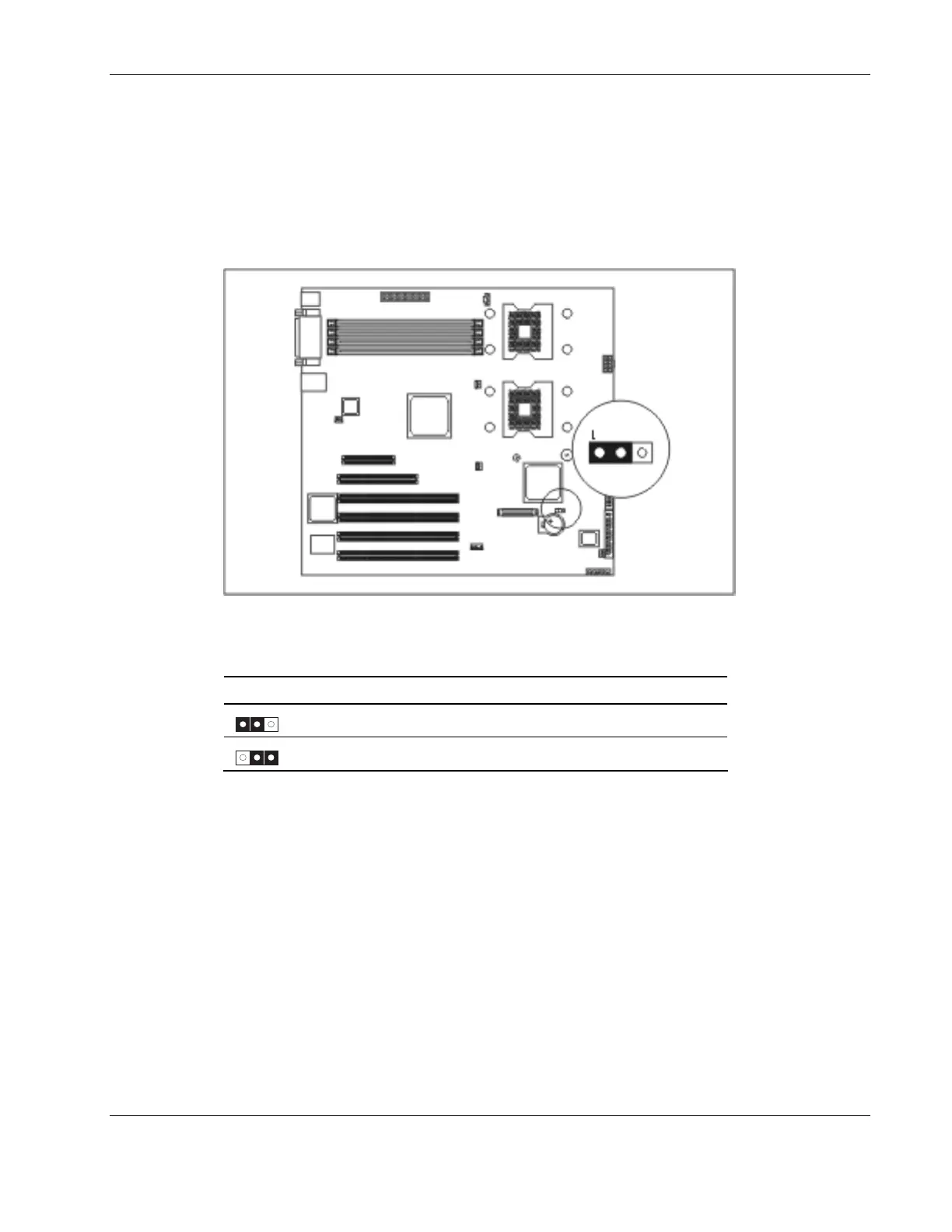

Figure 4-3: System configuration jumper settings
Table 4-3: System Configuration Jumper Settings
Jumper Position Description
1
Normal
1
Clear CMOS
