System Board Components
Figure 4-2 and Table 4-2 show and describe the locations of the components on the server
system board.

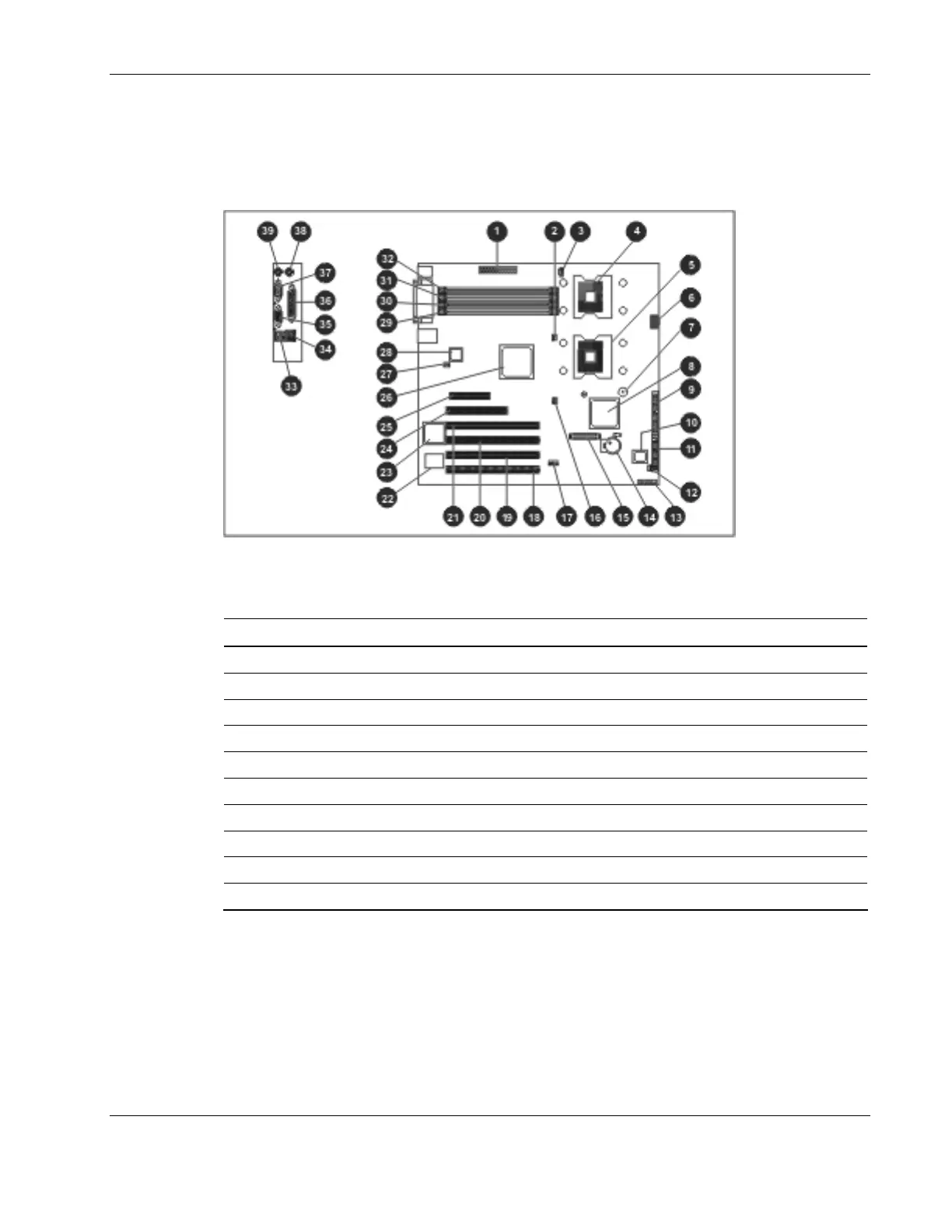

Figure 4-2: System board components
Table 4-2: System Board Components
Item Description Item Description
1 24-pin power connector 11 34-pin FDD connector
2 3-pin CPU fan connector 12 3-pin front system fan connector
3 5-pin power connector 13 20-pin front panel I/O connector
4 Processor 1 socket 14 Battery
5 Processor 2 socket 15 ML150 G2 Lights-Out 100c connector
6 8-pin power connector 16 3-pin CPU fan connector
7 Internal buzzer 17 5-pin internal USB 2.0 connector
8 Intel south bridge chipset 18 PCI slot 1 (64-bit PCI-X)
9 IDE channel UDMA-33 19 PCI slot 2 (64-bit PCI-X)
10 BIOS flash ROM 20 PCI slot 3 (64-bit PCI-X)
continued
