Removal and Replacement Procedures
2-38 HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide
HP CONFIDENTIAL Codename: Stone Soup 2 Part Number: 368148-003 Last Saved On: 6/10/05 4:28 PM
Expansion Board Holder
You may need to remove the expansion board holder when removing other components, such
as the system board.
To remove the expansion board holder:
1. Remove the expansion board(s) on the expansion board holder. Refer to “Expansion
Board” earlier in this chapter.
2. Carefully place the server upside down.
3. Remove the two screws securing the expansion board holder to the chassis (1).
4. Remove the expansion board holder from the chassis (2).

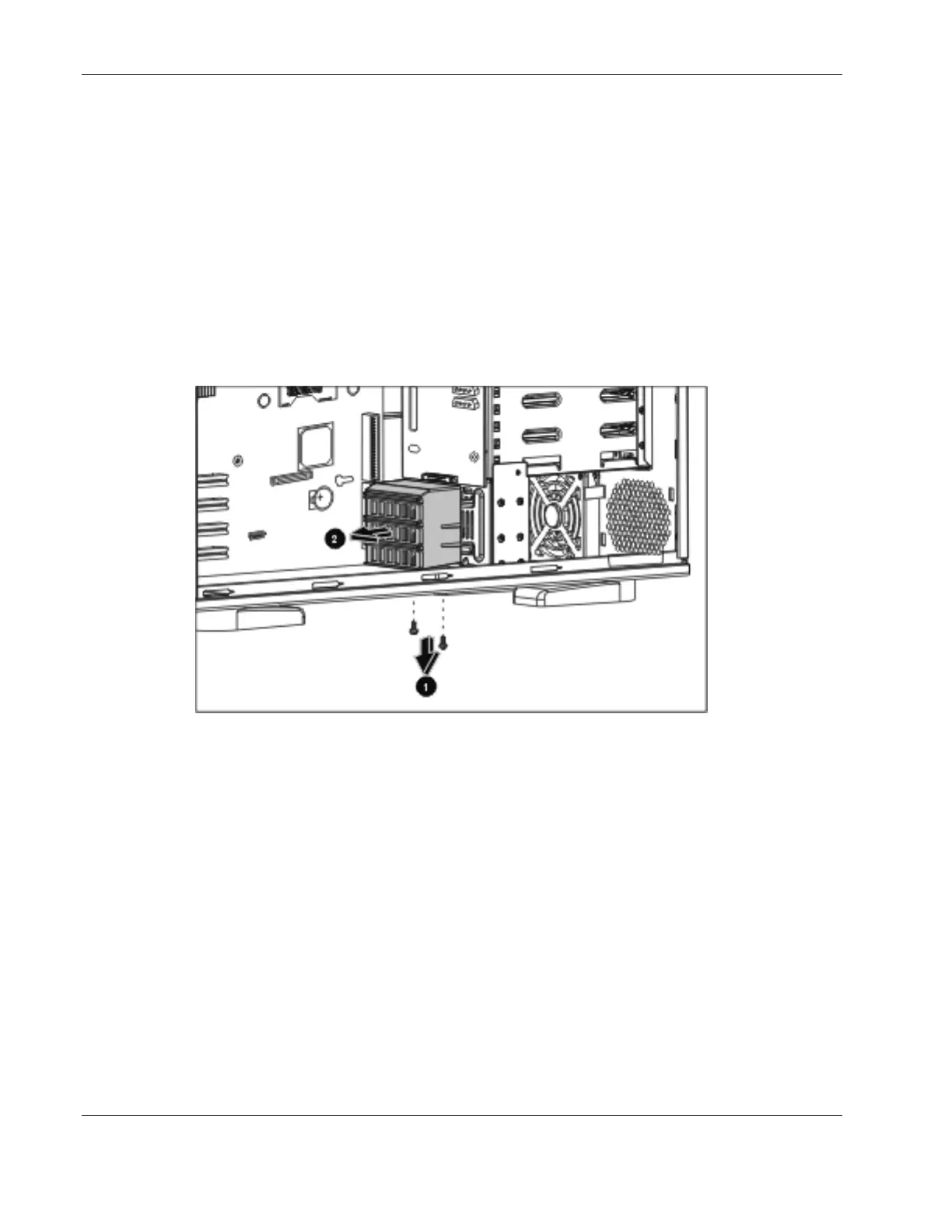

Figure 2-38: Removing the expansion board holder
To replace the expansion board, reverse steps 1 through 4.

HP ProLiant ML150 Generation 2 Specifications

General

Processor Sockets	2
Form Factor	Tower
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
CPU	Intel Xeon processor
Memory Slots	6
Storage	Serial ATA (SATA) or Serial Attached SCSI (SAS) depending on configuration
Expansion Slots	6
