5. Separate the hard drive and the carrier.
a. Remove the two screws on each side of the carrier.
b. Lift the hard drive out of the carrier.

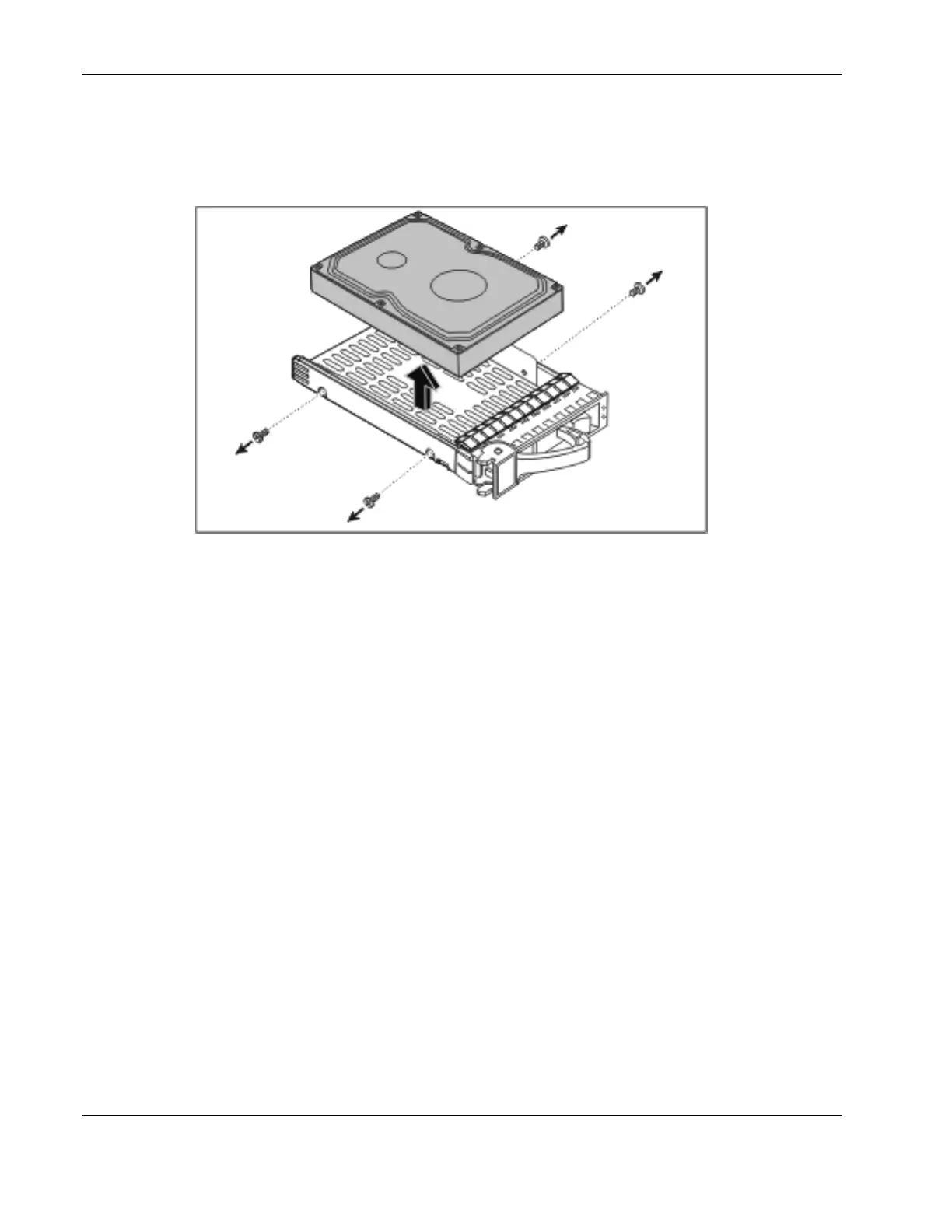

Figure 2-32: Separating the hard drive and carrier
6. Place the hard drive in an electrostatic protected container.
Do not stack drives.
To replace a SATA hot-plug hard drive:
1. Assemble the hard drive and the carrier.
a. Place the hard drive inside the carrier.
b. Replace the two screws to each side of the carrier.
2. Slide the hard drive into the drive bay until you feel resistance, and then press firmly until
the hard drive is fully seated into the connector on the back plane.
3. Verify the hooks behind the pivot end of the handle engage the hole in the edge of the
hard drive cage.
4. Press the ejector handle in until you feel the latch click into place.
Closing the ejector handle engages the hard drive with the electrical connector in the hot-
plug hard drive cage and seats the hard drive.
