Connectors, Jumpers, and LEDs
HP ProLiant ML150 Generation 2 Server Maintenance and Service Guide 4-11
HP CONFIDENTIAL Codename: Stone Soup 2 Part Number: 368148-003 Last Saved On: 4/19/05 5:18 PM

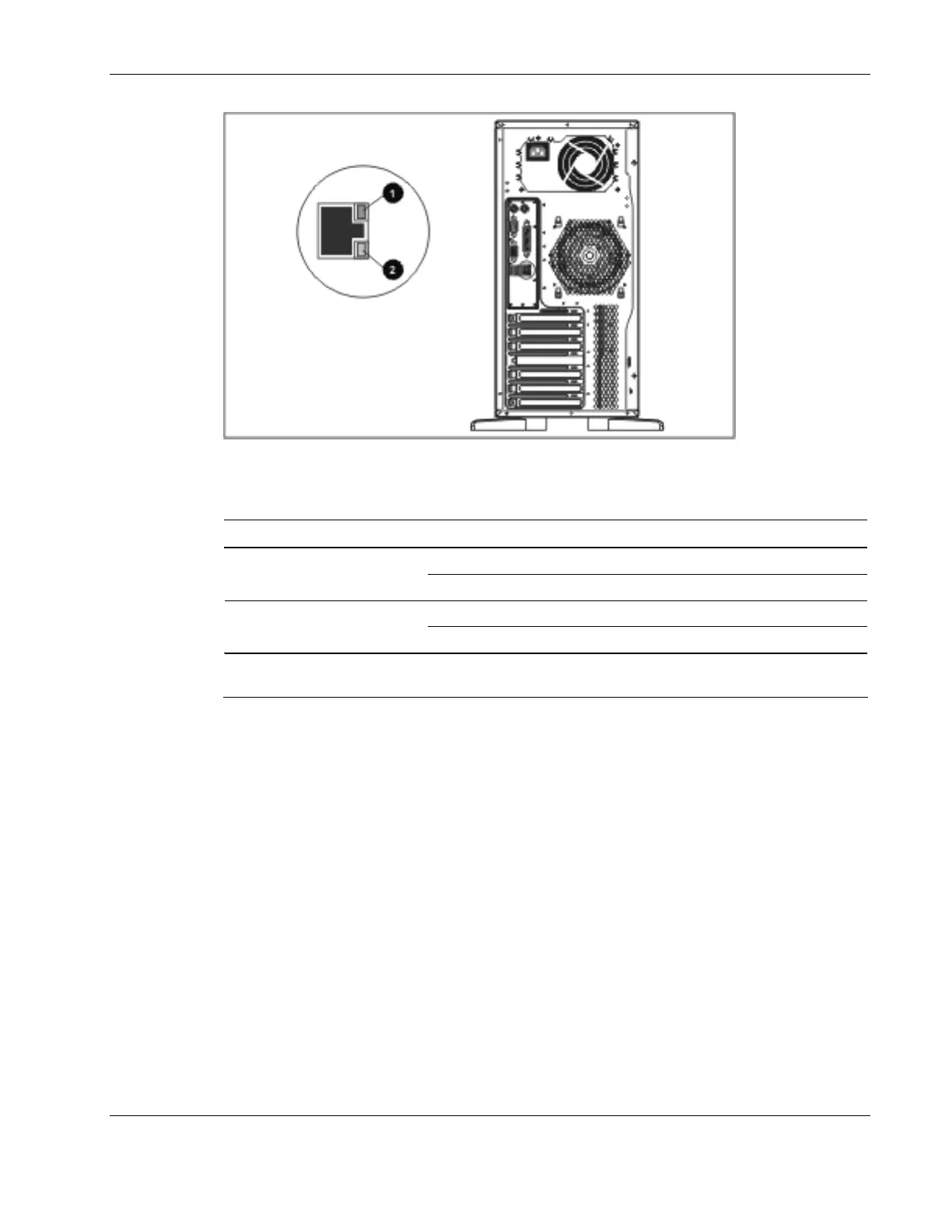

Figure 4-5: Network Interface Controller (NIC) LEDs
Table 4-8: Network Interface Controller (NIC) LEDs
Item Description Status Condition
On Valid 100/1000 Mbps LAN link 1 Green
Flashing 100/1000 Mbps LAN activity
On Valid 10/1000 Mbps LAN link 2 Amber
Flashing 10/1000 Mbps LAN activity
Note: The 1000 Mbps LAN link or activity is shown when both the green and amber LEDs are on or
flashing.
