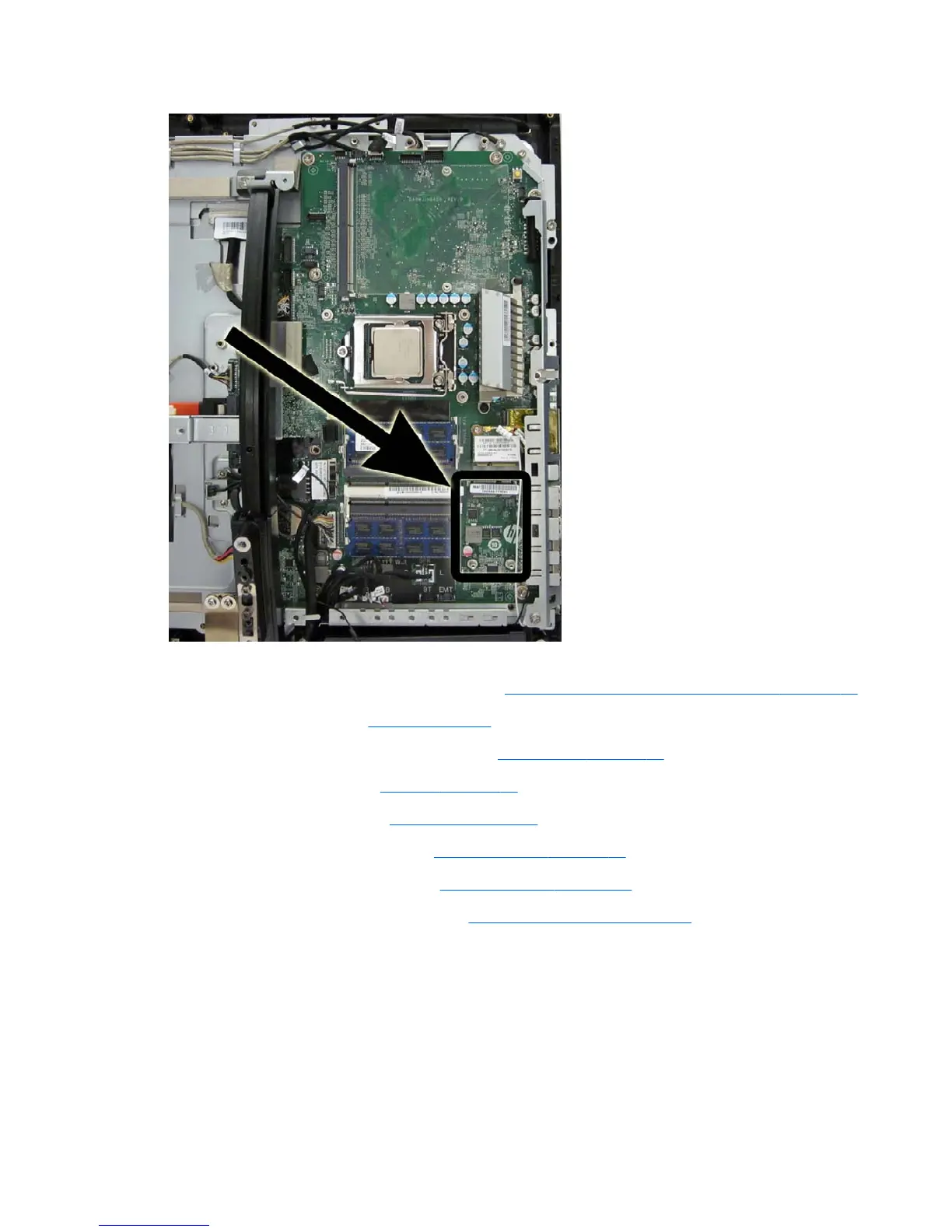

Figure 7-69 TV tuner location
To remove the WLAN module:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the stand (see
Stand on page 34).
3. Remove the right and left rear panels (see
Rear panels on page 46).
4. Remove the left cap (see
Left cap on page 60).
5. Remove the right cap (see
Right cap on page 66).
6. Remove the rear logo cover (see
Rear logo cover on page 71).
7. Remove the rear main frame (see
Main rear frame on page 74).
8. Remove the system board shield (see
System board shield on page 76).
9. Disconnect the antenna cables from the module (1). The number of antenna cables may vary.
10. Remove the screw (2) that secures the module to the computer.
WLAN module and TV tuner module 93
