11. Lift the module to a 45-degree angle, and then remove it from the system board (3).

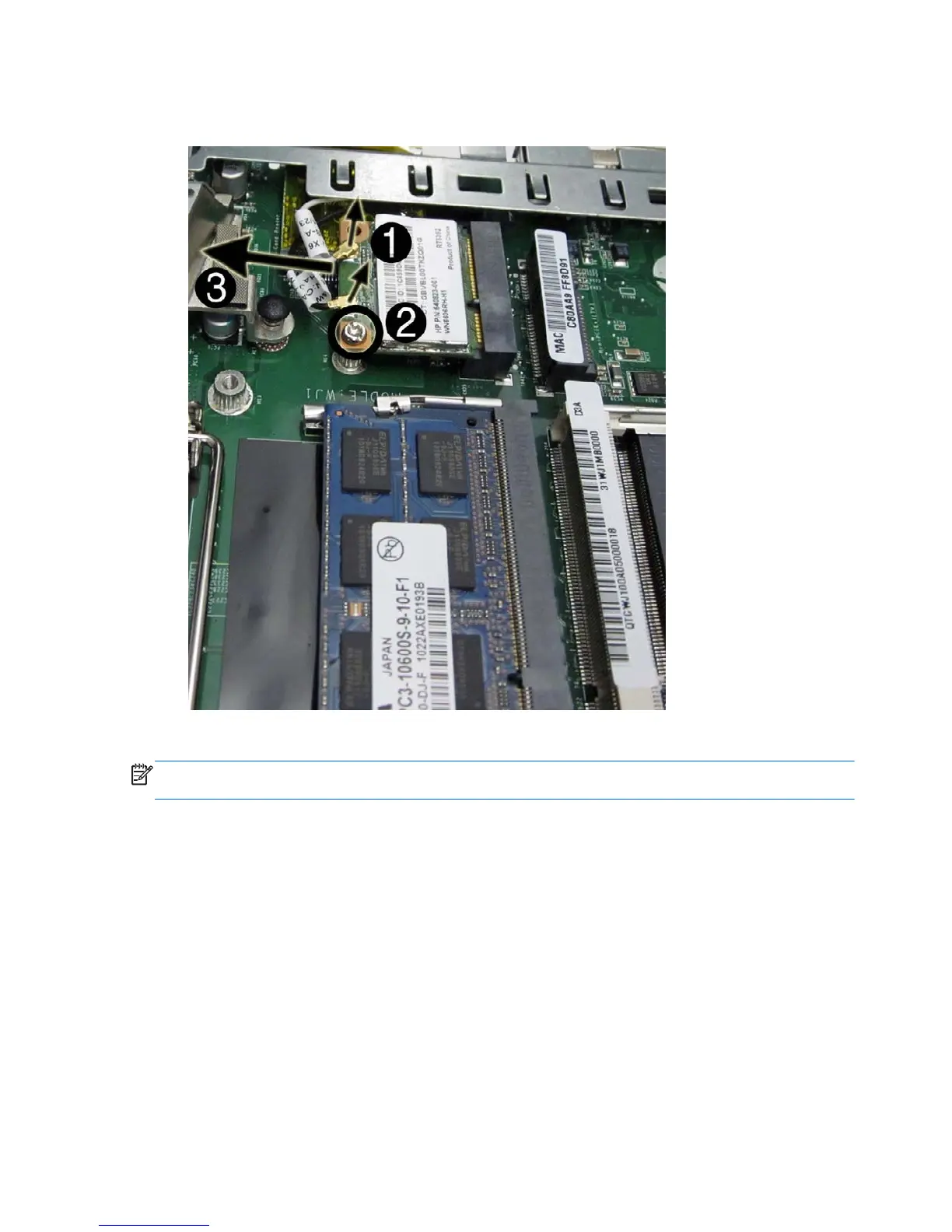

Figure 7-70 Removing the WLAN module
To install the WLAN module or TV tuner module, reverse the removal procedures.
NOTE: WLAN modules and TV tuner modules are designed with a notch to prevent incorrect
insertion.
