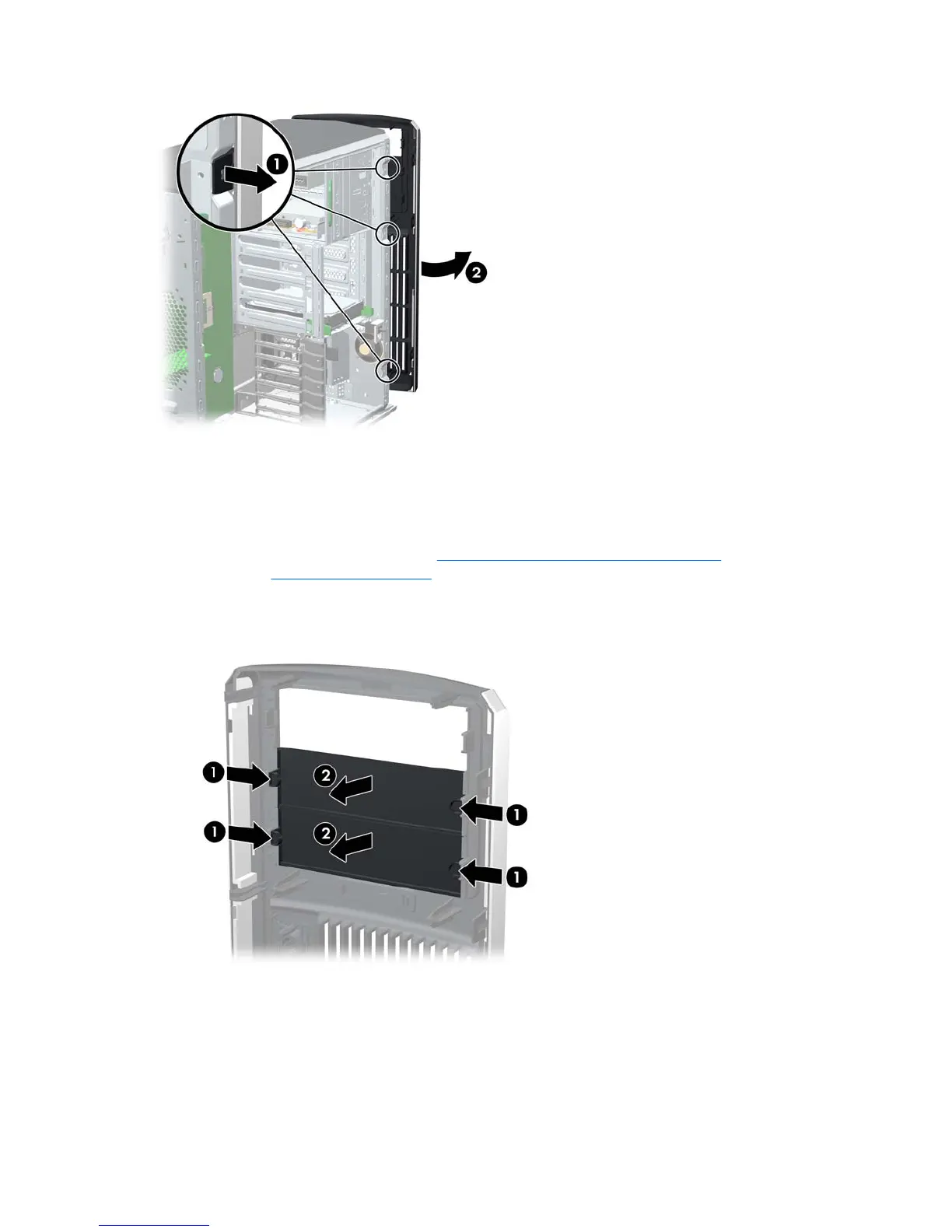

Figure 4-6 Opening the front bezel
Bezel blanks
To remove the bezel blanks:
1. Disconnect power from the system (
Pre-disassembly procedures on page 53) and remove the
front bezel (
Front bezel on page 59)
2. Remove the bezel blanks by squeezing in on the tabs (1) and pushing the bezel blanks out (2).
Figure 4-7 Removing the bezel blanks
60 Chapter 4 Removal and replacement procedures ENWW
