HP XW8400

Removing the PCI retainer
1. Disconnect power from the system (
Pre-disassembly procedures on page 53), and remove the
access panel (
Access panel on page 58). Place the workstation on its side with the system board
facing up.
2. For short or tall cards, lift the PCI retainer arm (1) with one hand, press in on the sides (2) of the
retainer, and rotate it (3) out of the chassis.

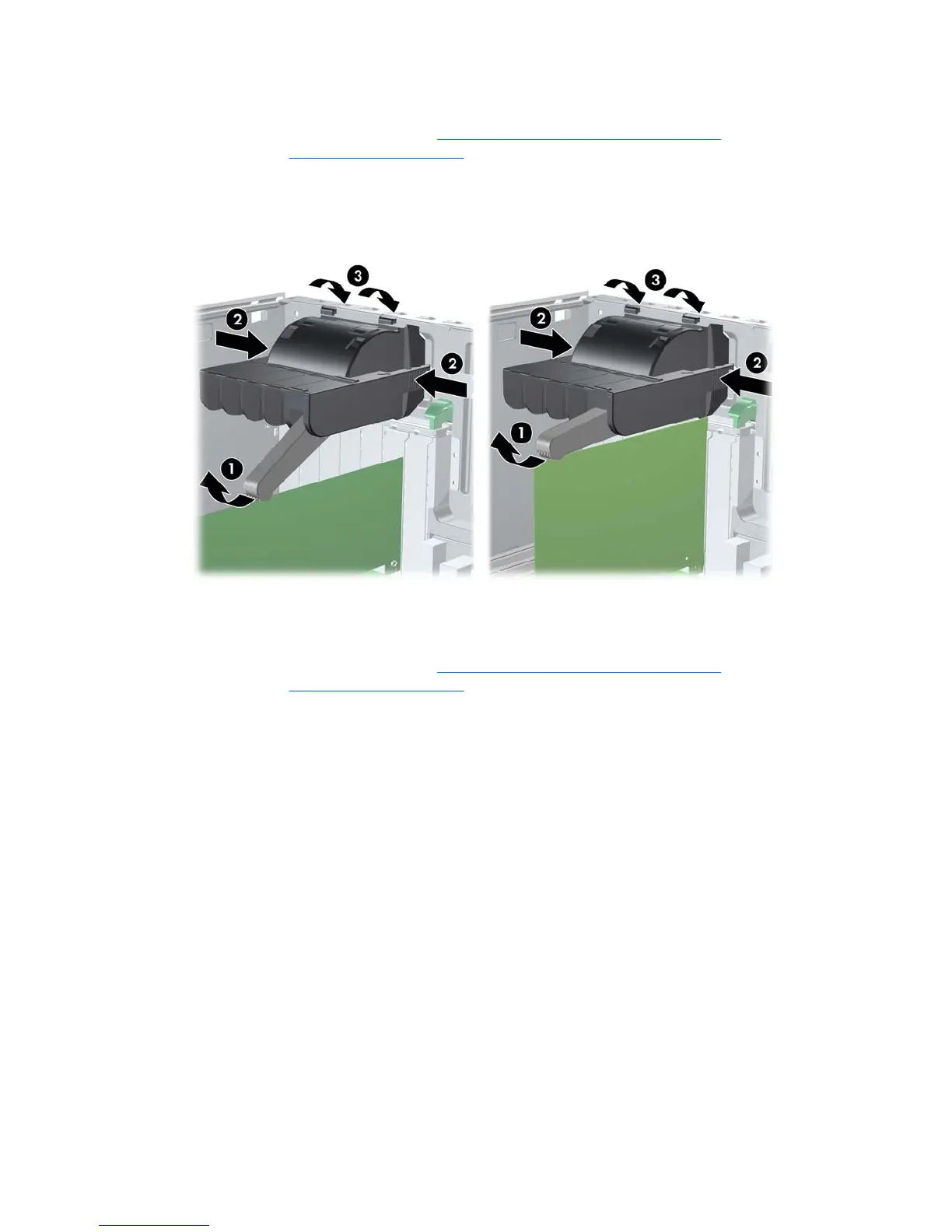

Figure 4-18 Removing the short or tall card PCI retainer
Installing the PCI retainer
1. Disconnect power from the system (
Pre-disassembly procedures on page 53), and remove the
access panel (
Access panel on page 58). Place the workstation on its side with the system board
facing up.
70 Chapter 4 Removal and replacement procedures ENWW
