3. Gently push out on the socket levers.
4. Lower the DIMM straight down, and be sure the socket levers secure the module into place.
5. Lower the memory fan until it snaps into place.
NOTE Ensure that all cables are clear of the fan housing when lowering the memory fan.
PCI slots

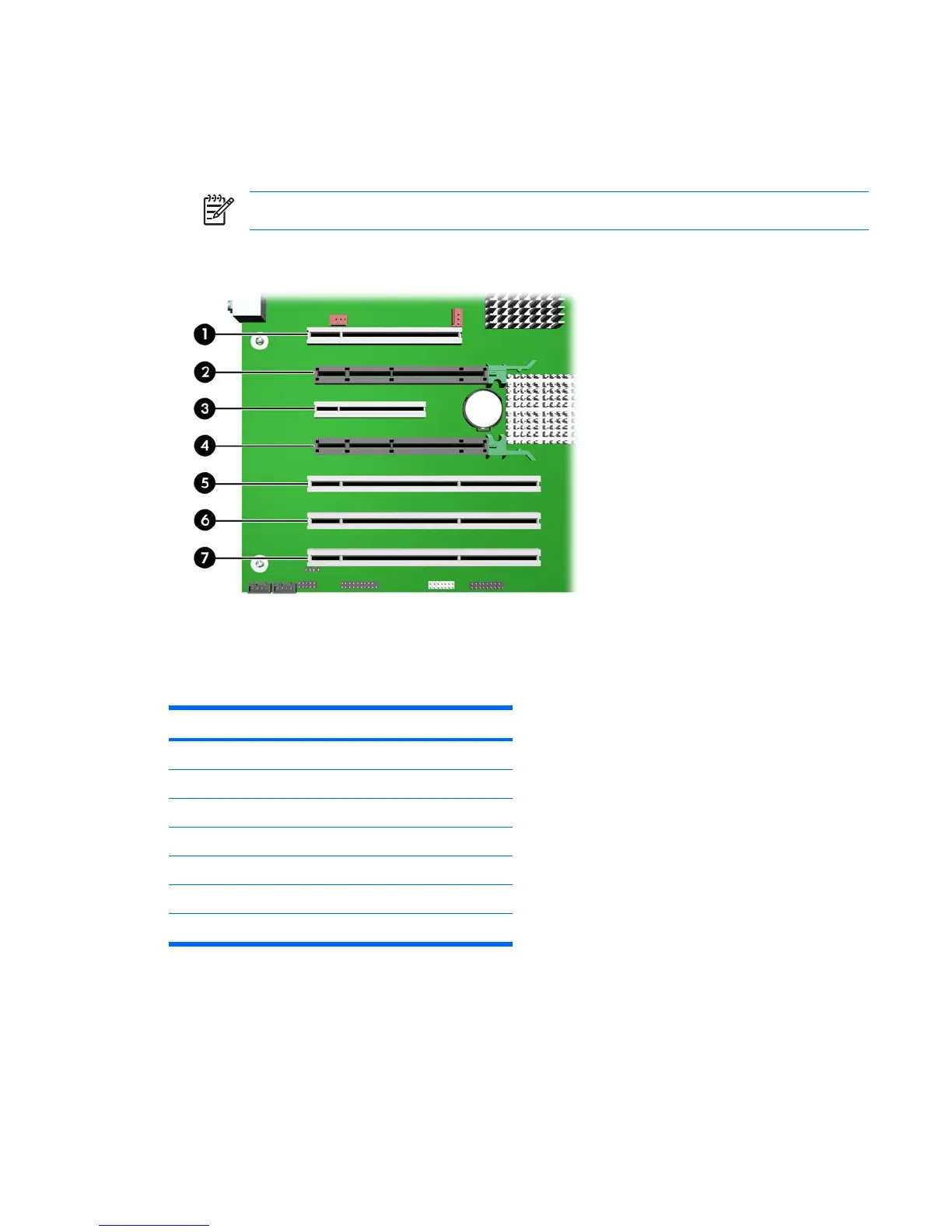

Figure 4-17 Identifying PCI slots
Table 4-5 PCI slots
Slot Type Ref
1 PCI (32-bit, 33 MHz) J21
2 PCI Express x16 graphics J41
3 PCI x8 (x4 performance) J20
4 PCI Express x16 (x4 performance) J31
5 PCI-X 133 J22
6 PCI-X 100 J23
7 PCI-X 100 J23
PCI retainer
For added protection, some cards have PCI retainers installed to prevent movement during shipping.
ENWW Removing and replacing components 69
