3. Route the diskette drive data cable between the system board and the hard drive cage. Your cable
might look different than the one shown.
CAUTION The cable must stay between the system board and the hard drive cage. It might
be necessary to push the cable down so that it catches on the system board. This routing
method is important because it avoids interference with the CPU heatsink fans and blocking
airflow.

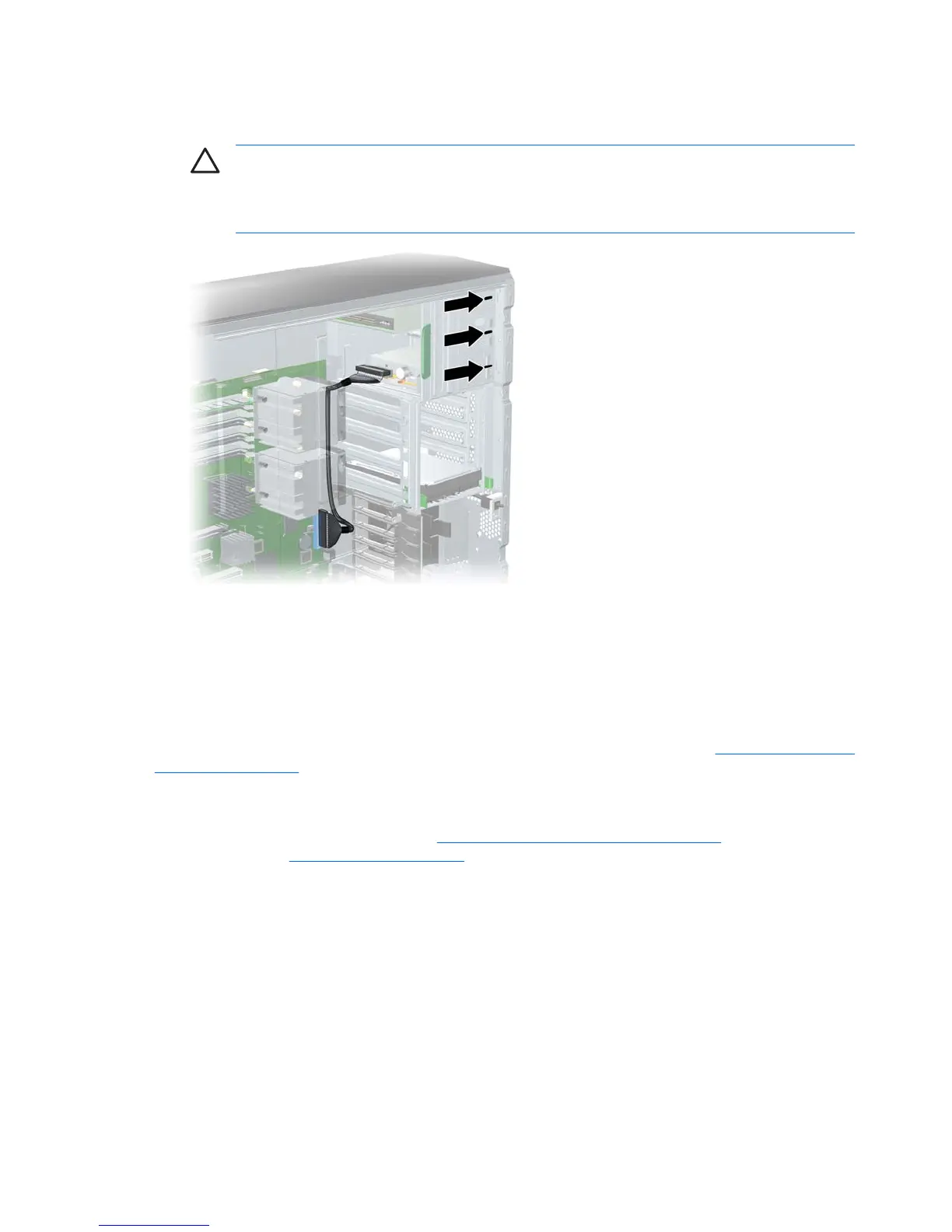

Figure 4-35 Routing the diskette drive cable to the system board
4. Connect the cables to the back of the diskette drive.
Hard drive
Replacing a hard drive
For more information on SATA hard drives and the SATA RAID configuration, see Appendix B —SATA
devices on page 137.
Removing a hard drive
1. Disconnect power from the system (
Pre-disassembly procedures on page 53), and remove the
access panel (
Access panel on page 58).
2. Disconnect the cables from the hard drive.
82 Chapter 4 Removal and replacement procedures ENWW
