4. Attach a data cable from a SATA connector on the system board to the hard drive, and attach the
fifth drive power cable to the drive.

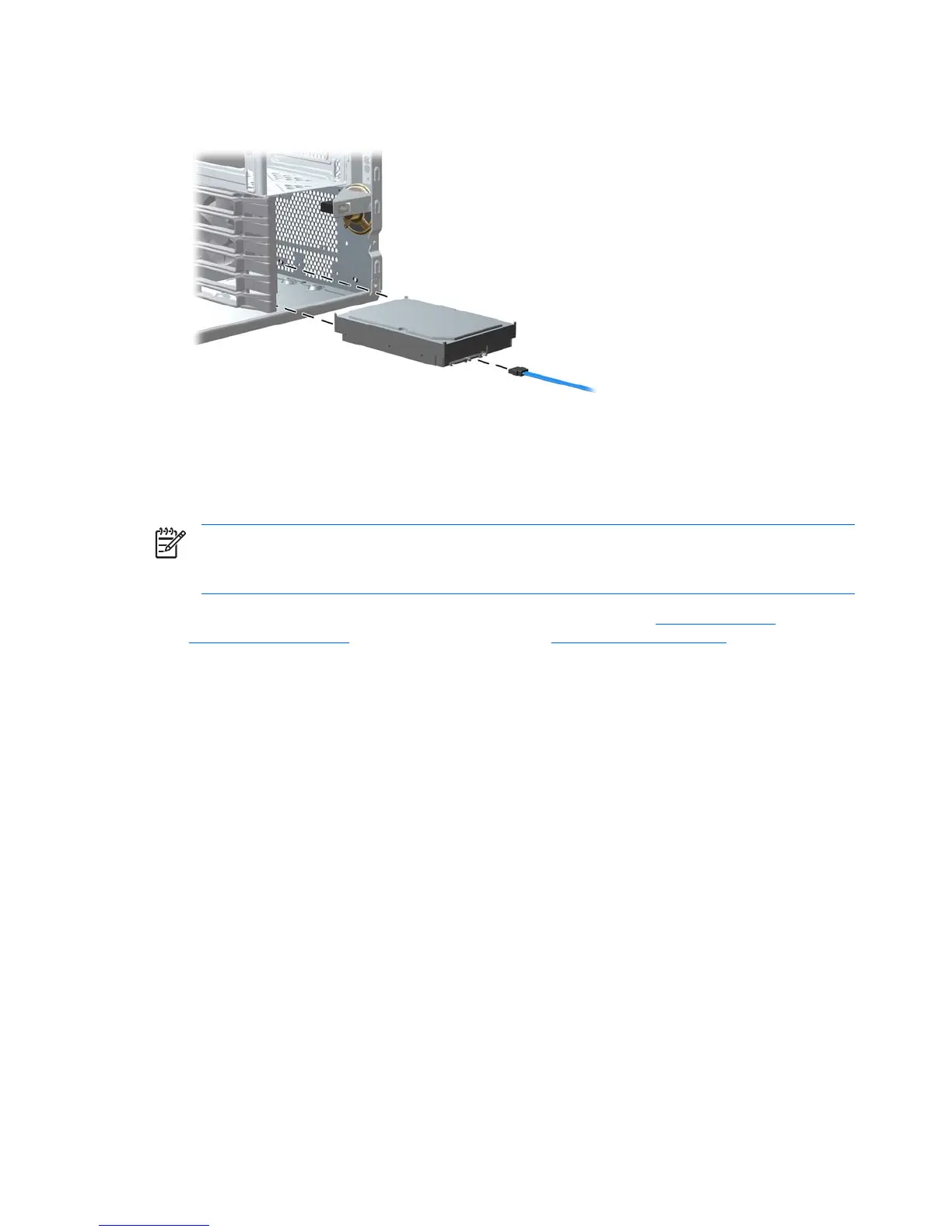

Figure 4-42 Attaching the data cable for the SATA hard drive in the fifth hard drive bay
Processor heatsink
Removing the CPU heatsink
NOTE The following illustrated CPU heatsink is typical of what you might have in your
workstation. Be aware that different variations of the CPU heatsinks exist, but the overall
procedures listed are sufficient to assist you in removing the CPU heatsink.
1. Shut down the workstation, and disconnect power from the system ( Pre-disassembly
procedures on page 53). Remove the access panel (Access panel on page 58), and place the
workstation on its side with the system board facing up.
