2. Disconnect the audio (1), data (2), and power (3) cables from the drive. The connector colors might
be different than illustrated.
NOTE The audio cable is only required for Linux-based systems.

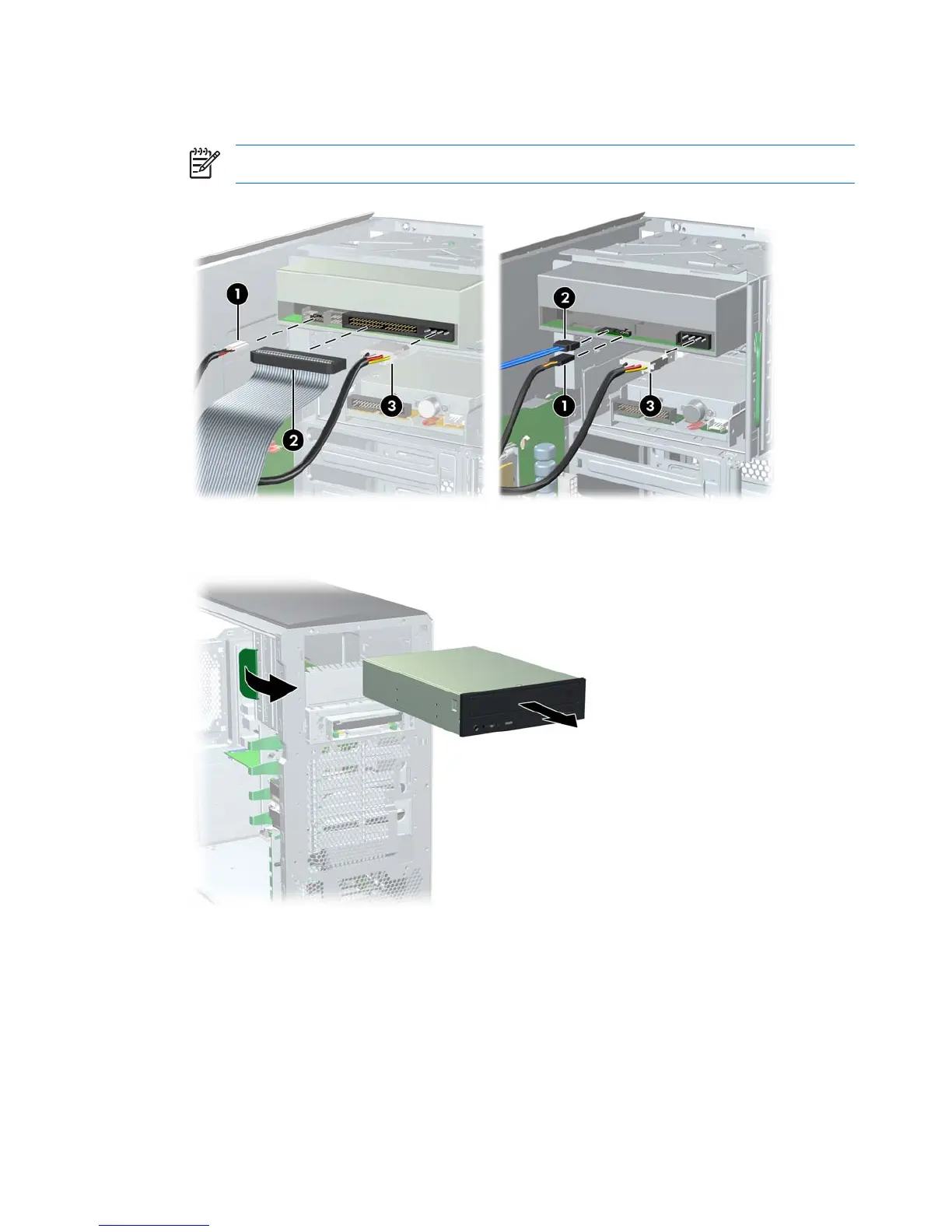

Figure 4-28 Disconnecting the IDE (left) or SATA (right) cable from the optical drive
3. Lift the green drivelock release lever, and gently slide the drive out of the chassis.
Figure 4-29 Removing the optical drive from the chassis
78 Chapter 4 Removal and replacement procedures ENWW
