2. Raise the processor socket handle (1) fully (the full swing angle of the lever is approximately 105
degrees). Lift the processor socket cover (2).

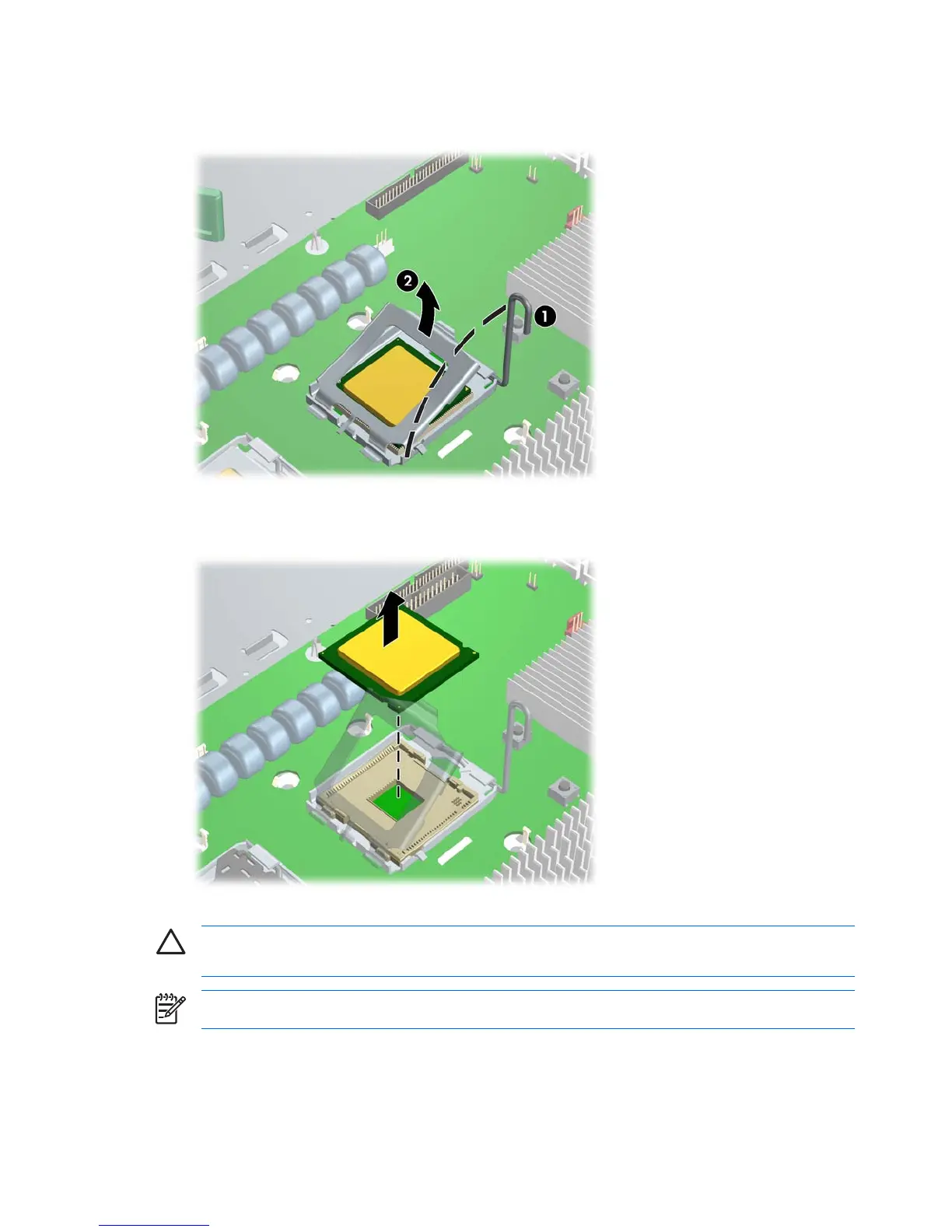

Figure 4-47 Raising the processor socket handle
3. Lift the processor straight out of the socket.
Figure 4-48 Lifting the processor from the socket
CAUTION To avoid bending the socket pins, keep the processor perfectly flat when removing
or installing it.
NOTE Store the processor in a safe place where it will not be damaged.
90 Chapter 4 Removal and replacement procedures ENWW
