HP Z400 Workstation chassis components
The following figure shows the chassis components of a typical HP Z400 Workstation. Drive
configurations can vary.

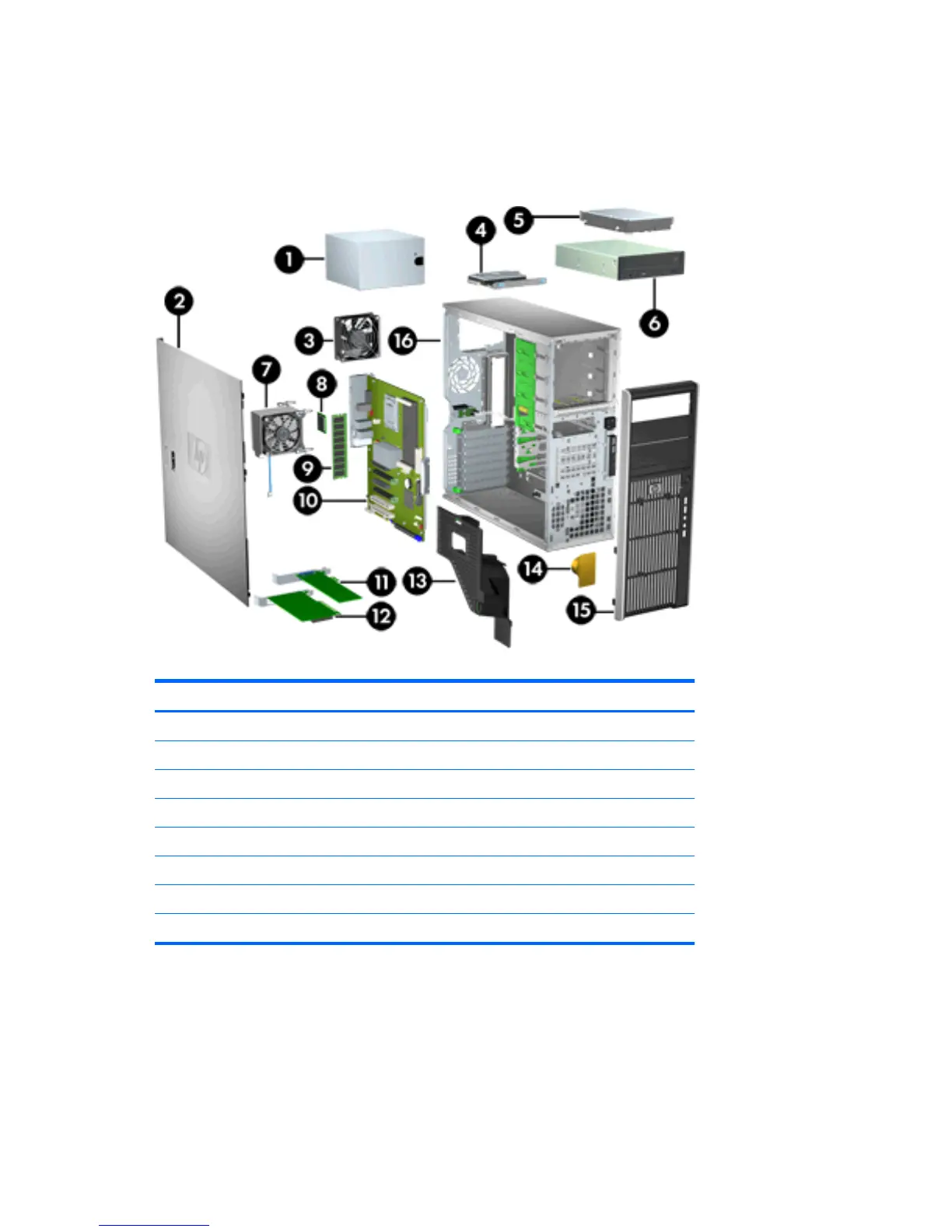

Figure 2-1 HP Z400 Workstation chassis components
Table 2-1 HP Z400 Workstation chassis components description
Item Description Item Description
1 Power supply 9 Memory module (DIMM)
2 Side access panel 10 System board
3 Rear system fan 11 PCIe card
4 SFF Hard drive 12 PCI card
5 Hard disk drive 13 Airflow guide (for 6-DIMM Z400 product)
6 Optical drive 14 Speaker
7 Processor (CPU) heatsink 15 Front bezel
8 Processor (CPU) 16 Chassis
8 Chapter 2 Workstation components ENWW
