HP Z Workstation series User Manual

HP Z800 Workstation chassis components

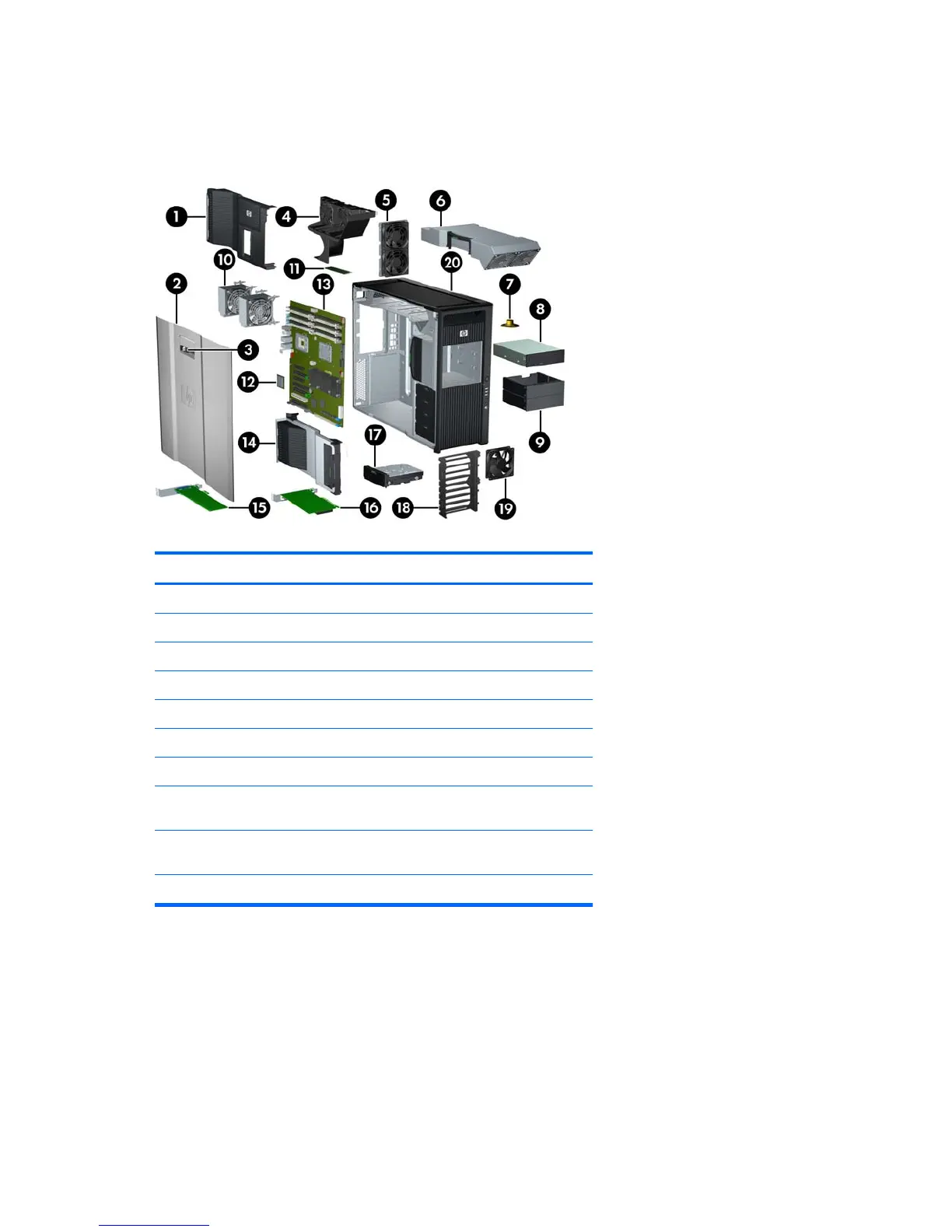

The following image shows a typical HP Z800 Workstation. Drive configurations can vary.
Figure 2-7 HP Z800 Workstation components
Table 2-7 HP Z800 Workstation component descriptions
Item Description Item Description
1 Airflow guide 11 Memory module (DIMM)
2 Side access panel 12 Processor (CPU)
3 Side access panel key lock 13 System board
4 Memory fans 14 Expansion card support
5 Rear system fans 15 PCIe card
6 Power supply 16 PCI card
7 Speaker 17 Hard disk drive
8 Optical drive 18 System board retainer/front
fan holder
9 Optical bay fillers (optional
or other devices)
19 Front system fan*
10 Processor (CPU) heatsinks 20 Chassis
*
*Two fans installed in 1110W power supply version.
16 Chapter 2 Workstation components ENWW

HP Z Workstation series Specifications

General

Processor Options	Intel Xeon
Graphics Options	NVIDIA Quadro, AMD Radeon Pro
Storage Options	SSD, HDD, NVMe
Operating System	Windows 10 Pro, Windows 11 Pro, Linux
Expansion Slots	Multiple PCIe slots
Ports	USB Type-A, USB Type-C, DisplayPort, audio
Networking	Gigabit Ethernet, Wi-Fi
Form Factor	Tower
Chipset	Intel C422
Power Supply	Various wattages depending on configuration
