HP Z400 Workstation front panel components

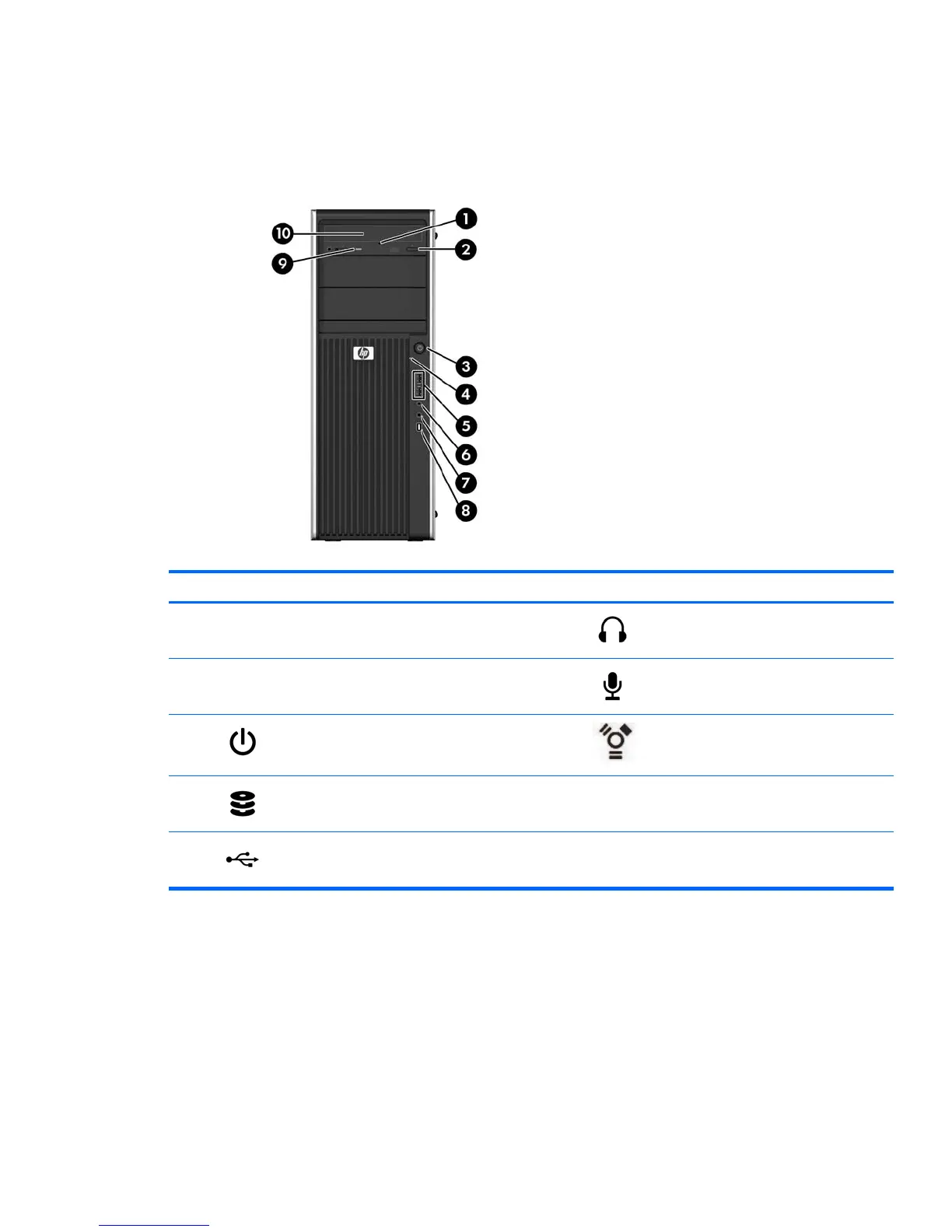

The following figure shows the front panel of a typical HP Z400 Workstation. Drive configurations can
vary.
Figure 2-2 HP Z400 Workstation front panel components
Table 2-2 HP Z400 Workstation front panel components description
*
Item Symbol Description Item Symbol Description
1 Optical drive manual eject 6
Headphone connector
2 Optical drive eject button 7
Microphone connector
3
Power button 8 1394a connector (optional and
plugged unless configured)
4
Hard drive activity light 9 Optical drive activity light
5
USB 2.0 ports (2) 10 Optical drive
*
See the Maintenance and Service Guide for the workstation for specific front panel component information.
ENWW HP Z400 Workstation components 9
