8 Installing PCI/PCIe devices
This section describes how to install a PCI or PCIe card in the workstation. To increase the
performance and functionality of your system, PCI/PCIe devices such as graphics cards or audio
cards can be installed in the expansion card slots on the workstation.

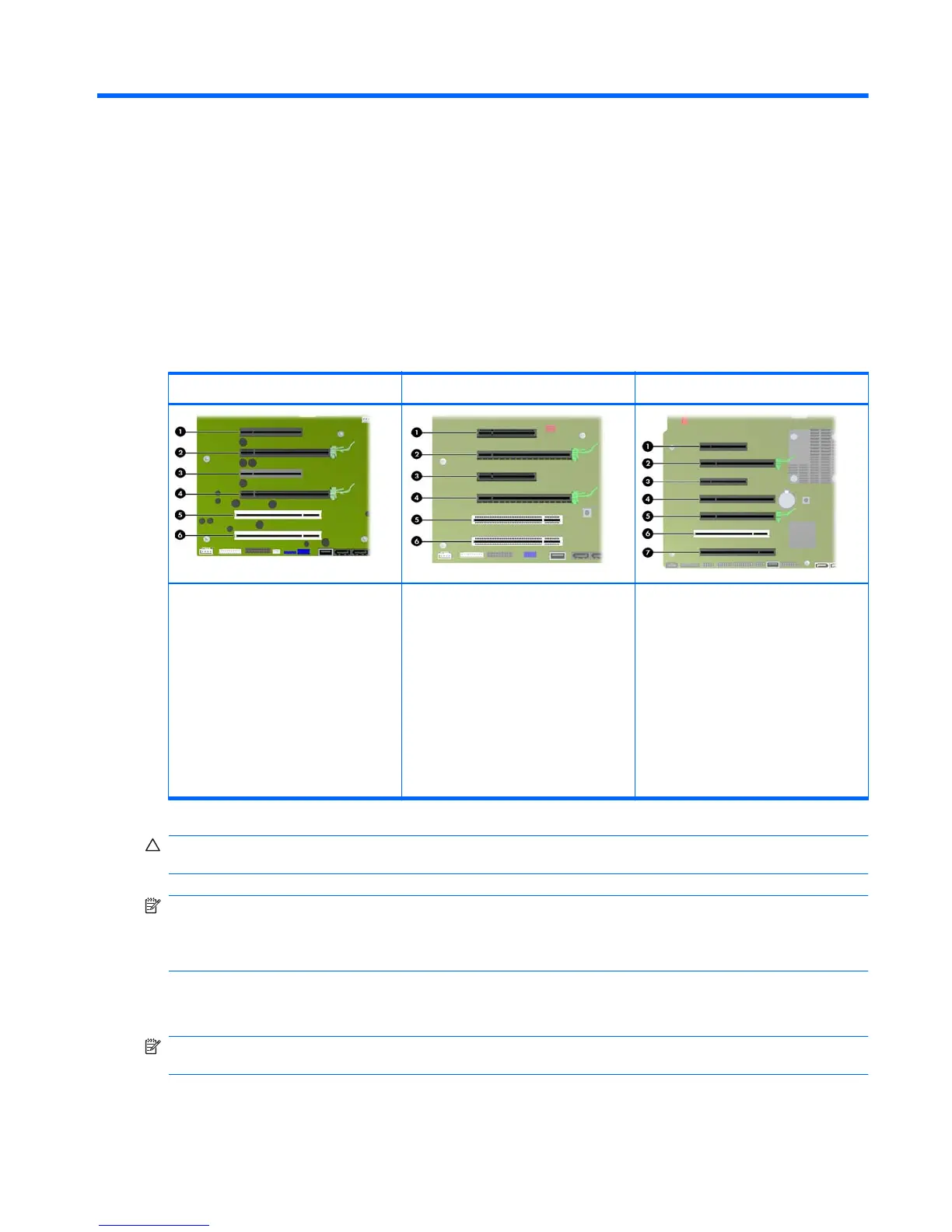

Expansion card slot identification
The following table describes the expansion card slots in the HP Z Workstation series.
Z400 Z600 Z800
Slot description
●
1–PCIe2 - x8 (4) 25W
●
2–PCIe2 - x16 75W
●
3–PCIe - x8 (4) 25W
●
4–PCIe2 - x16 75W
●
5–PCI 32/33 25W
●
6–PCI 32/33 25W
Slot description
●
1–PCIe2 - x8(4) 25W
●
2–PCIe2 - x16 75W
●
3–PCIe - x8(4) 25W
●
4–PCIe2 - x16 75W
●
5–PCI 32/33 25W
●
6–PCI 32/33 25W
Slot description
●
1–PCIe2 x8(4) 25W
●
2–PCIe2 x16 75W
●
3–PCIe x8(4) 25W
●
4–PCIe2 x16(8) 25W
●
5–PCIe2 x16 75W
●
6–PCI 32/33 25W
●
7–PCIe x16(8) 25W
CAUTION: To prevent damage, the overall power consumption of the system (including I/O cards,
CPU, and memory) must not exceed the maximum rating of the system power supply.
NOTE: The x1, x4, x8, and x16 designators describe the mechanical length of the slot. The number
in parentheses lists the number of electrical PCIe lanes routed to the expansion slot. For example,
x16(8) means that the expansion slot is mechanically a x16 length connector, with eight PCIe lanes
connected.
Installing an expansion card
NOTE: The following procedure describes how to install an expansion card in a typical HP Z-series
workstation. Your workstation may look different.
ENWW Expansion card slot identification 53
