HP Z Workstation series User Manual

HP Z600 Workstation rear panel components
The following figure shows the rear panel of a typical HP Z600 Workstation.

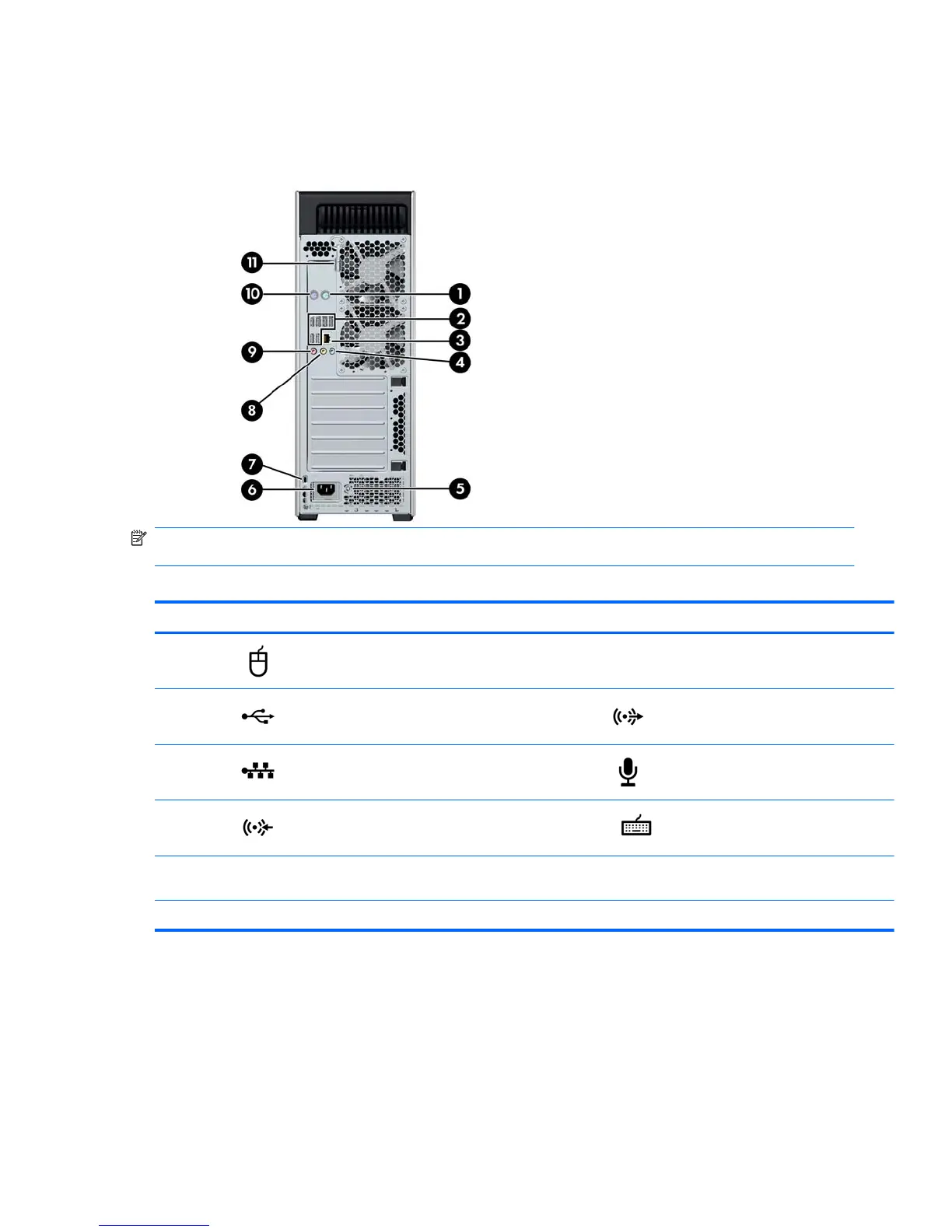

Figure 2-6 HP Z600 Workstation rear panel
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to assist in
connecting peripheral devices.
Table 2-6 HP Z600 Workstation rear panel connectors
Item Symbol Description Item Symbol Description
1
PS/2 mouse connector (green) 7 Cable lock slot
2
USB 2.0 ports (6) 8 Audio line-out connector (green)
3
RJ-45 network connector 9 Microphone connector (pink)
4
Audio line-in connector (blue) 10 PS/2 keyboard connector (purple)
5 Power supply Built-In Self Test (BIST)
LED
11 Side access panel key
6 Power cord connector
14 Chapter 2 Workstation components ENWW

HP Z Workstation series Specifications

General

Processor Options	Intel Xeon
Graphics Options	NVIDIA Quadro, AMD Radeon Pro
Storage Options	SSD, HDD, NVMe
Operating System	Windows 10 Pro, Windows 11 Pro, Linux
Expansion Slots	Multiple PCIe slots
Ports	USB Type-A, USB Type-C, DisplayPort, audio
Networking	Gigabit Ethernet, Wi-Fi
Form Factor	Tower
Chipset	Intel C422
Power Supply	Various wattages depending on configuration
