HP Z600 Workstation chassis components
The following image shows a typical HP Z600 Workstation. Drive configurations can vary.

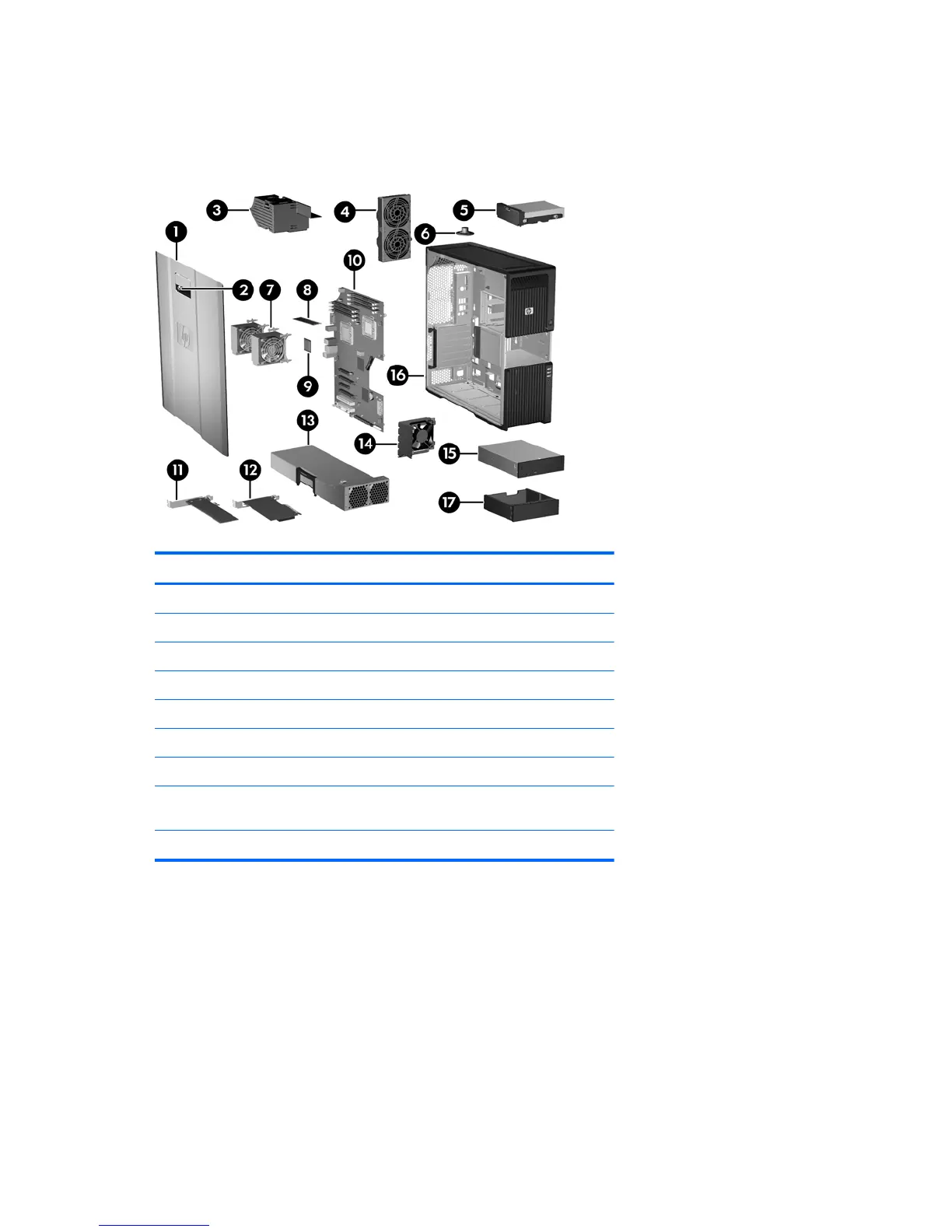

Figure 2-4 HP Z600 Workstation components
Table 2-4 HP Z600 Workstation component descriptions
Item Description Item Description
1 Side access panel 10 System board
2 Side access panel key lock 11 PCIe card
3 Memory duct/fan housing 12 PCI card
4 Rear system fans 13 Power supply
5 Hard drive 14 Card guide and front fan
6 Speaker 15 Optical drive
7 Processor (CPU) heatsinks 16 Chassis
8 Memory module (DIMM) 17 Optical bay fillers (optional or
other devices)
9 Processor (CPU)
