HP Z Workstation series User Manual

HP Z800 Workstation rear panel components

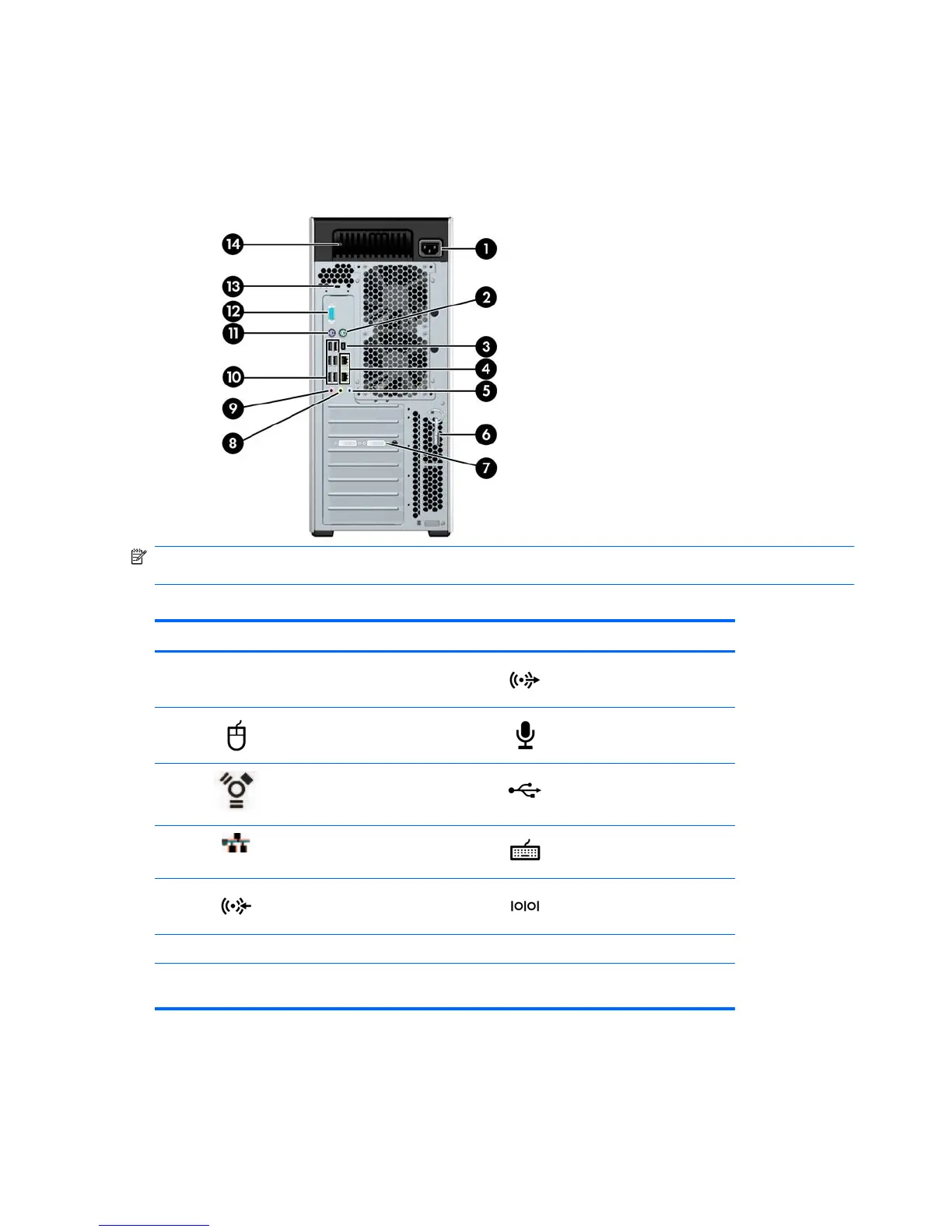

The following illustration shows the rear panel of a typical HP Z800 Workstation. Drive configurations
can vary.
Figure 2-9 HP Z800 Workstation rear panel
NOTE: The rear panel connectors are labeled with industry-standard icons and colors to assist in
connecting peripheral devices.
Table 2-9 HP Z800 Workstation rear panel connectors
Item Symbol Description Item Symbol Description
1 Power cord connector 8
Audio line-out connector
(green)
2
PS/2 mouse connector
(green)
9 Microphone connector (pink)
3
IEEE-1394 connector 10 USB 2.0 ports (6)
4
RJ-45 network connectors (2) 11 PS/2 keyboard connector
(purple)
5
Audio line-in connector (blue) 12 Serial connector
6 Side access panel key 13 Cable lock slot
7 Graphics connector 14 Power supply Built-In Self
Test (BIST) LED
18 Chapter 2 Workstation components ENWW

HP Z Workstation series Specifications

General

Processor Options	Intel Xeon
Graphics Options	NVIDIA Quadro, AMD Radeon Pro
Storage Options	SSD, HDD, NVMe
Operating System	Windows 10 Pro, Windows 11 Pro, Linux
Expansion Slots	Multiple PCIe slots
Ports	USB Type-A, USB Type-C, DisplayPort, audio
Networking	Gigabit Ethernet, Wi-Fi
Form Factor	Tower
Chipset	Intel C422
Power Supply	Various wattages depending on configuration
