Front panel components

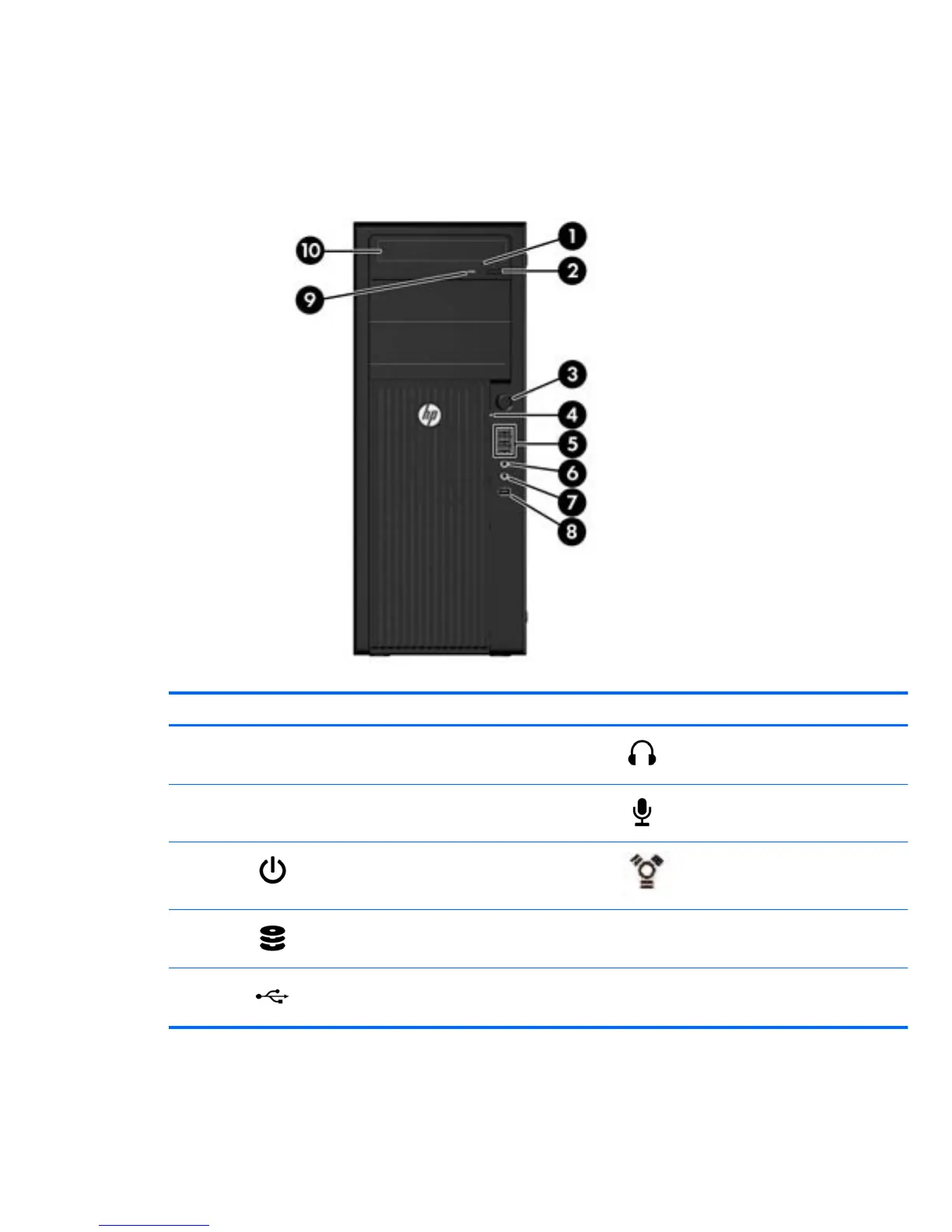

The following figure shows the front panel of an HP Z210 CMT Workstation. Drive configurations can
vary.
Figure 1-3 Workstation front panel
Table 1-2 Workstation front panel connectors
Item Symbol Description Item Symbol Description
1 Optical drive manual eject 6
Headphone connector
2 Optical drive eject button 7
Microphone connector
3
Power button 8 1394a connector (optional and
plugged unless configured)
4
Hard drive activity light 9 Optical drive activity light
5
USB 2.0 ports (3) 10 Optical drive
