CPU
This section describes how to remove and install a CPU.
Removing a CPU
To remove a CPU:
1. Disconnect power from the workstation (see
Predisassembly procedures on page 62).
2. Remove the side access panel (see
Removing the side access panel on page 65).
3. Remove the CPU heatsink (see
Removing the CPU heatsink on page 98).
4. Raise the CPU socket lever (1) and open the cover (2) as shown in the following figure.

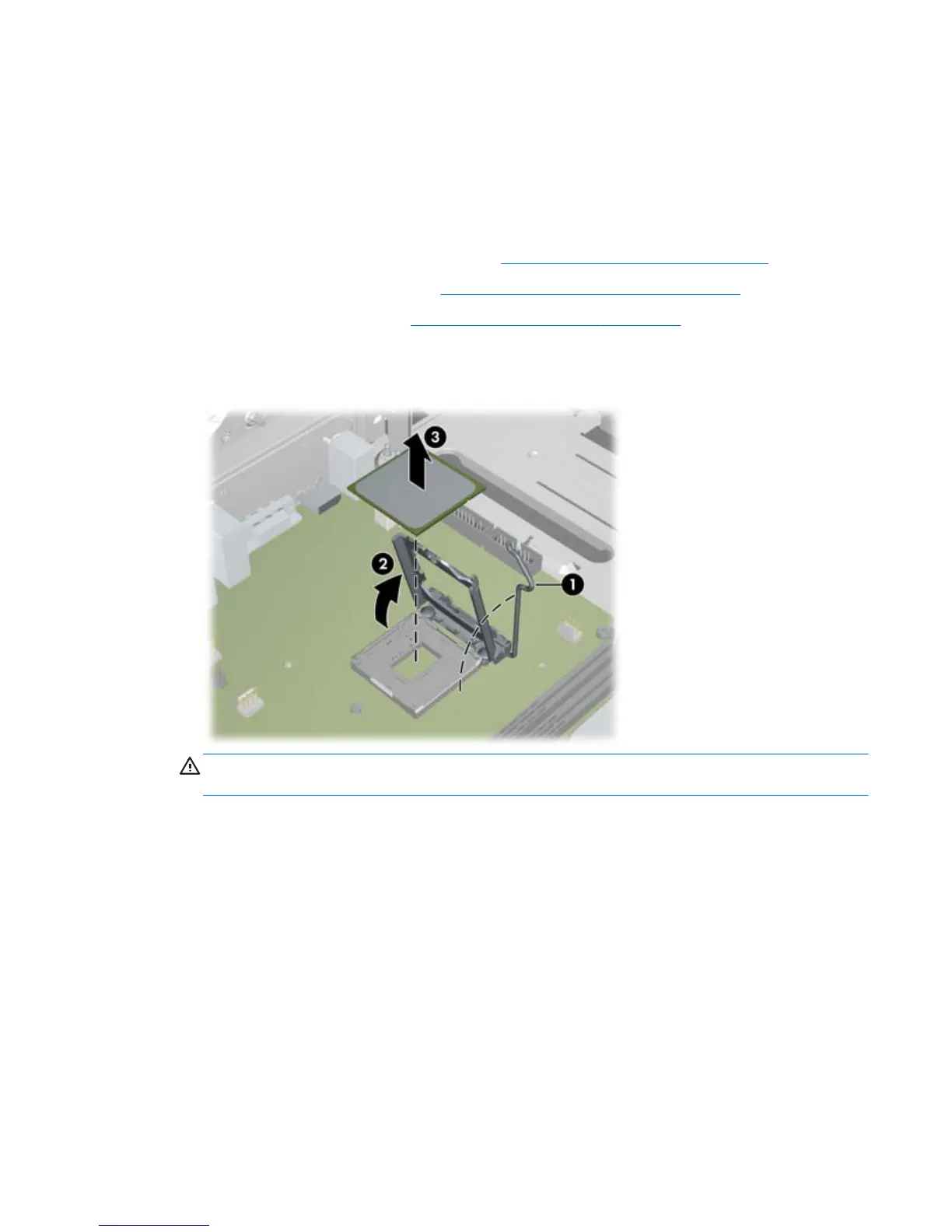

Figure 5-41 Removing a CPU
CAUTION: Do not touch the CPU socket contacts or the gold pads underneath the CPU. Use
extreme care and handle the CPU only by the edges.
5. Pull the CPU straight out of the socket (3). Store the CPU in a static free container in a safe place
where it cannot be damaged.
