Installing the front panel I/O device assembly
To instal the front panel I/O device assembly:
1. Guide the front panel I/O device assembly cables through the chassis openings from which they
were removed.
2. Place the front panel I/O device assembly in the chassis, and then install the fastening screws in
reverse order as they were removed.
3. Connect the front panel I/O audio (1), USB (2) cables, and power switch/LED cable (3) to the
system board as shown in the following diagram.

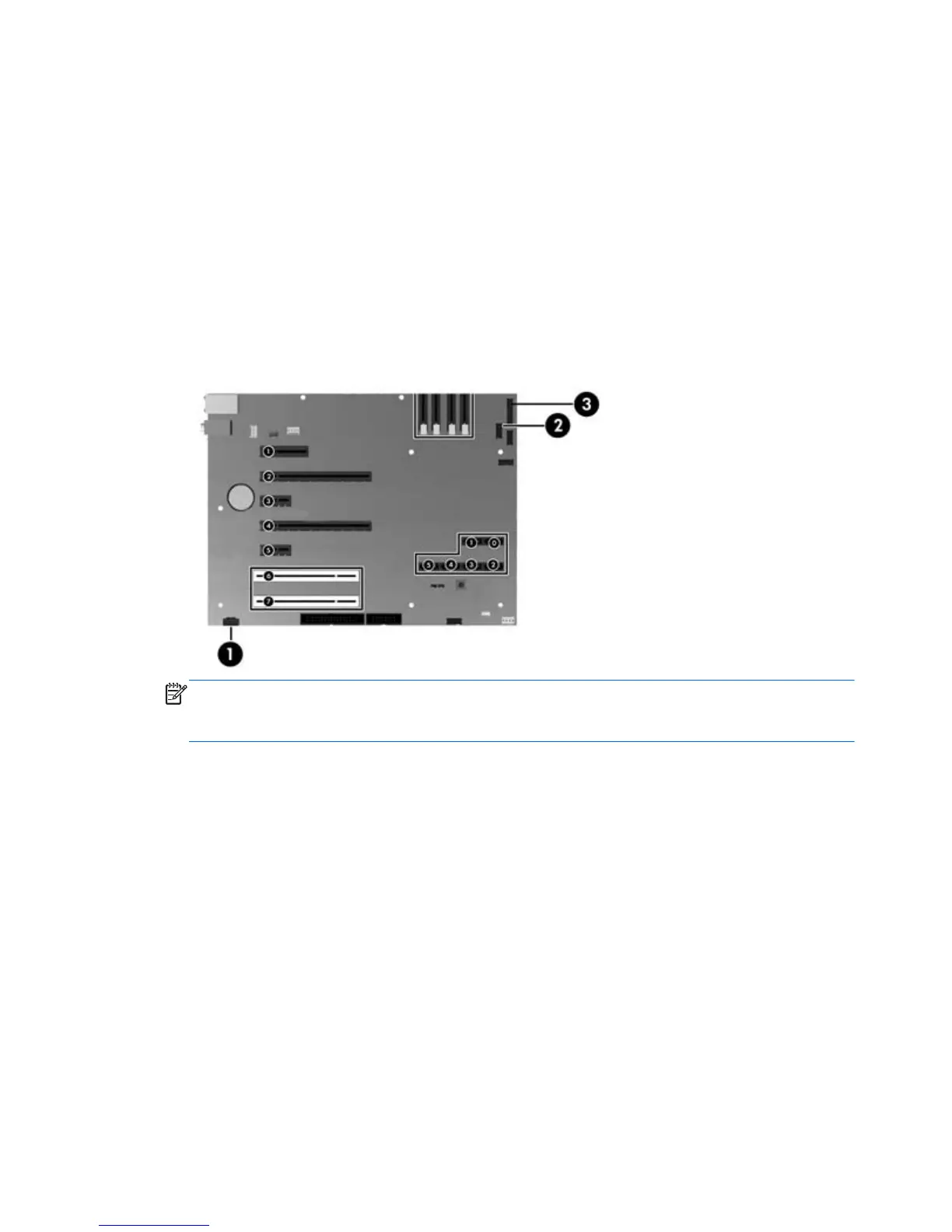

Figure 5-9 Connecting the front panel I/O device cables
NOTE: The front panel I/O device assembly also has a 1394a cable. This cable can be
connected to an optional 1394 expansion card or clipped to the bottom of the chassis with the
plastic clip provided.
70 Chapter 5 Replacing components ENWW
