Rear system fan assembly
This section describes how to remove and install the rear system fan assembly.
Removing the rear system fan assembly
To remove the rear system fan assembly:
1. Disconnect power from the workstation (see
Predisassembly procedures on page 62).
2. Remove the side access panel (see
Removing the side access panel on page 65).
3. Disconnect the rear system fan assembly cable (1) from the system board as shown in the
following figure.

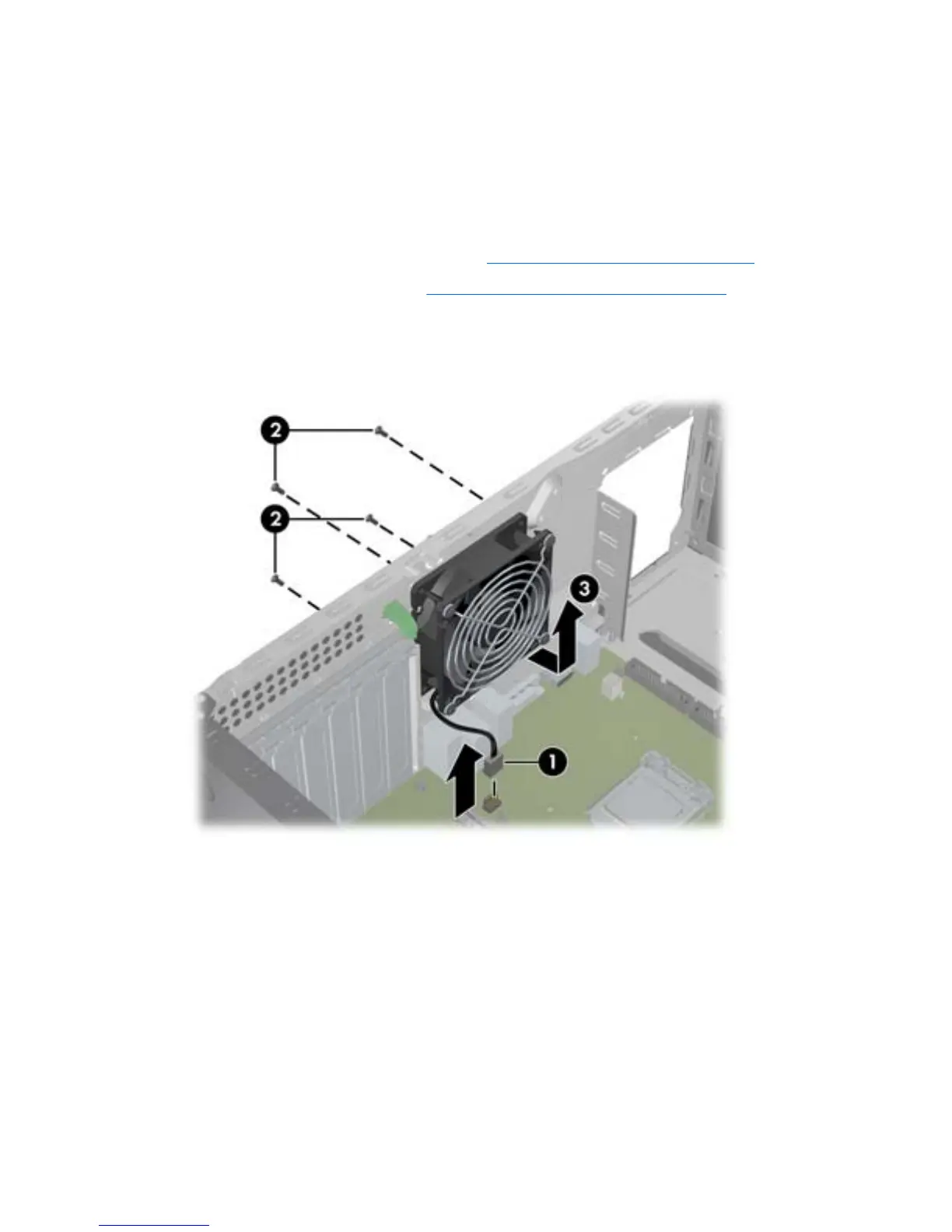

Figure 5-23 Disconnecting fan wires
4. Remove the four screws from the rear of the chassis (2), and then pull the fan assembly inward
and then up (3) out of the chassis.
Installing the rear system fan assembly
To install the rear system fan assembly, reverse these steps.
82 Chapter 5 Replacing components ENWW
