3. Remove the front bezel (see Removing the front bezel on page 68).
4. Remove the fastening screws from the I/O device assembly and remove it from the chassis as
shown in the following figure.

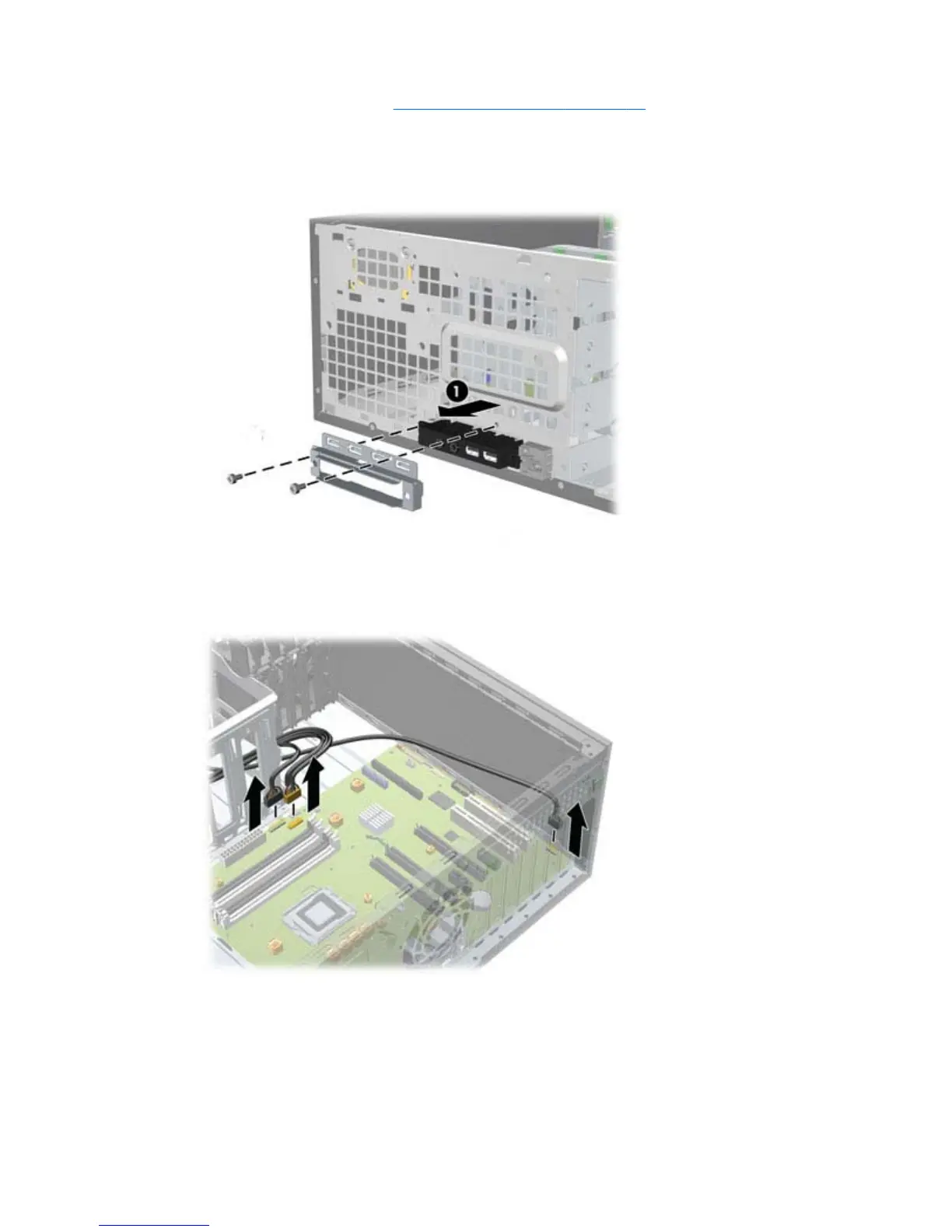

Figure 5-7 Removing the front panel I/O device assembly
5. Disconnect the front panel I/O device assembly cables from the system board as shown below.
Figure 5-8 Disconnecting the front panel I/O cables
6. Carefully guide the front panel I/O device assembly from the chassis.
