HP Z210

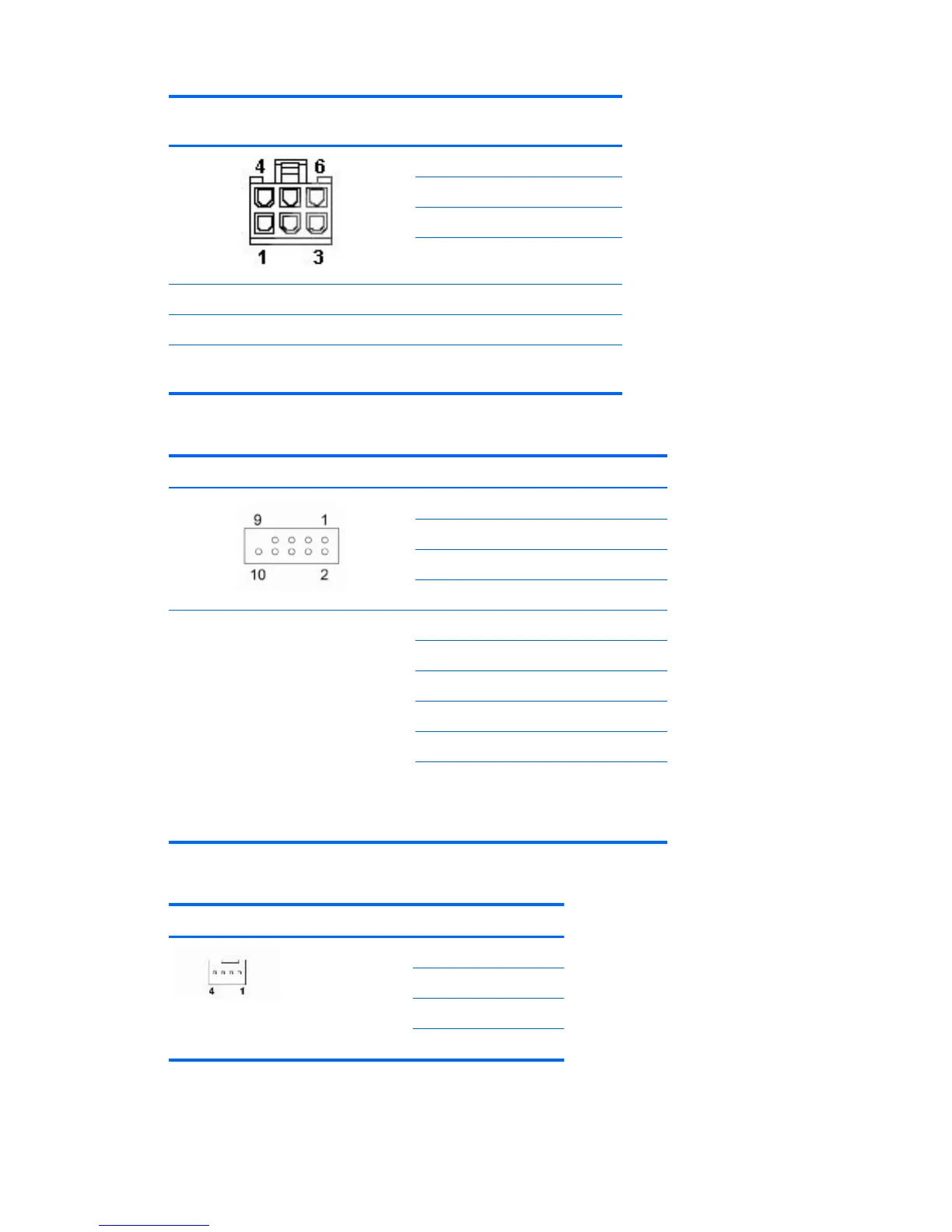

Auxiliary graphics card power
cable, P6
Pin Color Signal
1BLK/YELV12–G
2BLK/YELV12–G
3BLK/YELV12–G
4BLK GND
5BLK GND
6BLK GND
NOTE: The 6-pin power (auxiliary PCIe cable with black connector) can
provide up to 75 watts to PCIe graphics cards.
Internal USB 1 and USB 2, 2x5 Pin Signal (USB1) Signal (USB2)
1 +5V +5V
2 +5V +5V
3USB6# USB7#
4USB9# USB8#
CAUTION: Possible equipment damage.
The 2x5 connector can be mated to either
a wide 2x5 option cable connector or a
narrow 1x5 option cable connector.
To prevent damage to the connectors,
always connect a narrow 1x5 option cable
connector to pins 1,3,5, and 7 only of the
2x5 connector (pin 9 is not keyed on the
connector).
NOTE: USB 1 is DASH compatible using
pins 1, 3, 5, 7, and 10 (SMI).
5 USB6 USB7
6 USB9 USB8
7GND GND
8GND GND
9 (not keyed) (not keyed)
10 DETECT DETECT
Rear system fan Pin Signal
1GND
2 +12V
3Tach
4PWM
