4. Align the DIMM connector key with the DIMM socket key, and then seat the DIMM firmly in the
socket (1) as shown in the following figure.
CAUTION: DIMMs and their sockets are keyed for proper installation. To prevent socket or
DIMM damage, align these guides properly when installing DIMMs.

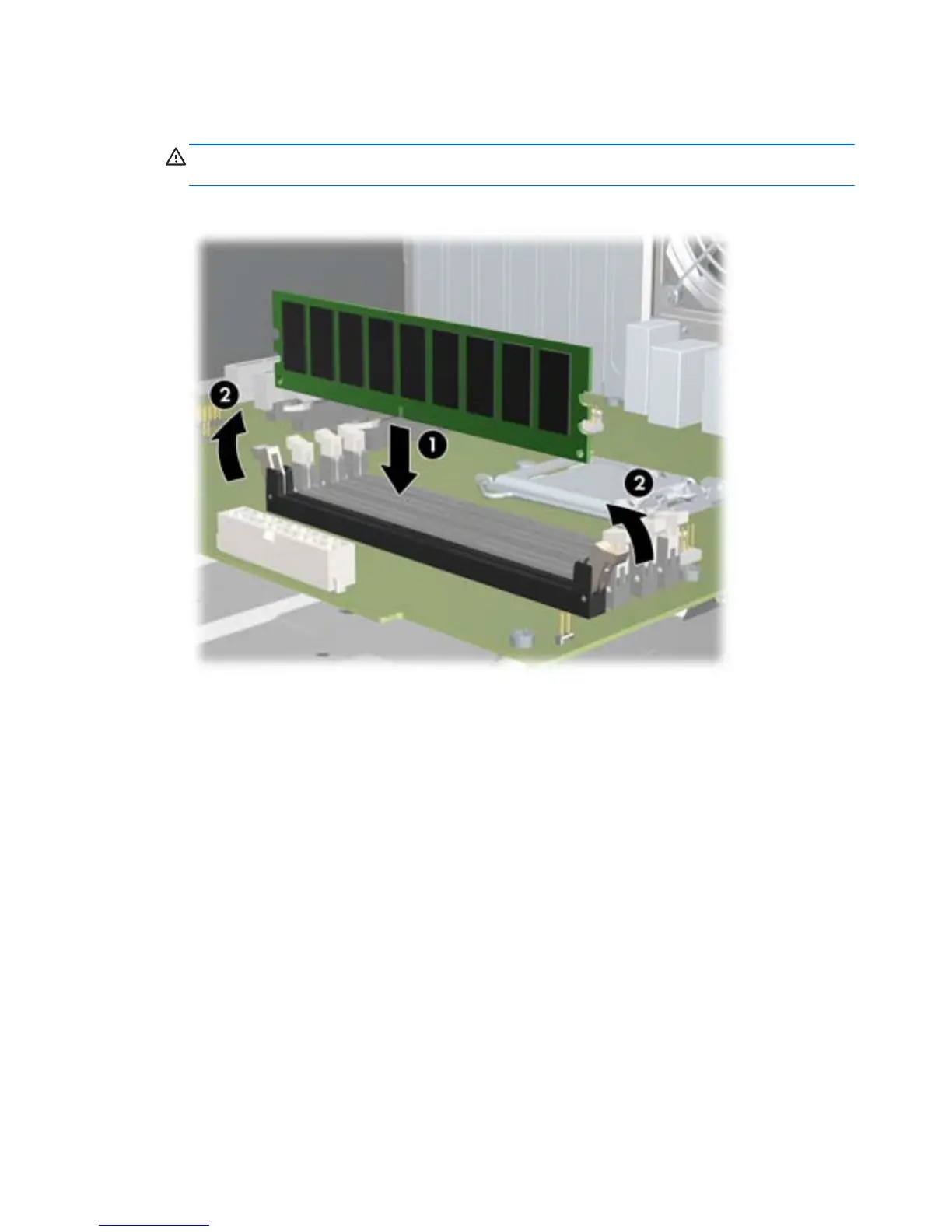

Figure 5-27 Seating the DIMM
5. Secure the socket levers (2).
86 Chapter 5 Replacing components ENWW
