3) Pin solder with soldering iron and absorber.
NA
4) Lift the connector up and away from the PCB.
NO
Connector repair
This procedure includes HDMI, Display Port, Mini Display Port, USB-C, USB-A and RJ45 connectors.

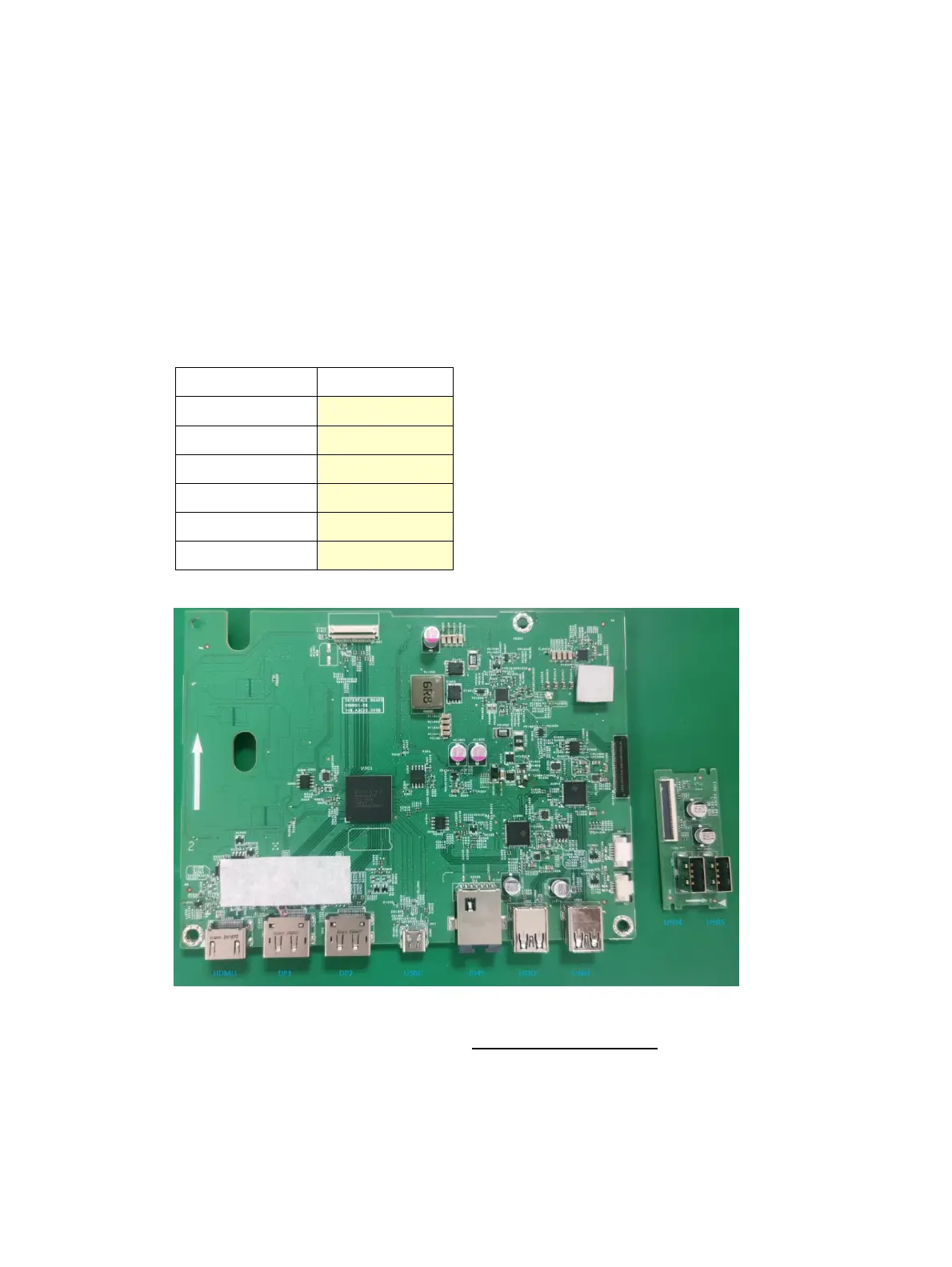

The connectors are on the main board (board part number 7ZB.A3C01.0011).
The connector identifiers are as follows:
Connector
Location
HDMI
HDMI1
DP
DP1,DP2
USB-C
USBC
RJ45
RJ45
USB-A
USB2,USB3
USB-A
USB4,USB5
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
HDMI connector HDMI1
Repair the HDMI connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.

HP Z27U G3 Specifications

General

HD type	2K Ultra HD
Pixel pitch	0.233 x 0.233 mm
Screen shape	Flat
Display diagonal	27 \
Anti-glare screen	Yes
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Viewable size, vertical	335.7 mm
sRGB coverage (typical)	99 %
Contrast ratio (dynamic)	1000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	596.7 mm
Display brightness (typical)	350 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440
Product color	Black
Country of origin	China
Market positioning	Business
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.4
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	4
Pivot angle	0 - 90 °
Tilt angle range	-5 - 20 °
Number of OSD languages	10
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR
AC input voltage	100 - 240 V
Energy efficiency scale	A to G
Power consumption (max)	160 W
Power consumption (standby)	0.5 W
Power consumption (typical)	39 W
Sustainability certificates	ENERGY STAR, EPEAT Silver
Package depth	423 mm
Package width	698 mm
Package height	163 mm
Package weight	9400 g
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	205 mm
Width (with stand)	612.3 mm
Height (with stand)	530.4 mm
Weight (with stand)	6200 g
Depth (without stand)	38.9 mm
Height (without stand)	356.1 mm
Weight (without stand)	4700 g
