3) Lift the DP connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
USB-C connector USBC

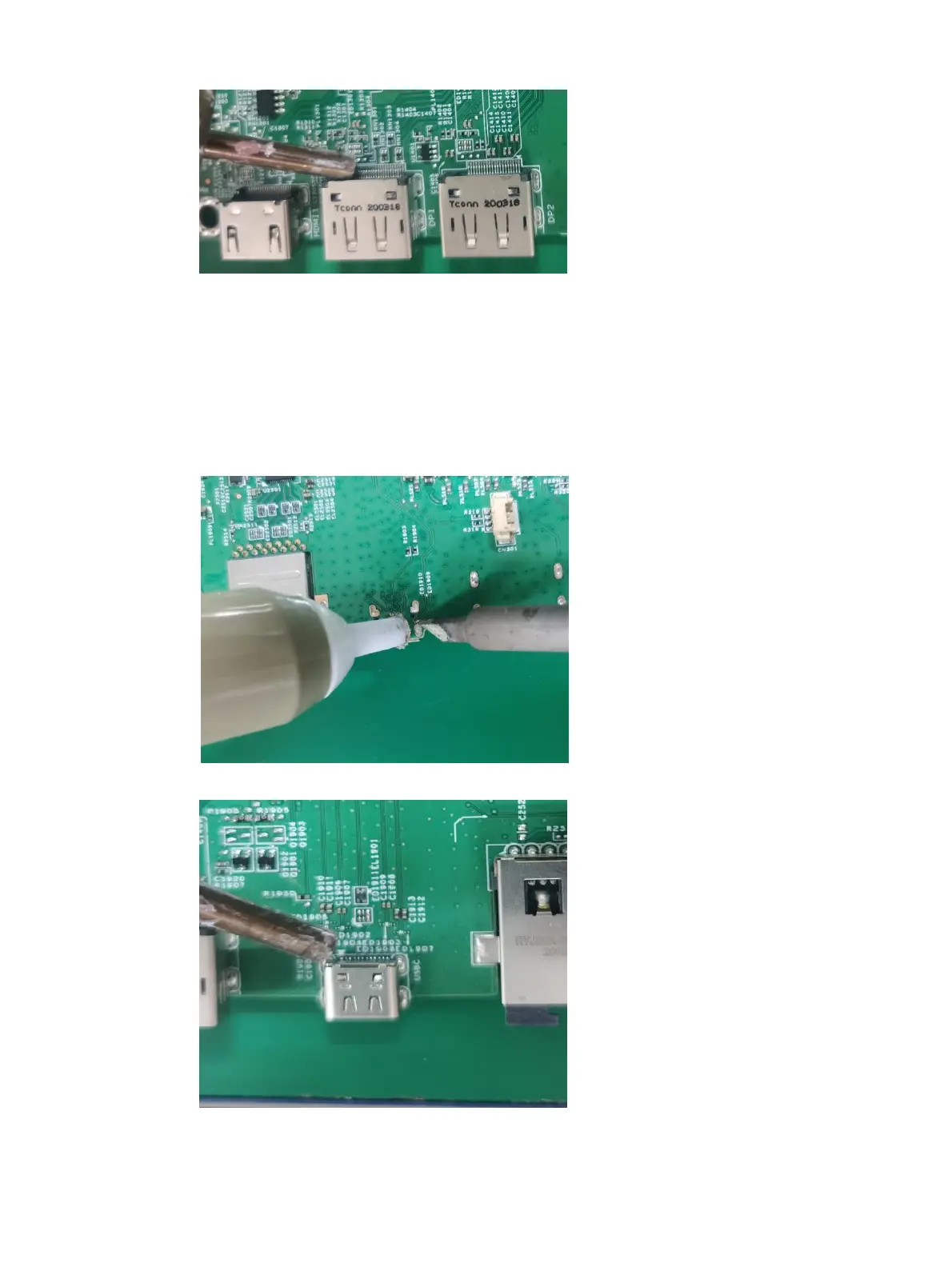

Repair the USB-C connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins
3) Lift the USB-C connector from the PCB.
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
Solder the new component
