a. On the left mounting positions, use a drill to bore pilot holes with a diameter of 7.920 mm (0.312 in) and
depth of at least 50.8 mm (2.00 in).

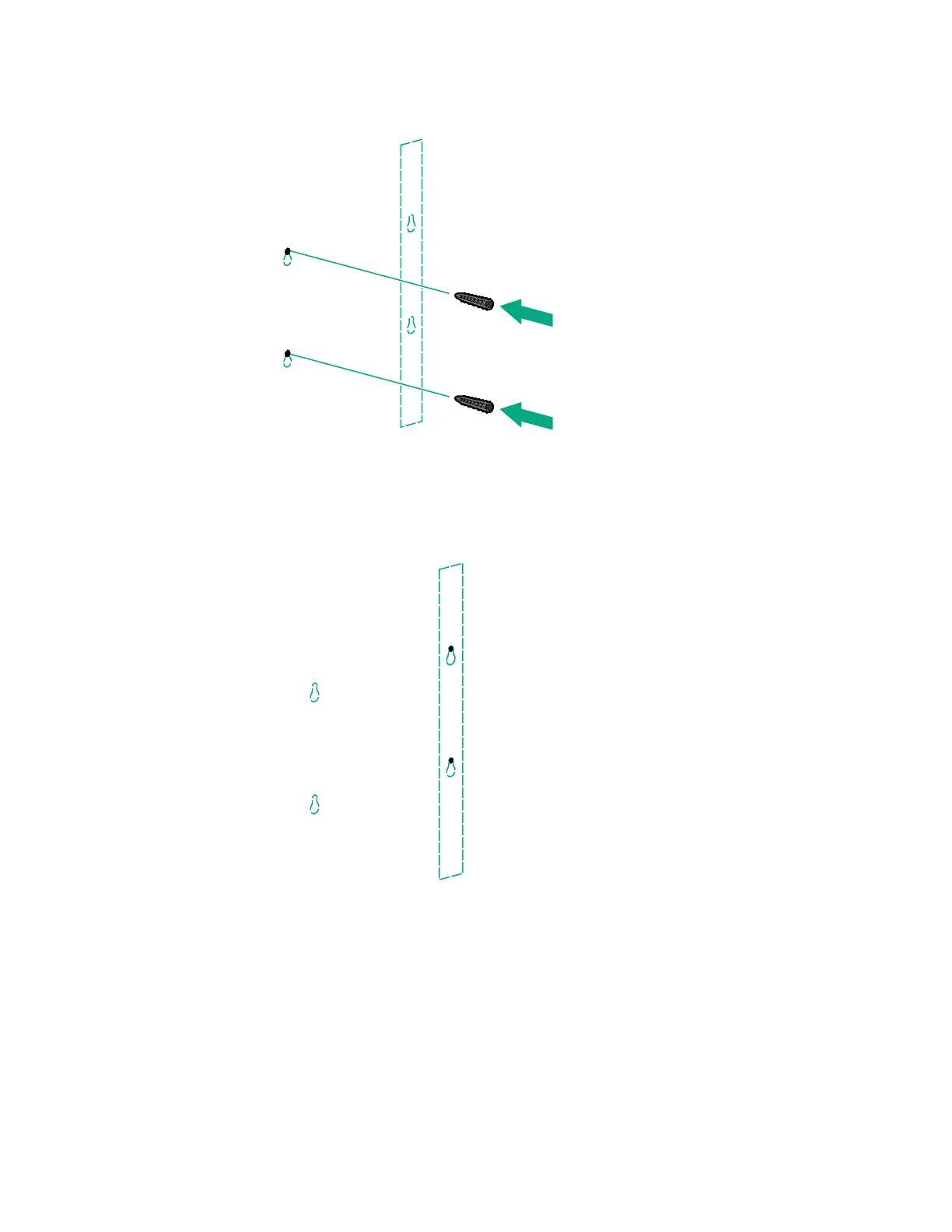

b. Use a hammer to install the anchors in the pilot holes.
4. In the stud side mounting positions, use a drill to bore pilot holes with a diameter of 3.175 mm
(0.125 in) and depth of at least 50.8 mm (2.00 in).
Wall anchors are not required on these locations.
5. Use a small wire brush to clean the right pilot holes.
6. Install the wall mount screws halfway through into the top mounting positions.
38 Hardware options installation
