HPE ProLiant Thin Micro TM200 - Rear Panel Leds and Button

Item Description
1 LAN port 1
1
2 LAN port 2
1
3 LAN port 3
1
4 LAN port 4
1
5 VGA port
6 iLO Management Port
2
7 WAN/LAN port 2
2
8 WAN/LAN port 1
2
9 USB 3.0 ports (2)
10 Power adapter jack
1
This connector is on the communication board.
2
This connector is on the system board.

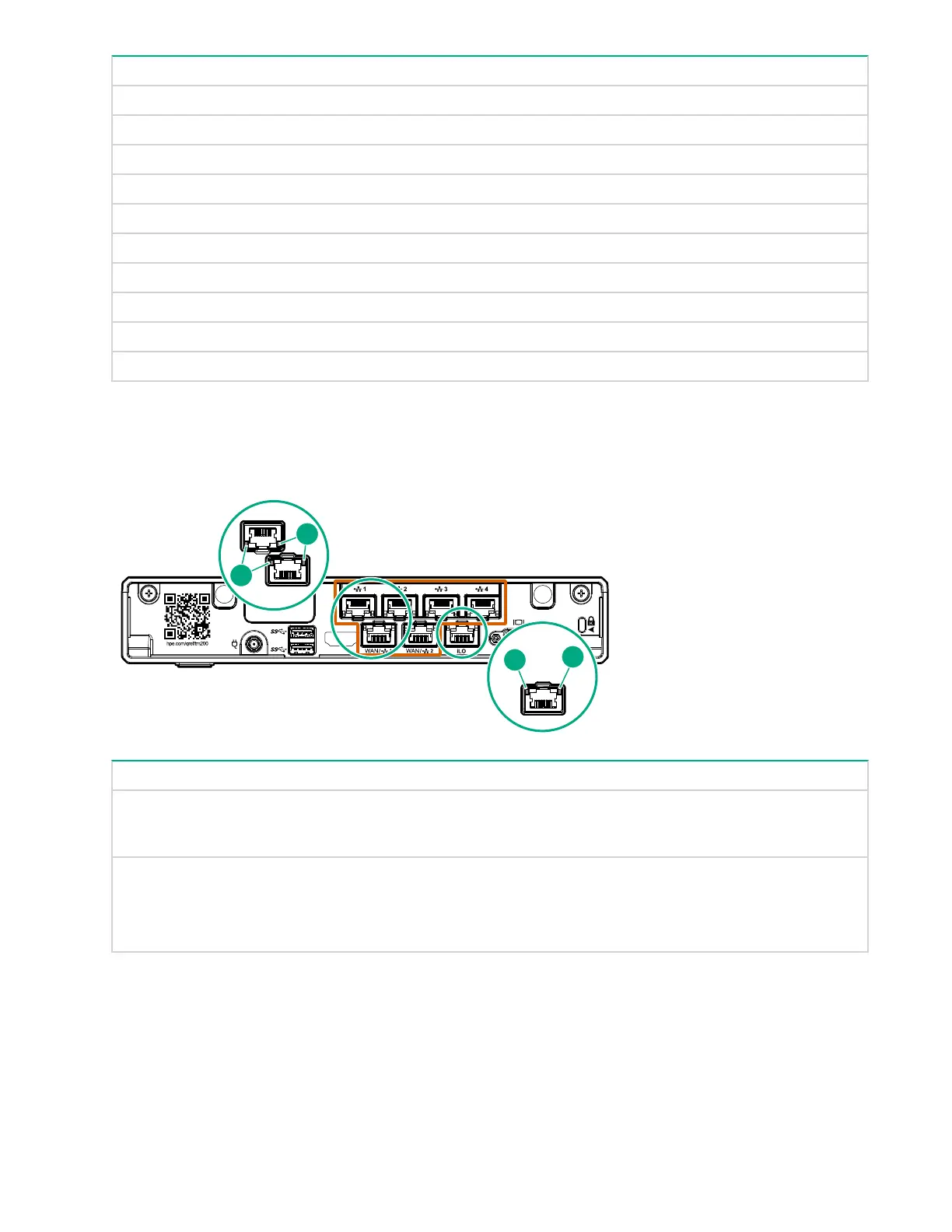

Rear panel LEDs and button
1
2
3
4
Item Description Status
1 NIC link LED
Solid green = Link exists
Off = No link exists
2 NIC status LED
Solid green = Linked to network
Flashing green = Network active
Off = No network activity
Table Continued
8 Rear panel LEDs and button
