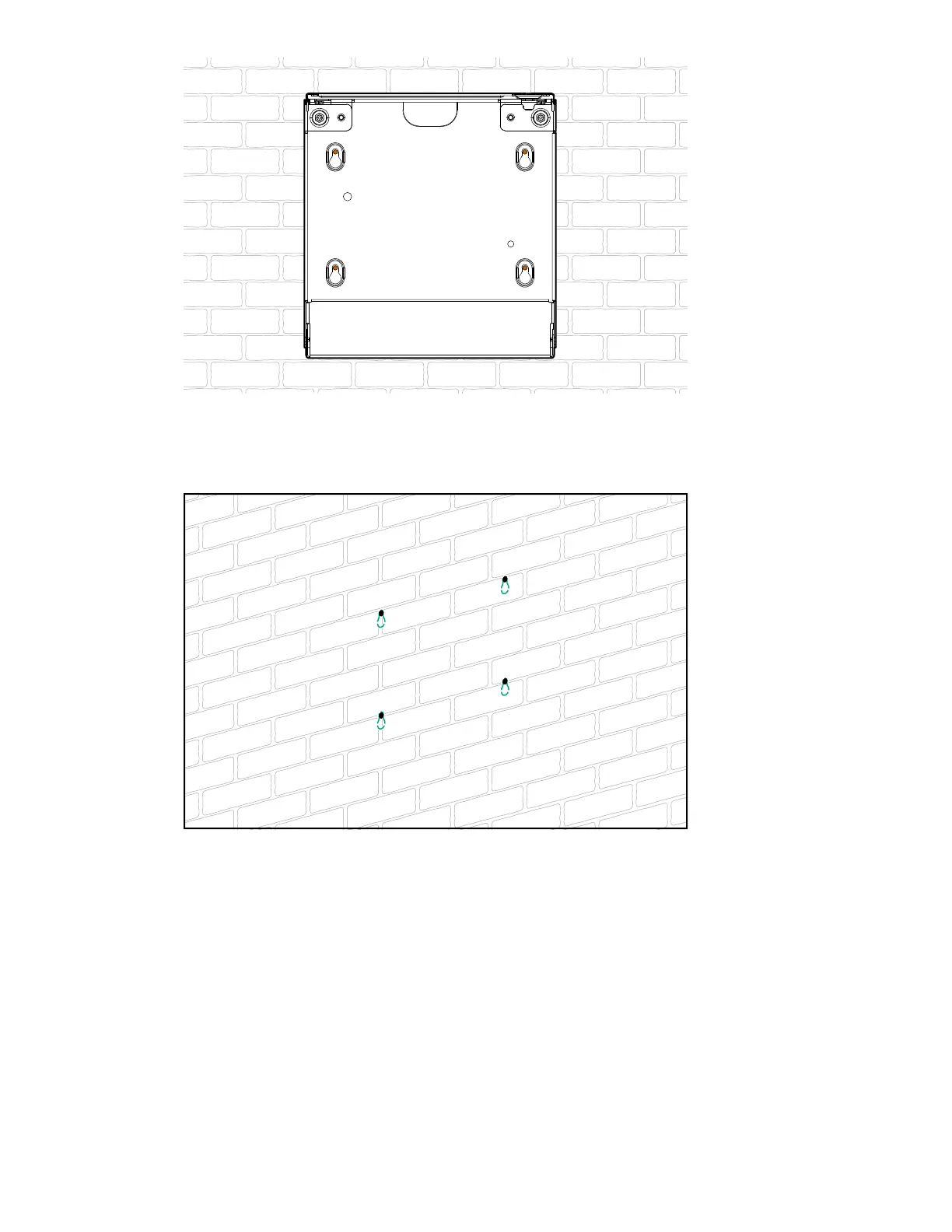

b. Use a level to ensure that the mounting positions are perfectly straight.
2. Install the wall mount anchors:
a. On all four mounting positions, use a drill to bore pilot holes with a diameter of 7.920 mm (0.312 in) and
depth of at least 50.8 mm (2.00 in).
b. Use a small wire brush to clean the pilot holes.
c. Use a hammer to install the anchors in the pilot holes.
Hardware options installation 41
