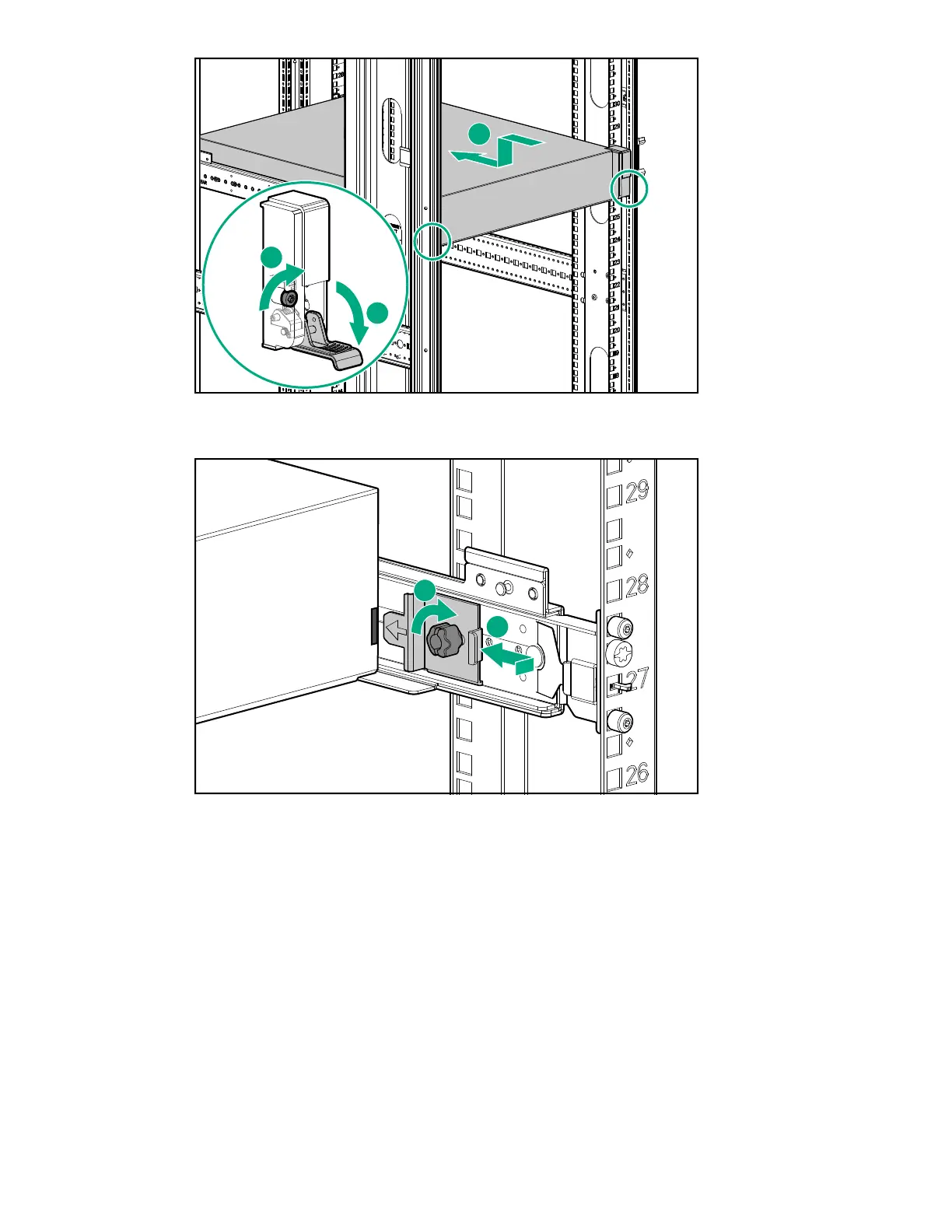

c. Attach the rear hold down brackets by sliding the tab with the arrow pointed forward into the
corresponding slot on the left and right side of the rear of the chassis.
8. Use the black headed thumb screw to secure the front of the enclosure to the rail tightly.
9. Use the supplied SAS cables to connect the first node server RAID controller card (slot 3) in the
server node to the base storage enclosure.
The supplied cables are labeled on both ends with the following convention.
• N = Node (server node)
• S = Slot
• P = Port
• J = JBOD
• I = I/O module
