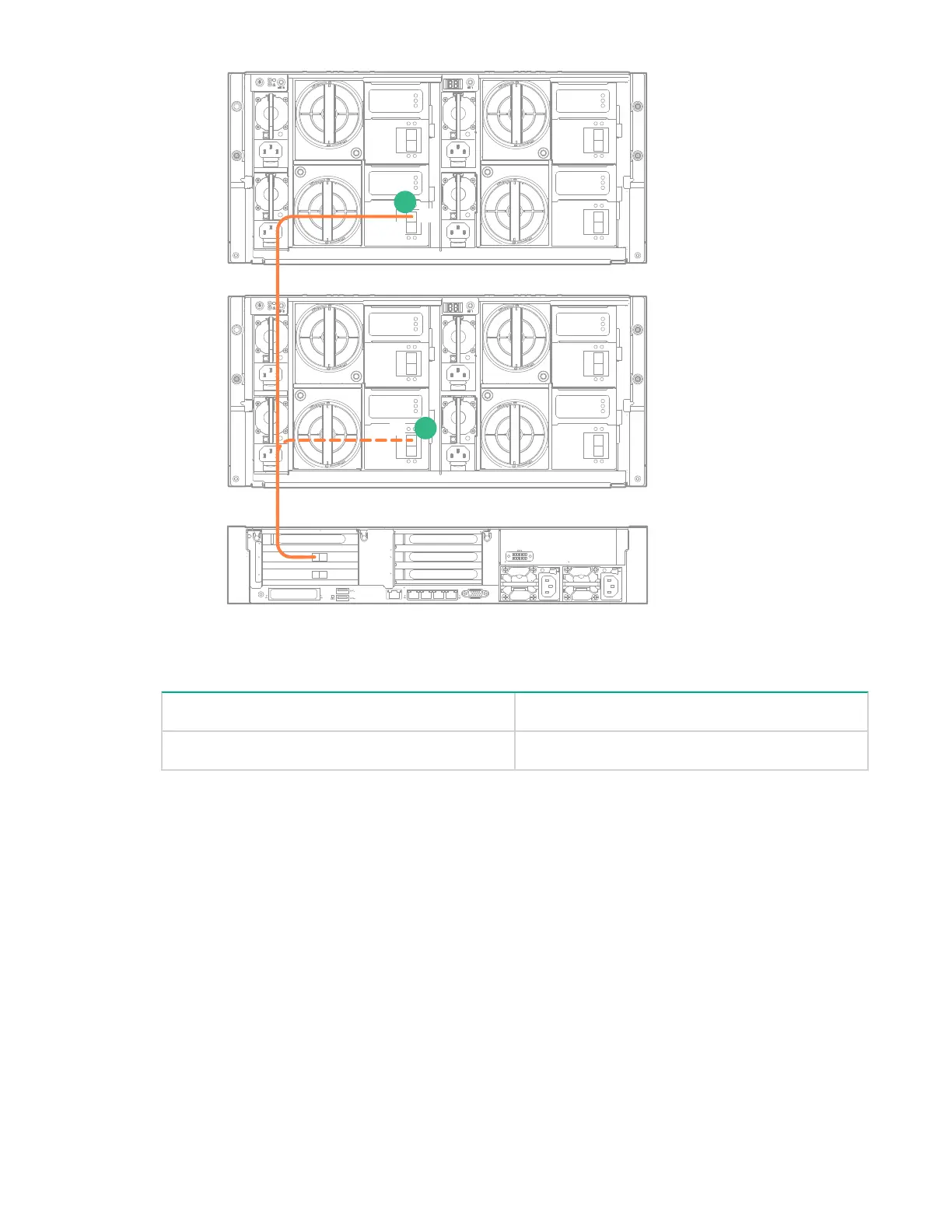

5. Use the second supplied 1.0 m SAS cable to connect the IOM B modules in the two enclosures, as
follows:
From To
Enclosure 1, Drawer 2, IOM B, port 2 Enclosure 3, Drawer 1, IOM B, Port 1
28 Cabling Capacity Upgrade enclosures
