Shenzhen Hpmont Technology Co., Ltd Chapter 4 Electrical Installation
HD5L Series Controller User Manual ―17―
4.3.1 Terminals Description

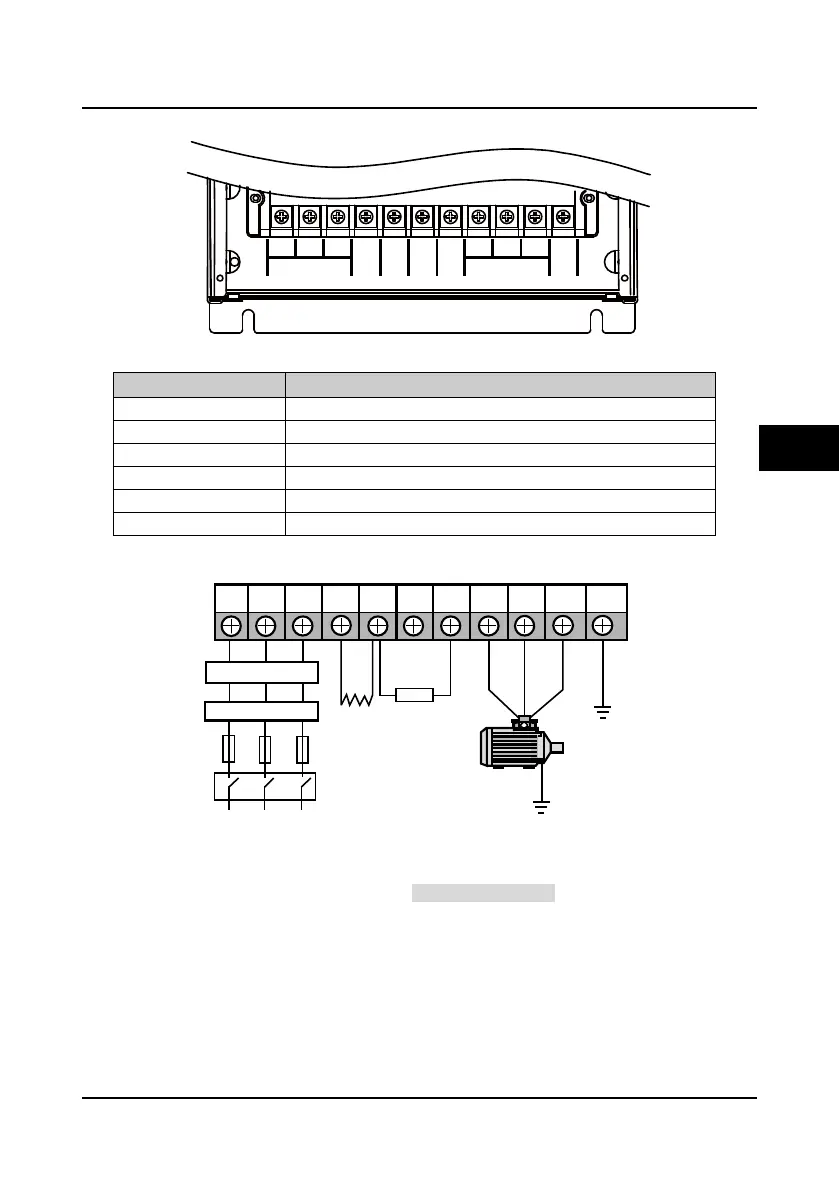

Figure 4-1 Power terminal layout of HD5L controller
Table 4-2 HD5L power terminal function description
Terminal Function Description
L1、L2、L3 Three-phase AC power input terminals
U、V、W Output terminals, connect to three-phase AC motor
P1、(+) DC reactor connection terminals
(+)、(-) DC supply input terminals; DC input terminals of power regenerative unit
(+)、BR Braking resistor connection terminals
PE Earth terminal, connect to the ground
4.3.2 Wiring Terminals
Figure 4-2 HD5L power terminal connection
During trial operation, make sure that the elevator will go up when the UP command is enabled.
If the elevator goes down, set the parameter F00.08 (run direction) to be the reverse value.
POWER
BR
(+) (-)
MOTOR
PE
L3
L1 L2
W
U V
P1
L1 L2 L3 (+) (-) BR U V W PE
P1
Optional EMI filter
Optional AC reactor
Mains supply
Braking resistor
Fuses
DC reactor
(external)
Supply ground
