Chapter 4 Electrical Installation Shenzhen Hpmont Technology Co., Ltd
―36― HD5L Series Controller User Manual
4.6.7 HD-PG9-SC-FD
The serial communication encoder card with FD output supported the Endat protocol is shown as
Figure 4-30 and the size unit is mm.

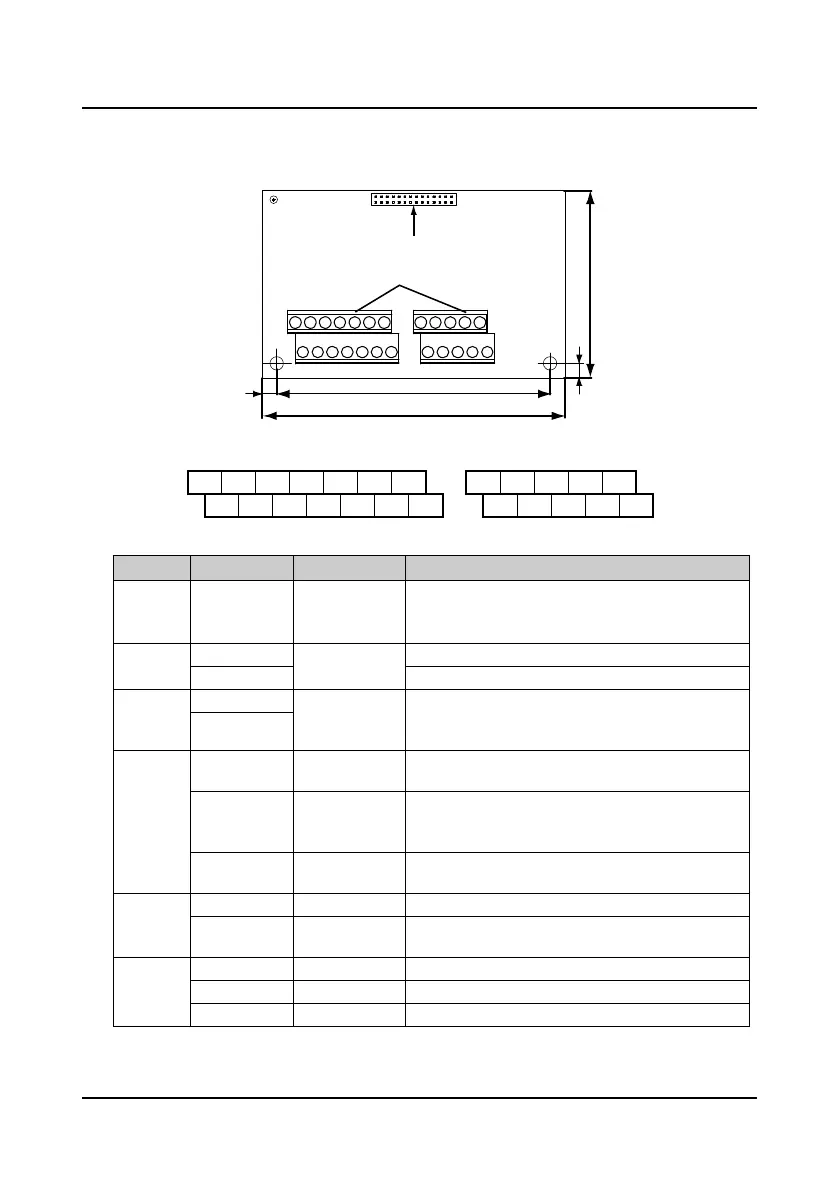

Figure 4-30 Serial communication encoder card with FD output
Terminal description
Figure 4-31 Terminal signal description
Table 4-13 FD output terminal signal description
Item Terminal Name Function Description
Digital input DI7－DI8 Digital input 7－8
Programmable bipolar optional input signal
Input voltage: 0－30VDC
Input impedance: 4.7kΩ
FD output
PAO
FD output
FD output signal A, NPN type OC output
PBO FD output signal B, NPN type OC output
Relay output
R2A/R2B/R2C
Relay contact
output
Programmable output, contact rating: 250VAC/3A or
30VDC/1A
RB,RC: normally closed; RA,RC: normally open
R3A/R3B/R3C
Power
P24
+24V power
supply
Digital input use +24V as supply, maximum output current
is 200mA
SEL
Digital input
common
terminal
Factory settings default SEL and P24 are connected.
Disconnected SEL and P24 when use external power to
drive DI7－DI12
COM
Digital reference
ground
Digital site, isolated from CME
Power
+5V +5V power +5V power supply for PG
GND
+5V reference
ground
+5V reference ground
Signal
Terminal
C+/C- CLK CLK Differential signal C+/C-
D+/D- Data Data Differential signal D+/D-
A+/A-/B+/B- Sin/Cos Signal Differential signal A+/A-/B+/B-
FD description
The FD coefficient of serial communication encoder card with FD output is set by F16.10.
95
To connect control board
Terrninal
105
5
5
65
DI7 DI8 PAO PBO R2A R2B R2C
P24
COM COM
R3A R3BSEL R3C
+5V C+ D+ A+ B+
GND C-
D- A- B-
