HTP EFTC-140W Installation & Startup

81
LP-520 REV. 5.1.17

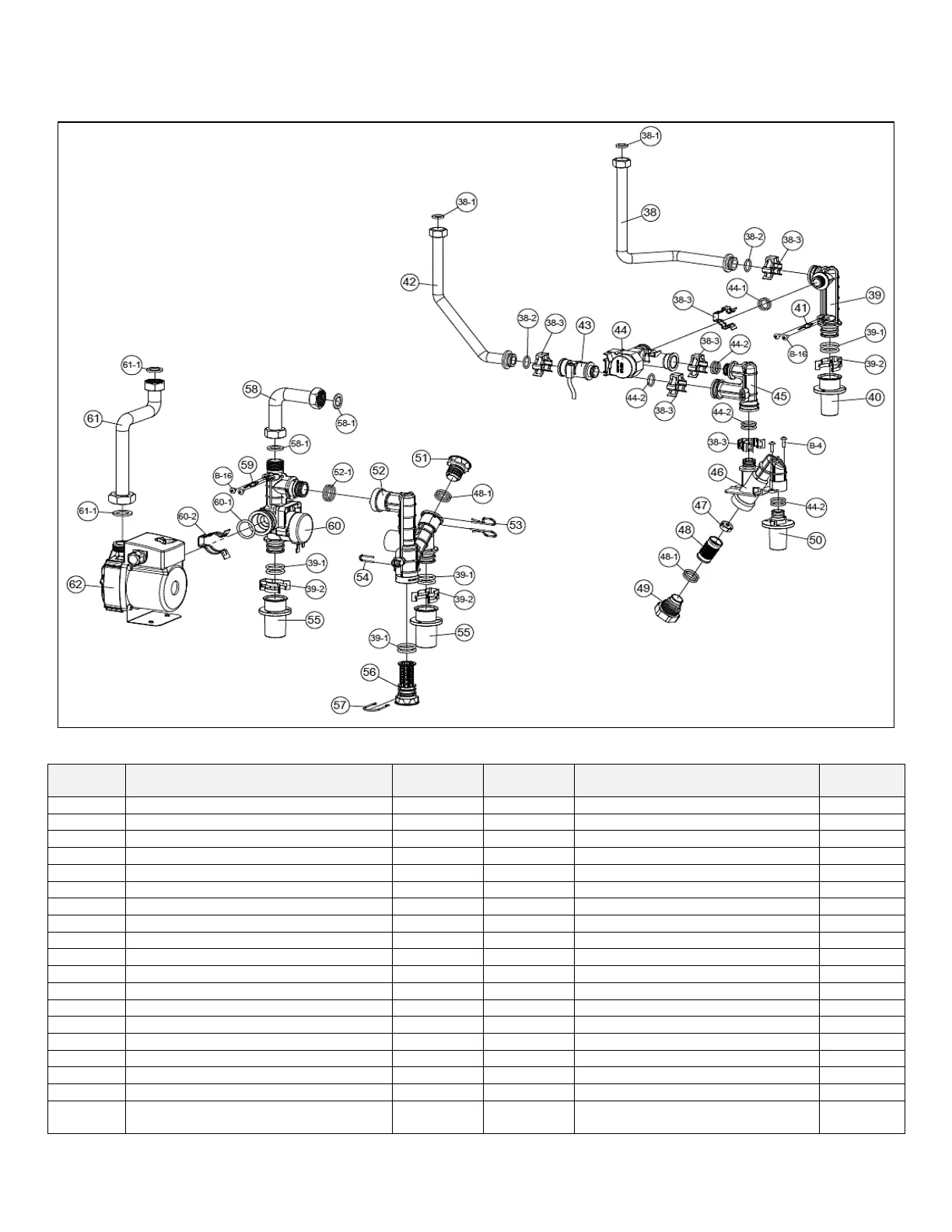

Figure 63 – Water Piping Replacement Parts – 199W Models
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
38
DHW Outlet Pipe
7855P-275
49
DHW Inlet Block Cap
7855P-283
38-1
¾” Pipe Gasket
7855P-073
50
DHW Inlet Adapter
7855P-203
38-2
P-18 O-Ring
7855P-047
51
CH Block Cap
7855P-283
38-3
½” Pipe Clip
7855P-246
52
CH Return Block With Filter
7855P-248
39
DHW Inner Block
7855P-251
52-2
P22 O-Ring
7855P-276
39-1
P22A O-Ring
7855P-276
53
CH Return Block With Filter Clips
7855P-284
39-2
Pipe Adapter Clip
7855P-277
54
Pressure Gauge Clip
7855P-285
40
DHW Outlet Adapter
7855P-225
55
CH Return Adapter
7855P-227
41
DHW Temperature Sensor
7855P-094
56
Filter for CH Return Block
7855P-265
42
DHW Inlet Pipe
7855P-241
57
CH Filter Clip
7855P-286
43
DHW Flow Sensor
7855P-083
58
CH Return Pipe
7855P-287
44
Mixing Valve
7855P-043
58-1
3/4" Pipe Gasket
7855P-073
44-1
Flow Sensor Clip
7855P-278
59
CH Return Temperature Sensor
7855P-097
44-2
P15 O-Ring
7855P-044
60
3 Way Valve Assembly
7855P-247
45
DHW Outer Block
7855P-259
60-1
P25 O-Ring
7855P-288
46
DHW Inlet Filter Block
7855P-279
60-2
Pump Clips
7855P-263
47
Flow Restrictor
7855P-280
61
CH Supply Lower Pipe
7855P-290
48
DHW Inlet Filter
7855P-281
61-1
3/4" Pipe Gasket
7855P-073
48-1
P20 O-Ring
7855P-282
62
Internal Grundfos Pump / DHW
Storage Pump
7855P-456
Table 39 – Water Piping Replacement Parts – 199W Models
