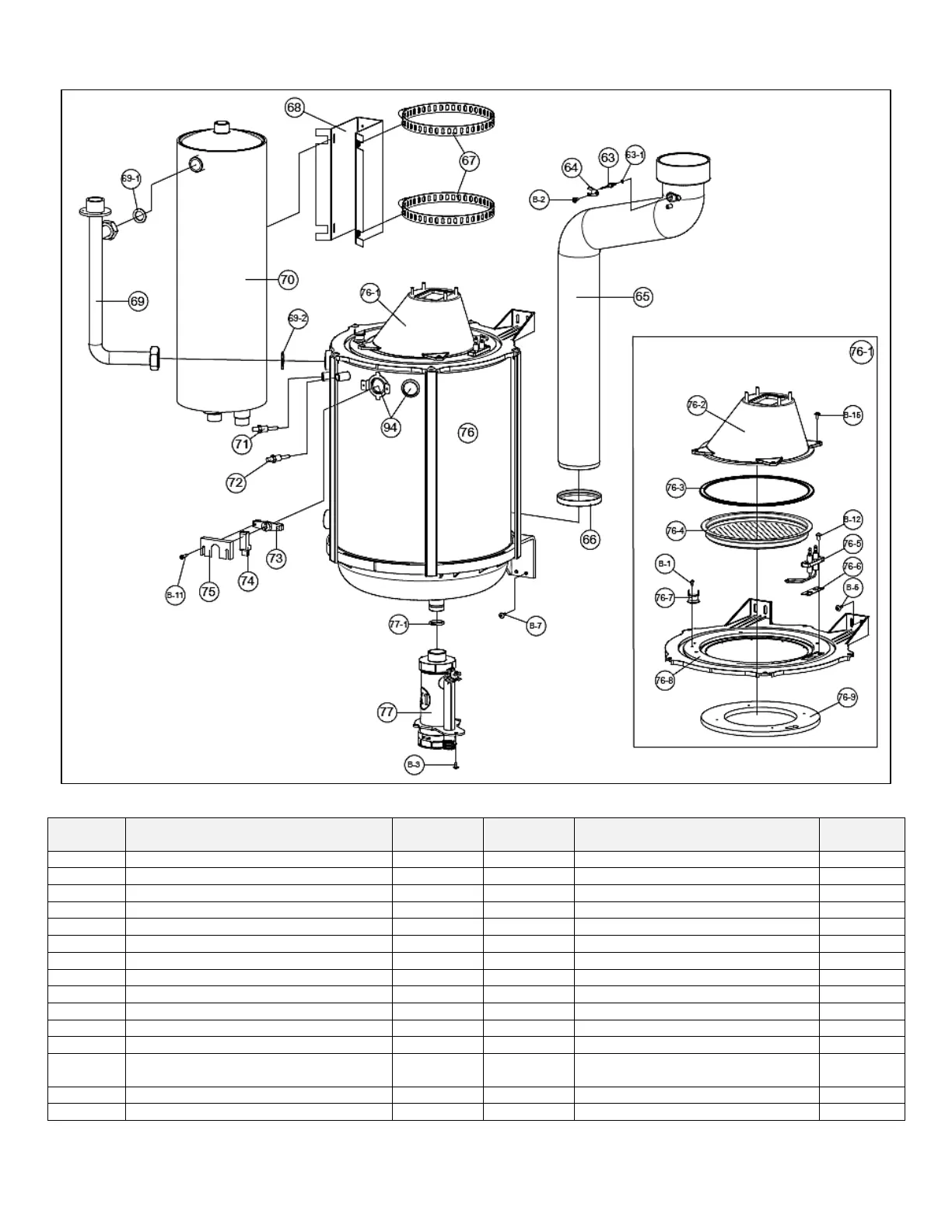

Figure 64 – Heat Exchanger Replacement Parts – 199W Models
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
63
Exhaust Temperature Sensor
7855P-092
75
Flame Sensor Cover
7855P-357
63-1
Exhaust Temperature Sensor O-Ring
7855P-092
76
Heat Exchanger Assembly
7855P-416
64
Exhaust Temperature Sensor Clip
7855P-349
76-1
Burner Body Assembly
7855P-417
65
Exhaust Pipe Assembly
7855P-415
76-2
Burner Body
7855P-606
66
Exhaust Pipe Gasket
7855P-418
76-3
Burner Gasket
7855P-419
67
Storage Tank Clamp
7855P-291
76-4
Ceramic Fiber Burner
7855P-420
68
Storage Tank Bracket
7855P-292
76-5
Ignition Rod
7855P-607
69
CH Supply Pipe
7855P-293
76-6
Igniter Gasket
7855P-252
69-1
3/4" CH Supply Pipe Gasket
7855P-073
76-7
Burner Overheat Switch
7855P-066
69-2
1" CH Supply Pipe Gasket
7855P-074
76-8
Heat Exchanger Top
7855P-619
70
Storage Tank
7855P-294
76-9
Burner Refractory
7855P-612
71
CH Supply Temperature Sensor
7855P-030
77
Condensate Trap Assembly
7855P-605
72
Water Level Detection Sensor
(Low Water Cutoff)
7855P-029
77-1
Condensate Trap O-Ring (P22A)
7855P-276
73
Flame Sensor Bracket
7855P-356
94
Sight Glass Assembly
7855P-401
74
Flame Sensor
7855P-031
Table 40 – Heat Exchanger Replacement Parts – 199W Models
