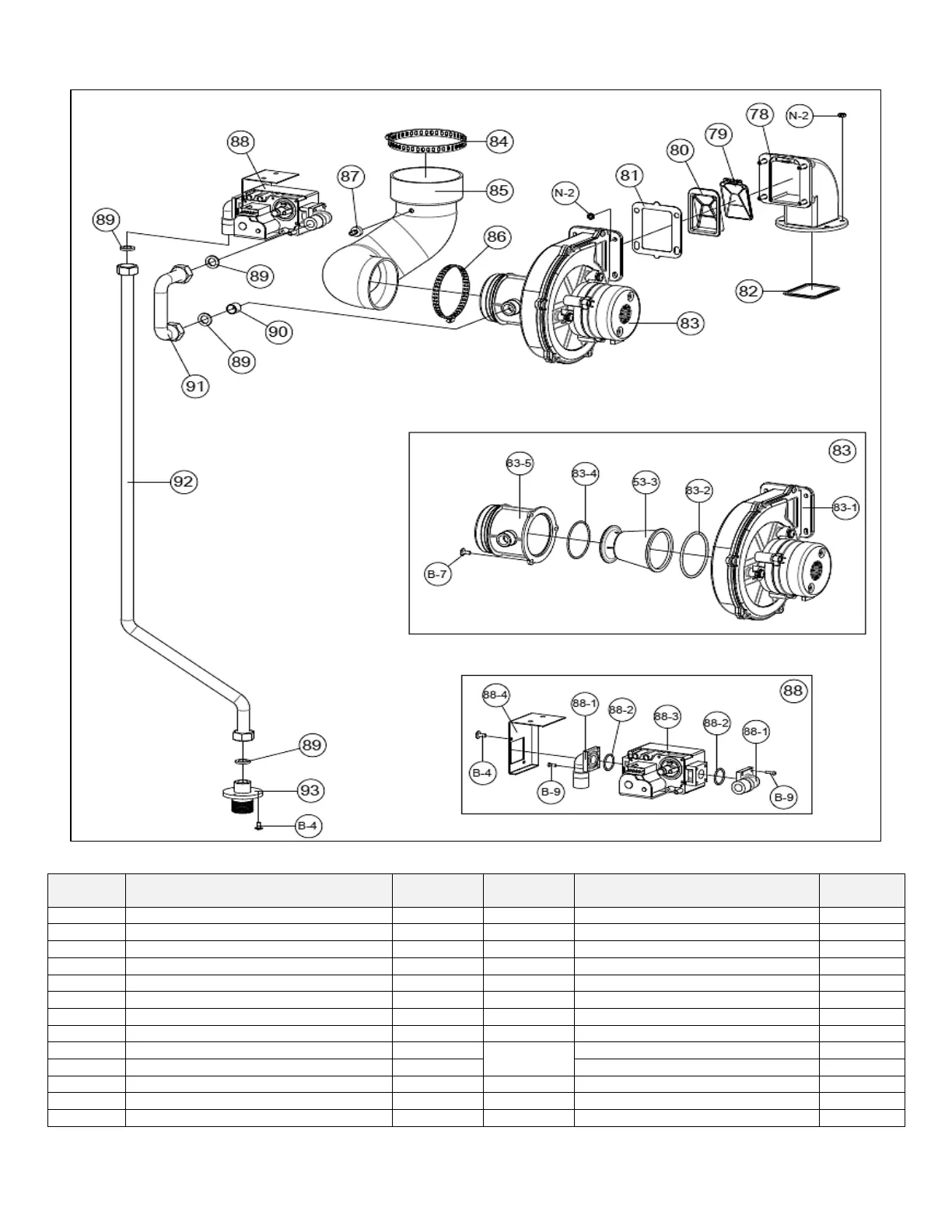

Figure 65 – Combustion System Replacement Parts – 199W Models
NUMBER
DESCRIPTION
PART
NUMBER
NUMBER
DESCRIPTION
PART
NUMBER
78
Burner Inlet Chanel (with Damper)
7855P-424
86
Air Intake Hose Bottom Clamp
7855P-429
79
Air Damper
7855P-618
87
APS Hose Fitting
7855P-375
80
Air Damper Guide
7855P-369
88
Gas Valve Assembly
7855P-431
81
Fan Outlet Gasket
7855P-425
88-1
Gas Valve Outlet Adapter
7855P-232
82
Burner Inlet Chanel Gasket
7855P-426
88-2
Gas Valve O-Ring
7855P-076
83
Fan and Mixer Assembly
7855P-427
88-3
Gas Valve
7855P-034
83-1
Fan
7855P-025
88-4
Gas Valve Bracket
7855P-436
83-2
Fan O-Ring
7855P-371
89
1/2" Gas Pipe Gasket
7855P-221
83-3
Air-Gas Mixer (Inner Part)
7855P-609
90
Gas Orifice (NG) 8.3 mm
7855P-610
83-4
Air-Gas Mixer Gasket
7855P-428
Gas Orifice (LP) 6.3 mm
7855P-435
83-5
Air-Gas Mixer (Outer Part)
7855P-608
91
Gas Pipe (to Mixer)
7855P-432
84
Air Intake Hose Top Clamp
7855P-429
92
Gas Pipe (to Gas Valve)
7855P-295
85
Air Intake Hose
7855P-430
93
Gas Inlet Adapter ¾”
7855P-382
Table 41 – Combustion System Replacement Parts – 199W Models
